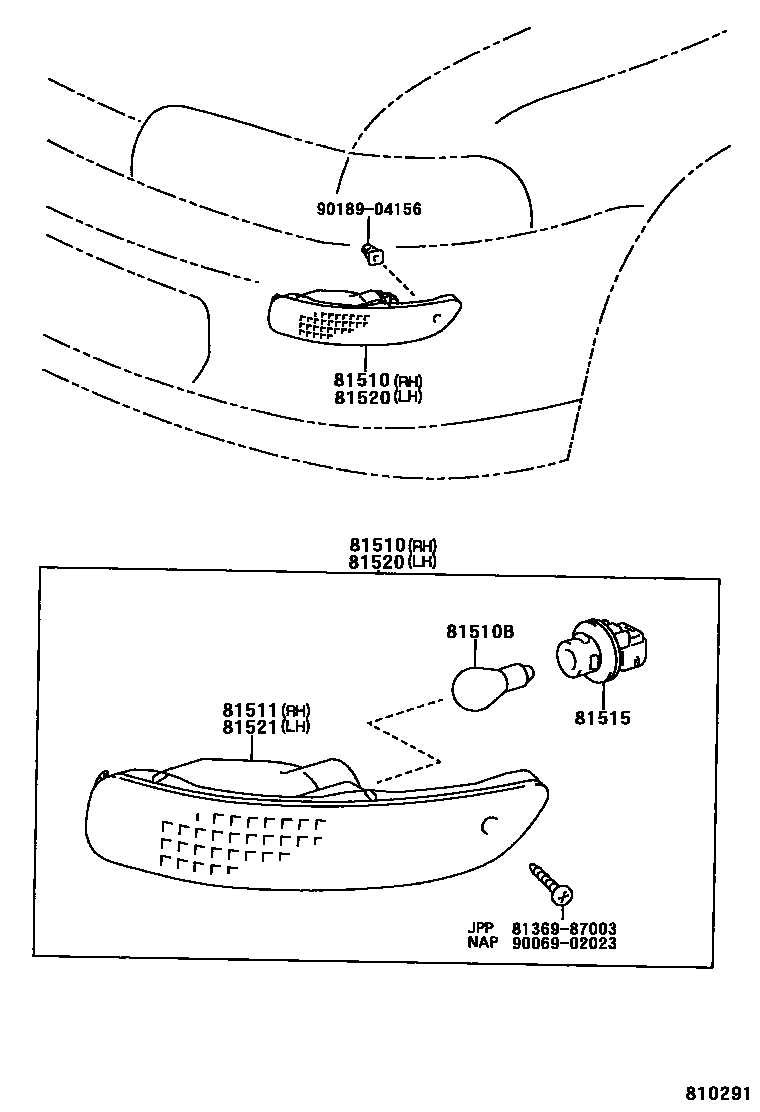

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-12720iAE10#..JPP199206

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11270×2iAE10#..JPP199206

12V 27W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-12720iAE10#..JPP199206

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main90075-99078×2iAE10#..JPP199211-199503

main90075-99092×2iAE10#..JPP199206-199211

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-12700iAE10#..JPP199206

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-12700iAE10#..JPP199206

8136987003COVER, SPOT LAMP

main81369-87003

9006902023

main90069-02023

9018904156

main90189-04156

9 parts on this diagram · 1 diagram in section
