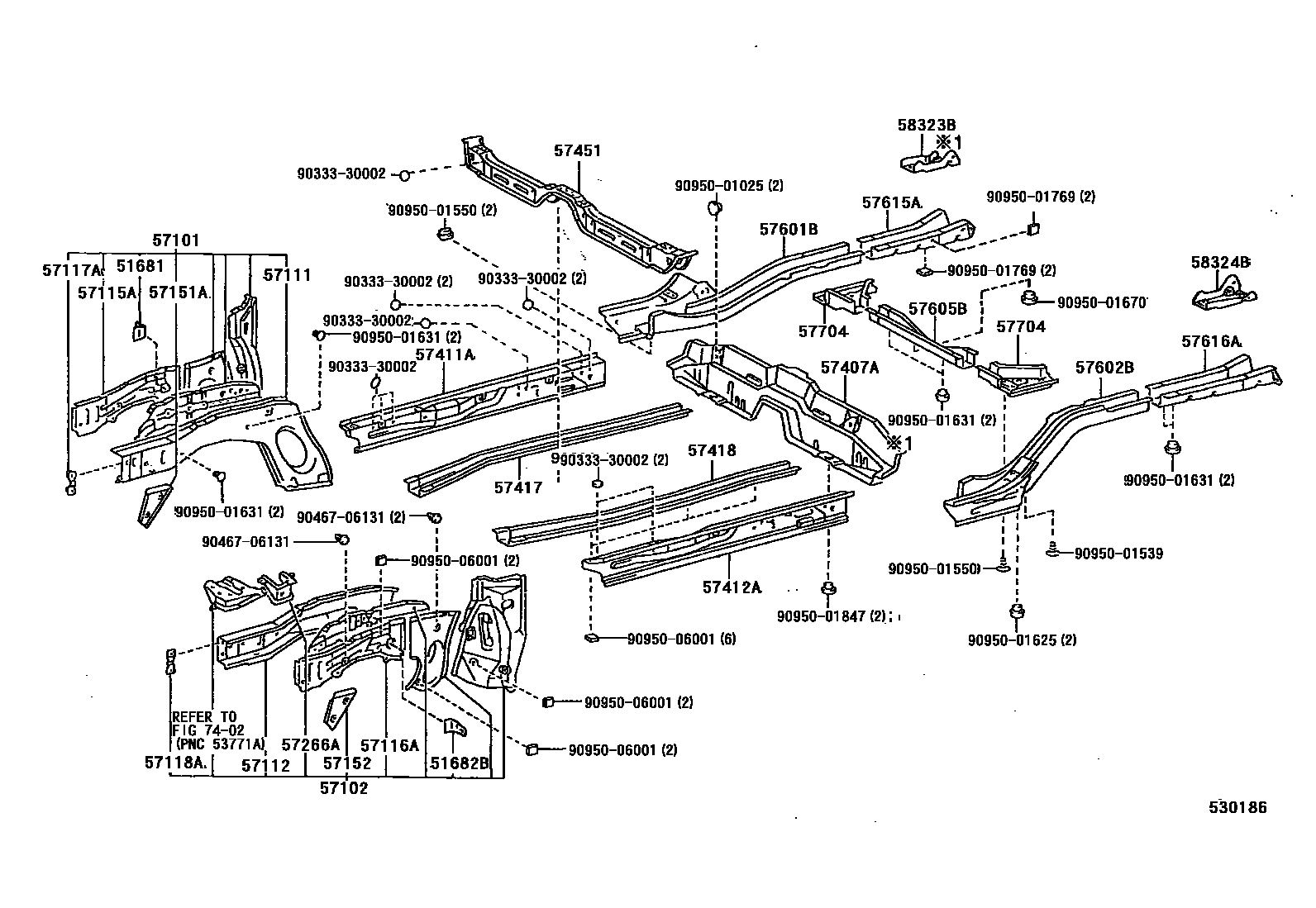

FLOOR SIDE MEMBER

0001 1 0002 1

51681BRACKET, FLEXIBLE HOSE

main51681-12050iAE10#..JPP199206

51682BBRACKET, FLEXIBLE HOSE, LH

main51682-12060iAE10#..JPP199206

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-12470iAE10#..JPP199206-199505

main57101-12471iAE10#..JPP199505

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-12430iAE10#..JPP199206-199505

main57102-12431iAE10#..JPP199505

57111MEMBER, FRONT SIDE, RH

main57111-12200iAE10#..JPP199206-199505

main57111-12201iAE10#..JPP199505

57112MEMBER, FRONT SIDE, LH

main57112-12140iAE10#..JPP199206-199505

main57112-12141iAE10#..JPP199505-199701

main57112-12142iAE10#..JPP199701

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-12060iAE10#..JPP199206

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-12060iAE10#..JPP199206

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57107-12080iAE10#..JPP199206-199310

main57125-12070iAE10#..JPP199310

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57108-12100iAE10#..JPP199206-199308

main57125-12070iAE10#..JPP199308

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-12100iAE10#..JPP199206

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-12070iAE10#..JPP199206

57266ABRACKET, ENGINE MOUNTING, LH

main57208-12100iAE10#..JPP199206-199505

main57208-12120iAE10#..JPP199505-199701

main57208-12121iAE10#..JPP199701

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-12040iAE10#..JPP199206

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-12460iAE10#..JPP199206

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-12460iAE10#..JPP199206

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-12100iAE10#..JPP199206

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-12060iAE10#..JPP199206

57451MEMBER, FRONT FLOOR CROSS

main57451-12130iAE10#..JPP199206-199505

main57451-12131iAE10#..JPP199505

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-12923iAE10#..JPP199206-199508

main57601-12924iAE10#..JPP199508

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-12926iAE10#..JPP199206

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-12130iAE10#..JPP199206-199305

main57605-12150iAE10#..JPP199305

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-12110iAE10#..JPP..SED199206

main57615-13030iAE102..JPP..WG199206

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-12120iAE10#..JPP..SED199206

main57616-13030iAE102..JPP..WG199206

57704SUPPORT SUB-ASSY, REAR SUSPENSION SPRING

main57695-12030iAE10#..JPP199305

RH

main57696-12030iAE10#..JPP199305

LH

main57703-12060iAE10#..JPP199206-199305

RH

main57704-12080iAE10#..JPP199206-199305

LH

58323BREINFORCE, REAR BUMPER ARM SUPPORT, RH

main57803-12060iAE10#..JPP199206

58324BREINFORCE, REAR BUMPER ARM SUPPORT, LH

main58324-12070iAE10#..JPP199206

7402BATTERY CARRIER

→ Go to FIG 74-02

9033330002

main90333-30002

9046706131

main90467-06131

9095001025

main90950-01025

9095001539

main90950-01539

9095001550

main90950-01550

9095001625

main90950-01625

9095001631

main90950-01631

9095001670

main90950-01670

9095001769

main90950-01769

9095001847

main90950-01847

9095006001

main90950-06001

39 parts on this diagram · 2 diagrams in section
