Toyota COROLLA JPP151 — AIR CLEANER

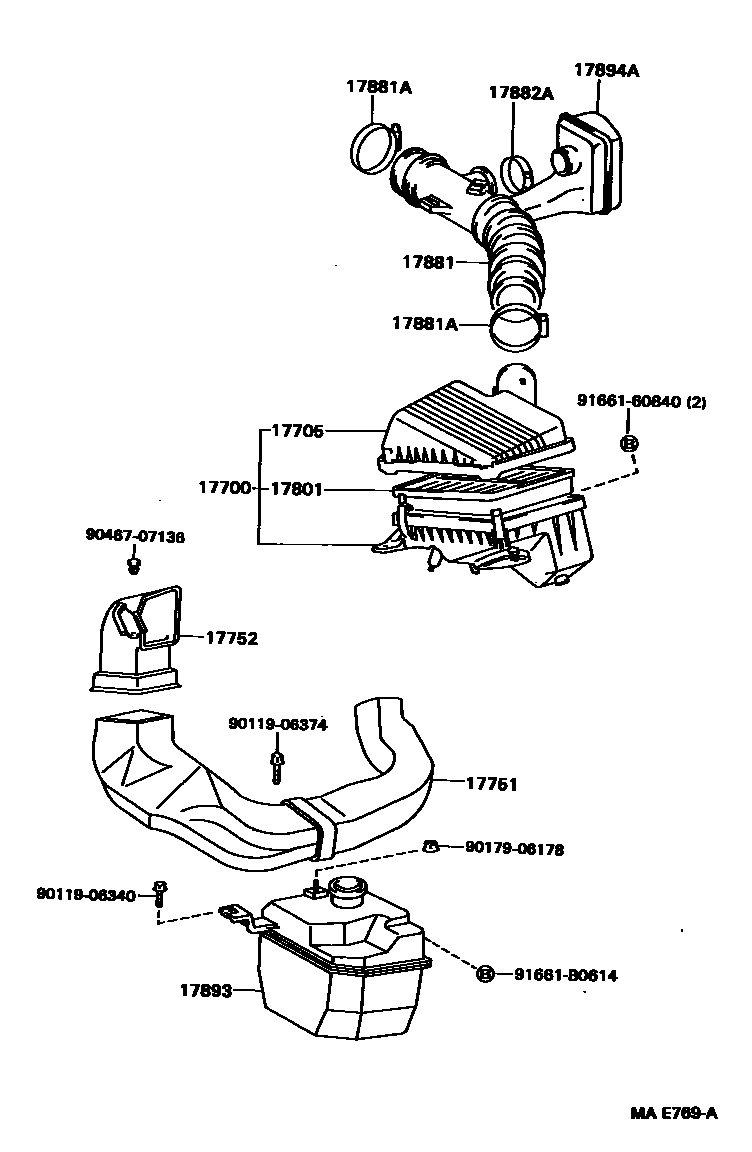

Parts diagram

17700CLEANER ASSY, AIR

17705CAP SUB-ASSY, AIR CLEANER

17751INLET, AIR CLEANER, NO.1

17752INLET, AIR CLEANER, NO.2

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

17881HOSE, AIR CLEANER, NO.1

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

17893RESONATOR, INTAKE AIR

17894ARESONATOR, INTAKE AIR, NO.2

9011906340

9011906374

9017906178

9046707136

9166160840

91661B0614

16 parts on this diagram · 2 diagrams in section

AIR CLEANER for Toyota COROLLA JPP151

This section contains 22 genuine Toyota parts for the AIR CLEANER system of the Toyota COROLLA JPP151. Key components include: CLEANER ASSY, AIR, CAP SUB-ASSY, AIR CLEANER, INLET, AIR CLEANER, NO.1, INLET, AIR CLEANER, NO.2, ELEMENT SUB-ASSY, AIR CLEANER FILTER.
