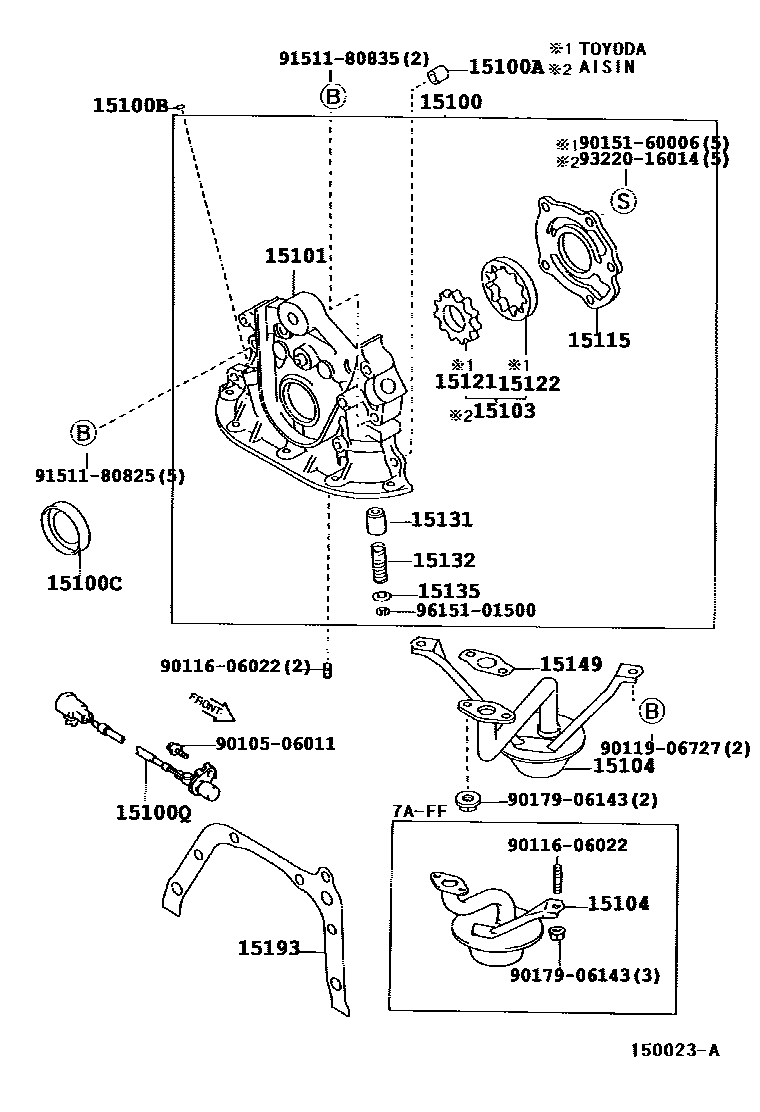

ENGINE OIL PUMP

15100PUMP ASSY, OIL

main15100-15060i4AFE..AE101..JPP199206-199508

main15100-15080i4AFE..AE101..JPP199508-199704

main15100-16040i7AFE..AE102..JPP199206-199408

main15100-16070i7AFE..AE102..JPP199408-199704

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021×2i4AFE,7AFE..AE10#..JPP199206

15100BRING, O(FOR OIL PUMP)

main96721-19010i4AFE,7AFE..AE10#..JPP199206

15100CSEAL(FOR OIL PUMP)

main90311-32018i4AFE,7AFE..AE10#..JPP199206-199702

main90311-32020i4AFE,7AFE..AE10#..JPP199702-199704

15100QSENSOR, CRANK POSITION

main90919-05011i7AFE..AE102..JPP199408-199508

15101BODY SUB-ASSY, OIL PUMP

main15011-15060i4AFE..AE101..JPP199206-199508

AISIN SEIKI

main15011-15080i4AFE..AE101..JPP199508-199704

main15011-16040i7AFE..AE102..JPP199206-199408

AISIN SEIKI

main15011-16070i7AFE..AE102..JPP199408-199704

main15101-15070i4AFE..AE101..JPP199206-199508

TOYODA KOUKI

main15101-16050i7AFE..AE102..JPP199206-199408

TOYODA KOUKI

15103GEAR SET, OIL PUMP

main15103-15020i4AFE..AE101..JPP199206-199408

main15103-16040i7AFE..AE102..JPP199206-199408

15104STRAINER SUB-ASSY, OIL

main15104-15090i4AFE..AE101..JPP199206

main15104-16040i7AFE..AE102..JPP199206-199408

main15104-16060i7AFE..AE102..JPP199408

15115COVER, OIL PUMP

main15115-15020i4AFE..AE101..JPP; 7AFE..AE102..JPP199408-199508

AISIN SEIKI

main15115-15030i4AFE,7AFE..AE10#..JPP199206-199211

TOYODA KOUKI

main15115-16060i4AFE,7AFE..AE10#..JPP199211-199408

TOYODA KOUKI

15121GEAR, OIL PUMP DRIVE

main15121-15040i4AFE..AE101..JPP199206-199508

main15121-16050i7AFE..AE102..JPP199206-199408

15122GEAR, OIL PUMP DRIVEN

main15122-15040i4AFE..AE101..JPP199206-199508

main15122-16050i7AFE..AE102..JPP199206-199408

15131VALVE, OIL PUMP RELIEF

main15131-15030i4AFE..AE101..JPP199408-199508

TOYODA KOUKI

main15131-24010i4AFE..AE101..JPP; 7AFE..AE102..JPP199408-199508

AISIN SEIKI

15132SPRING, OIL PUMP RELIEF VALVE

main15132-15030i4AFE,7AFE..AE10#..JPP199206-199408

TOYODA KOUKI

main15132-40010i4AFE..AE101..JPP; 7AFE..AE102..JPP199408-199508

AISIN SEIKI

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i4AFE,7AFE..AE10#..JPP199206-199408

AISIN SEIKI

main15135-15030i4AFE..AE101..JPP199408-199508

TOYODA KOUKI

15149GASKET, OIL STRAINER FLANGE

main15149-16010i4AFE,7AFE..AE10#..JPP199206

15193GASKET, OIL PUMP

main15197-15012i4AFE..AE101..JPP199206-199408

main15197-15030i4AFE..AE101..JPP199408

main15197-16010i7AFE..AE102..JPP199206

9010506011

main90105-06011

9011606022

main90116-06022

9011906727

main90119-06727

9015160006

main90151-60006

9017906143

main90179-06143

9151180825

main91511-80825

9151180835

main91511-80835

9322016014

main93220-16014

9615101500

main96151-01500

25 parts on this diagram · 1 diagram in section
