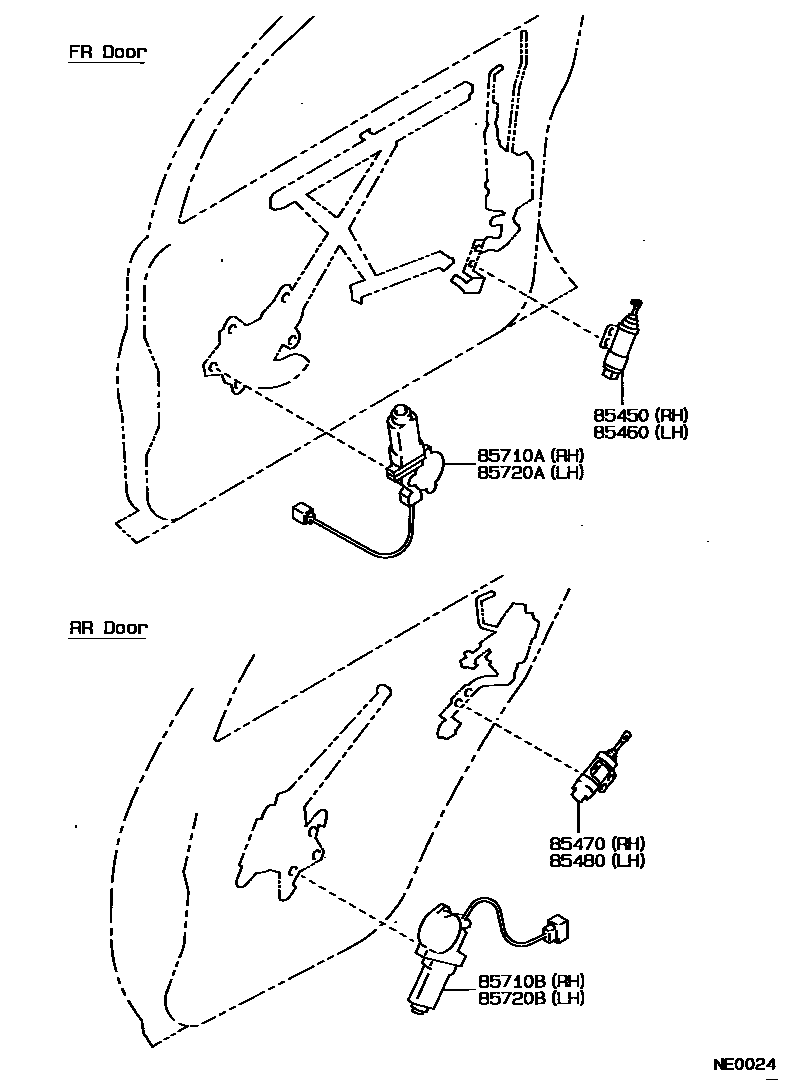

DOOR MOTOR & DOOR SOLENOID

0001 1 0002 1

85450SOLENOID ASSY, DOOR CONTROL, FRONT RH

main85450-12220iAE9#..LE,SR5198708-199206

85460SOLENOID ASSY, DOOR CONTROL, FRONT LH

main85450-12230iAE9#..LE,SR5198708-199206

85470SOLENOID ASSY, DOOR CONTROL, REAR RH

main85450-12260iAE9#..LE,SR5198708-199206

85480SOLENOID ASSY, DOOR CONTROL, REAR LH

main85450-12270iAE9#..LE,SR5198708-199206

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-12060iAE9#..LE,SR5198708-198808

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85710-12080iAE9#..LE,SR5198708-198808

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85720-12060iAE9#..LE,SR5198708-198808

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85720-12070iAE9#..LE,SR5198708-198808

8 parts on this diagram · 2 diagrams in section
