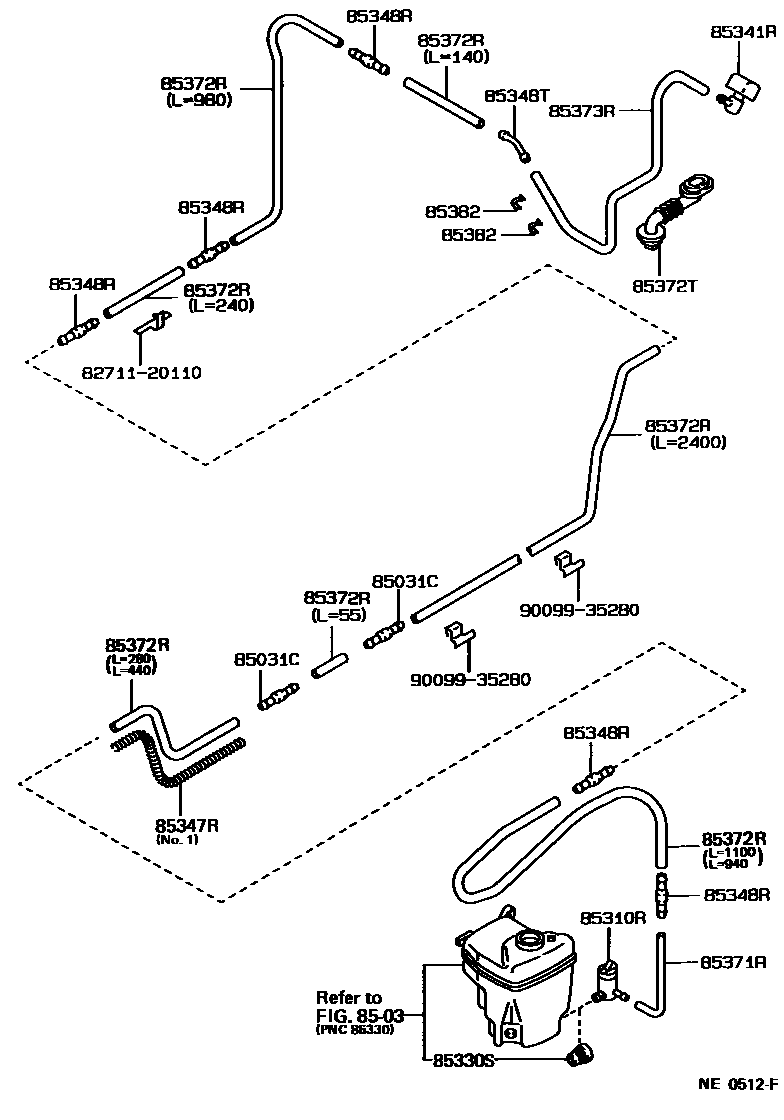

REAR WASHER
8503WINDSHIELD WASHER
85031CVALVE SUB-ASSY, WASHER
85310RMOTOR ASSY, REAR WASHER
85330SBUSH, REAR WASHER JAR
85347RSPRING
NO.2; W(*RW),NO.2
NO.1; W(*RW),NO.1
85348RJOINT, REAR WASHER HOSE, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1000
85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
L=1450
L=120
L=1000
L=1800(*H,L=1100)
L=3300(*H,L=2400)
L=1800(*H,L=280)
L=4985(*H,L=4345)
L=4985(*H,L=3801)
L=1800
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1450
L=1000
85382COVER, REAR WASHER HOSE
8271120110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-20110
9009935280
main90099-35280
15 parts on this diagram · 2 diagrams in section
