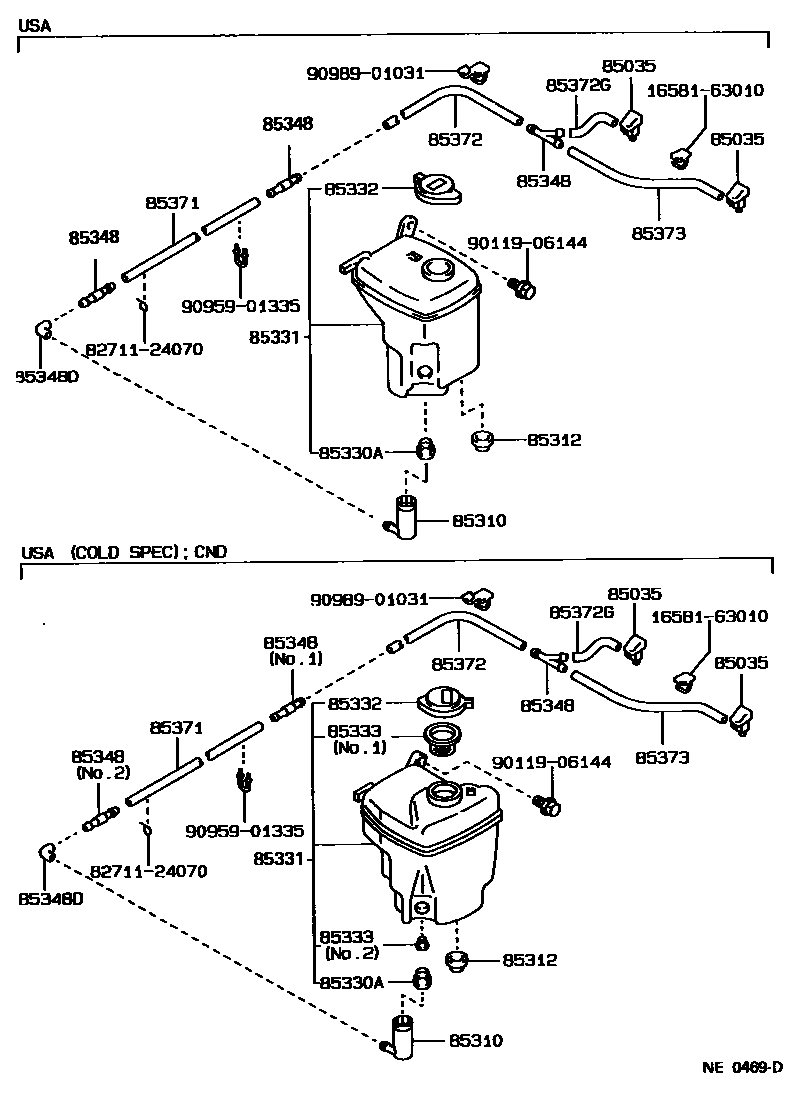

WINDSHIELD WASHER

0001 1 0002 1W(RR WINDOW WIPER)

85035NOZZLE SUB-ASSY, WASHER

main85035-12290iAE9#198708-199206

sub85381-12050

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-14080iAE9#..USA198708-199206

COLD SPEC

sub85330-50020

main85310-16050iAE9#..USA198708-199206

sub85330-60140

85312PACKING, WINDSHIELD WASHER TANK

main85312-12650iAE9#198708-199206

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAE95..WG..USA198708-199009

main90099-32089iAE9#..WG..DX..USA198710-199206

W(*RW)

main90099-32103iAE9#..(DX,LE)..USA198708-199206

COLD SPEC

main90099-32103iAE9#..WG..DX..USA198710-198908

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85331-12650iAE92..USA198708-199206

main85331-12680iAE92..WG..USA198710-199206

W(REAR WINDOW WIPER)

main85331-12680iAE95..WG..USA198802-199009

main85331-12690iAE92..USA..EFI198708-199206

COLD SPEC

main85331-12700iAE92..WG..USA198710-199206

W(REAR WINDOW WIPER)

main85331-12700iAE92..WG..CND198710-199206

COLD SPEC & W(REAR WINDOW WIPER)

main85331-12700iAE95..WG..USA198802-199009

COLD SPEC

85332CAP, WINDSHIELD WASHER JAR

main85332-12320iAE9#198708-198808

main85332-12650iAE92..USA;AE95..SED..USA198808-199206

sub85316-34050

main85332-12660iAE95..SR5;AE9#..(DX,LE)..CND198808-199206

COLD SPEC OR W(REAR WINDOW WIPER)

sub85316-34040

main85332-12660iAE9#..SED..USA198808-199206

COLD SPEC

sub85316-34040

85333FILTER, WINDSHIELD WASHER JAR

main85333-20010iAE9#..USA198708-199206

NO.1

main85333-20020iAE9#..CND198708-199206

NO.2

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iAE9#198708-199206

3-WAY

main85349-14010iAE9#..CND198708-199206

2-WAY,NO.1

sub85334-22470

main85349-14010iAE9#..CND198708-199206

2-WAY,NO.1,COLD SPEC

sub85334-22470

main85349-20010iAE9#..USA198708-199206

2-WAY,NO.2

sub85334-22480

main85349-20010iAE9#..CND198708-199206

2-WAY,NO.2,COLD SPEC

sub85334-22480

main85349-89122iAE95..WG..USA198708-199206

2-WAY

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iAE9#..USA198708-199206

main85355-32110iAE9#..USA198708-199206

COLD SPEC

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33075iAE9#..CND198708-199206

L=1100,COLD SPEC

main90099-33075iAE9#..USA198708-199206

L=1100

main90099-33410iAE9#..USA198708-199206

L=1800(*H,L=1100)

sub90446-07001

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iAE9#198708-198908

L=1450

main90099-33196iAE9#198908-199206

L=1450(*H,L=560)

sub90099-33080

85372GTUBE, RUBBER

main90099-33080iAE9#198708-199206

L=1450

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAE9#198708-199206

L=1450

1658163010CLAMP, HOSE(FOR WATER HOSE)

main16581-63010

8271124070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24070

9011906144

main90119-06144

9095901335

main90959-01335

9098901031

main90989-01031

18 parts on this diagram · 2 diagrams in section
