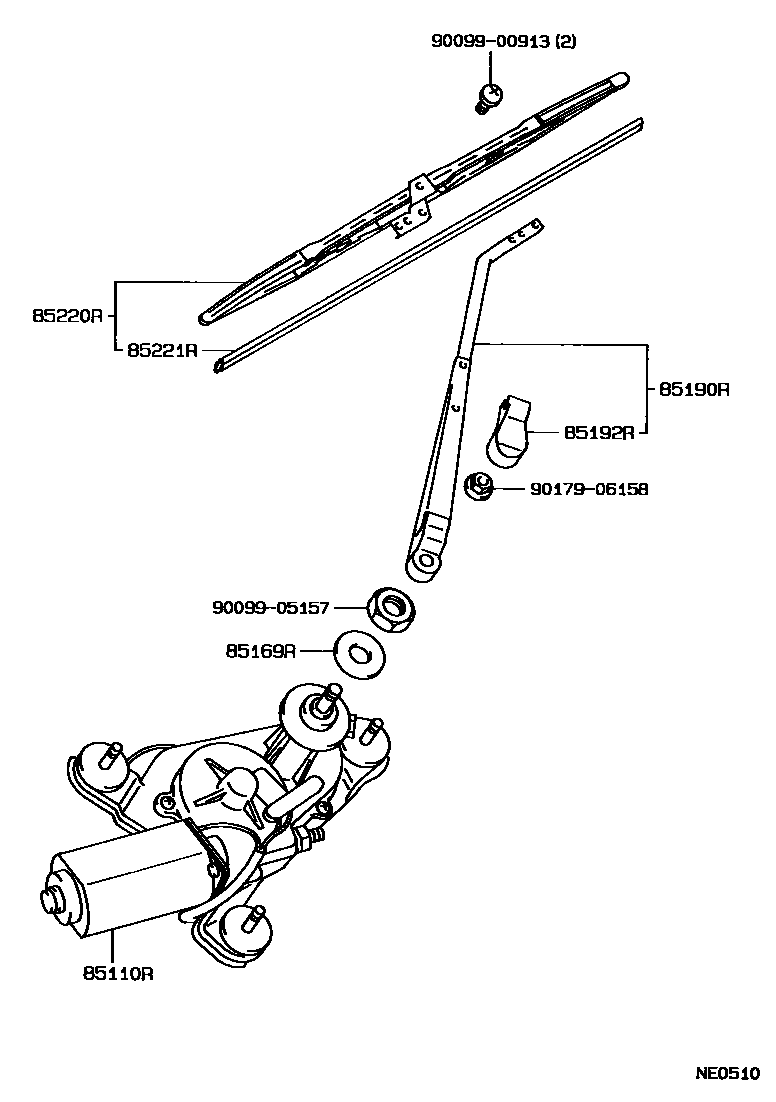

REAR WIPER

0001 1 0002 1

85110RMOTOR ASSY, REAR WIPER

main85110-12470iAE95..WG198802-199009

main85110-13050iAE92..WG198710-199206

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-16150iAE92..WG198710-199206

main90210-28002iAE95..WG198802-199009

85190RARM ASSY, REAR WIPER

main85190-12870iAE95..WG198802-198908

sub85190-12H00

main85190-13070iAE92..WG198710-198907

sub85190-13071

main85190-13071iAE92..WG198907-199206

main85190-1A060iAE95..WG198908-198911

sub85190-1A061

main85190-1A061iAE95..WG198911-199009

85192RCOVER, REAR WIPER ARM

main85192-12870iAE95..WG198802-198906

main85192-13060iAE92..WG198710-199206

85220RBLADE ASSY, REAR WIPER

main85220-22530iAE95..WG198908-198911

sub85220-22531

main85220-22531iAE95..WG198911-199009

sub85242-23010

main85220-22620iAE92..WG198710-198907

sub85220-22621

main85220-22621iAE92..WG198907-199206

main85220-22640iAE95..WG198802-198908

sub85190-12H00

85221RBLADE, REAR WIPER

main85221-12160iAE95..WG198802-198906

main85221-13010iAE92..WG198710-199206

sub85214-12H90

main85221-16070iAE95..WG198906-198908

sub85214-12H90

9009900913

main90099-00913

9009905157

main90099-05157

9017906158

main90179-06158

9 parts on this diagram · 2 diagrams in section
