WIRING & CLAMP

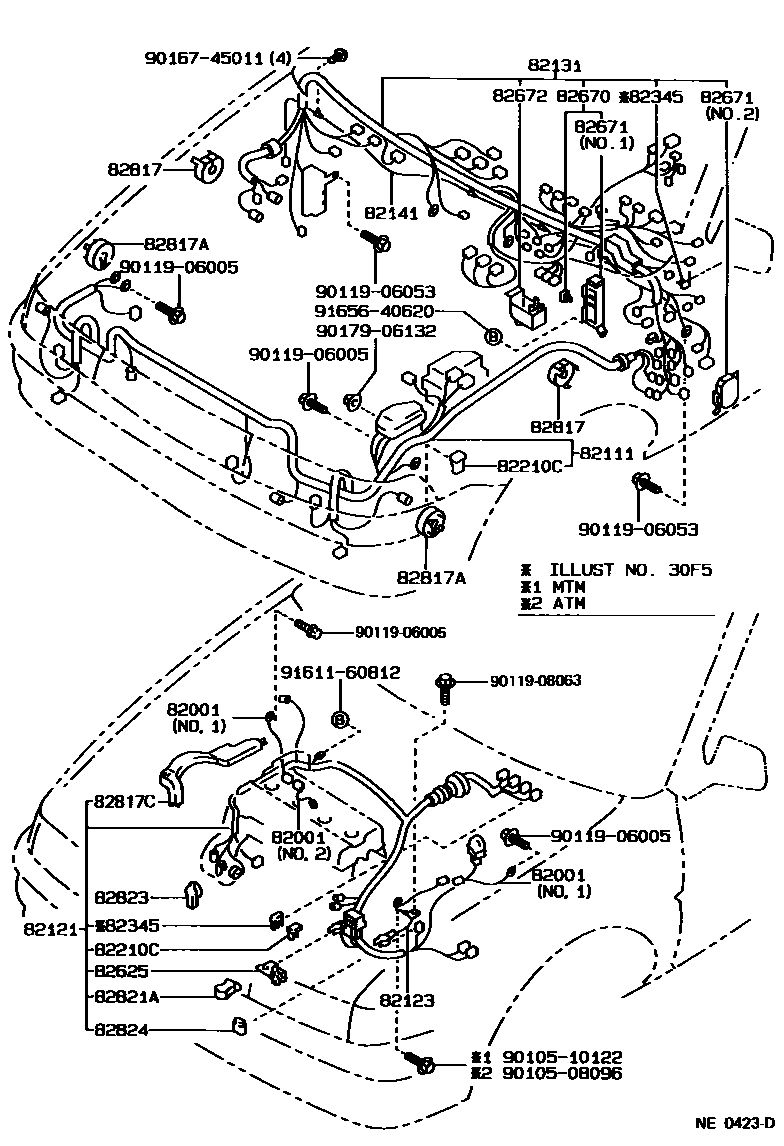

Parts diagram
82001CABLE, BOND, NO.1
main90980-07206×2i198708-199206
NO.1
main90980-07236i198708-198709
NO.2
main90980-07299i198709-199206
NO.2
82111WIRE, ENGINE ROOM MAIN
main82111-1A230i198708-198908
main82111-1A240i198710-198908
W(CRUISE CONTROL) OR W(*RW)
main82111-1A520i198708-198908
W(ANTI-THEFT DEVICE SYSTEM)
main82111-1A540i198802-198908
main82111-1A620i198908-199008
main82111-1A621i199008-199206
main82111-1A630i198908-199008
W(CRUISE CONTROL)
main82111-1A631i199008-199206
W(CRUISE CONTROL)
main82111-1A640i198908-199008
W(REAR WINDOW WIPER)
main82111-1A641i199008-199009
main82111-1A660i198908-199008
main82111-1A661i199008-199108
main82111-1A662i199108-199206
main82111-1A670i198908-199008
W(CRUISE CONTROL)
main82111-1A671i199008-199108
W(CRUISE CONTROL)
main82111-1A672i199108-199206
W(CRUISE CONTROL)
main82111-1A680i198908-199008
W(REAR WINDOW WIPER)
main82111-1A681i199008-199108
W(REAR WINDOW WIPER)
main82111-1A682i199108-199206
W(REAR WINDOW WIPER)
main82111-1A700i198908-199008
W(ANTI-THEFT DEVICE SYSTEM)
main82111-1A701i199008-199206
W(ANTI-THEFT DEVICE SYSTEM)
82121WIRE, ENGINE
main82121-1A240i198708-198806
main82121-1A241i198806-198908
main82121-1A250i198708-198806
main82121-1A251i198806-198908
main82121-1A260i198708-198806
CALIFORNIA SPEC
main82121-1A261i198806-198908
CALIFORNIA SPEC
main82121-1A270i198708-198806
CALIFORNIA SPEC
main82121-1A271i198806-198908
CALIFORNIA SPEC
main82121-1A790i198802-198808
main82121-1A791i198808-198908
main82121-1A800i198802-198808
main82121-1A801i198808-198908
main82121-1E041i198908-199008
main82121-1E042i199008-199009
main82121-1E043i199009-199206
main82121-1E051i198908-199008
main82121-1E052i199008-199009
main82121-1E053i199009-199206
main82121-1E111i198908-199008
CALIFORNIA SPEC
main82121-1E112i199008-199009
CALIFORNIA SPEC
main82121-1E113i199009-199206
CALIFORNIA SPEC
main82121-1E121i198908-199008
CALIFORNIA SPEC
main82121-1E122i199008-199009
CALIFORNIA SPEC
main82121-1E123i199009-199206
CALIFORNIA SPEC
main82121-1E400i198908-199009
main82121-1E410i198908-199009
82123WIRE, ENGINE, NO.3
main82123-12150i198708-199206
main82123-12170i198708-199206
82131WIRE, COWL
main82131-13180i198710-198806
CALIFORNIA SPEC OR W(*RW); W(REAR WINDOW WIPER)
main82131-13182i198806-198808
CALIFORNIA SPEC OR W(*RW); W(REAR WINDOW WIPER)
main82131-13183i198808-198908
CALIFORNIA SPEC OR W(*RW); W(REAR WINDOW WIPER)
main82131-13190i198710-198806
W(CRUISE CONTROL)
main82131-13192i198806-198808
W(CRUISE CONTROL)
main82131-13193i198808-198908
W(CRUISE CONTROL)
main82131-13210i198710-198806
W(ANTI-THEFT DEVICE STSTEM)
main82131-13212i198806-198808
W(ANTI-THEFT DEVICE STSTEM)
main82131-13213i198808-198908
W(ANTI-SHEFT DEVICE SYSTEM)
main82131-13290i198908-199008
W(REAR WINDOW WIPER)
main82131-13291i199008-199206
W(REAR WINDOW WIPER)
main82131-13340i198908-199008
W(CRUISE CONTROL)
main82131-13341i199008-199206
W(CRUISE CONTROL)
main82131-13350i198908-199008
W(ANTI-THEFT DEVICE SYSTEM)
main82131-13351i199008-199206
W(ANTI-THEFT DEVICE SYSTEM)
main82131-13370i198908-199008
W(REAR WINDOW WIPER)
main82131-13371i199008-199108
W(REAR WINDOW WIPER)
main82131-13372i199108-199206
W(REAR WINDOW WIPER)
main82131-13380i198908-199008
W(CRUISE CONTROL)
main82131-13381i199008-199108
W(CRUISE CONTROL)
main82131-13382i199108-199206
W(CRUISE CONTROL)
main82131-1A730i198708-198805
main82131-1A731i198805-198806
main82131-1A732i198806-198808
main82131-1A733i198808-198908
main82131-1A740i198708-198805
CALIFORNIA SPEC
main82131-1A741i198805-198806
CALIFORNIA SPEC
main82131-1A742i198806-198808
CALIFORNIA SPEC
main82131-1A743i198808-198908
CALIFORNIA SPEC
main82131-1A750i198708-198805
W(CRUISE CONTROL)
main82131-1A751i198805-198806
W(CRUISE CONTROL)
main82131-1A752i198806-198808
W(CRUISE CONTROL)
main82131-1A753i198808-198908
W(CRUISE CONTROL)
main82131-1E360i198708-198805
W(ANTI-THEFT DEVICE SYSTEM)
main82131-1E361i198805-198806
W(ANTI-THEFT DEVICE SYSTEM)
main82131-1E362i198806-198808
W(ANTI-THEFT DEVICE SYSTEM)
main82131-1E363i198808-198908
W(ANTI-THEFT DEVICE SYSTEM)
main82131-1E400i198802-198806
W(*PW & *BDEL)
main82131-1E401i198806-198808
W(*PW & *BDEL)
main82131-1E402i198808-198908
W(*PW & *BDEL)
main82131-1E410i198802-198806
W(CRUISE CONTROL)
main82131-1E411i198806-198808
W(CRUISE CONTROL)
main82131-1E412i198808-198908
W(CRUISE CONTROL)
main82131-1E720i198802-198806
W(BACK DOOR ELECTROMAGNETIC LOCK)
main82131-1E721i198806-198808
W(BACK DOOR ELECTROMAGNETIC LOCK)
main82131-1E722i198808-198908
W(BACK DOOR ELECTROMAGNETIC LOCK)
main82131-1E740i198802-198806
W(*BDEL & CRUISE CONTROL)
main82131-1E741i198806-198808
W(*BDEL & CRUISE CONTROL)
main82131-1E742i198808-198908
W(*BDEL & CRUISE CONTROL)
main82131-1H490i198908-199008
main82131-1H491i199008-199206
main82131-1H500i198908-199008
main82131-1H501i199008-199206
main82131-1H510i198908-199008
W(CRUISE CONTROL)
main82131-1H511i199008-199206
W(CRUISE CONTROL)
main82131-1H520i198908-199009
W(*PW & *BDEL)
main82131-1H530i198908-199009
W(CRUISE CONTROL)
main82131-1H560i198908-199009
W(BACK DOOR ELECTROMAGNETIC LOCK)
main82131-1H570i198908-199009
W(*BDEL & CRUISE CONTROL)
main82131-1H600i198908-199008
main82131-1H601i199008-199108
main82131-1H602i199108-199206
main82131-1H620i198908-199008
W(CRUISE CONTROL)
main82131-1H621i199008-199108
W(CRUISE CONTROL)
main82131-1H622i199108-199206
W(CRUISE CONTROL)
main82131-1H630i198908-199009
W(*PW & *BDEL)
main82131-1H640i198908-199009
W(CRUISE CONTROL)
main82131-1H650i198908-199009
W(BACK DOOR ELECTROMAGNETIC LOCK)
main82131-1H660i198908-199009
W(*BDEL & CRUISE CONTROL)
main82131-1H670i198908-199008
W(ANTI-THEFT DEVICE SYSTEM)
main82131-1H671i199008-199206
W(ANTI-THEFT DEVICE SYSTEM)
82141WIRE, INSTRUMENT PANEL
main82141-12020i198708-198908
main82141-12100i198908-199206
82210CFUSIBLE LINK
main90982-08188i198708-198908
30A,TERM.:FEMALE,PNK
main90982-08189i198802-199206
40A,TERM.:FEMALE,GRN
main90982-08203i198908-198912
80A,TERM.:MALE,BLK
main90982-08223i198710-199206
30A,TERM.:MALE,PNK
main90982-08246i198908-199206
100A,TERM.:MALE,BLUE
82345DIODE
main82345-12050i198908-199206
NO.4
main82345-20050i198708-199206
NO.6
main82345-22051i198802-198908
NO.7
main82345-32020i198708-198908
NO.8
82625TERMINAL, FUSIBLE LINK
main82625-12020i198710-198908
main82625-12060i198802-199206
82670BLOCK ASSY, JUNCTION, NO.1
main82670-12090i198708-198908
82671BLOCK, JUNCTION
main82671-12030i198708-199206
NO.1
main82671-12070i198708-199206
NO.2
82672COVER, JUNKTION BLOCK
main82672-12110i198708-198908
main82672-12111i198908-199206
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-14350×2i198708-199206
82817APROTECTOR, WIRING HARNESS, NO.2
main82817-32010×2i198708-199206
82817CPROTECTOR, WIRING HARNESS, NO.4
main82817-12700i198908-199206
82821ACOVER, CONNECTOR
main82821-12180i198710-198908
main82821-12230i198802-198908
main82821-12260i198802-198908
82823CAP, TERMINAL, NO.1
main82823-22050i198708-199206
82824CONNECTOR, WIRING HARNESS
main82824-32030i198708-199206
9010508096
main90105-08096
9010510122
main90105-10122
9011906005
main90119-06005
9011906053
main90119-06053
9011908063
main90119-08063
9016745011
main90167-45011
9017906132
main90179-06132
9161160812
main91611-60812
9165640620
main91656-40620

27 parts on this diagram · 9 diagrams in section
