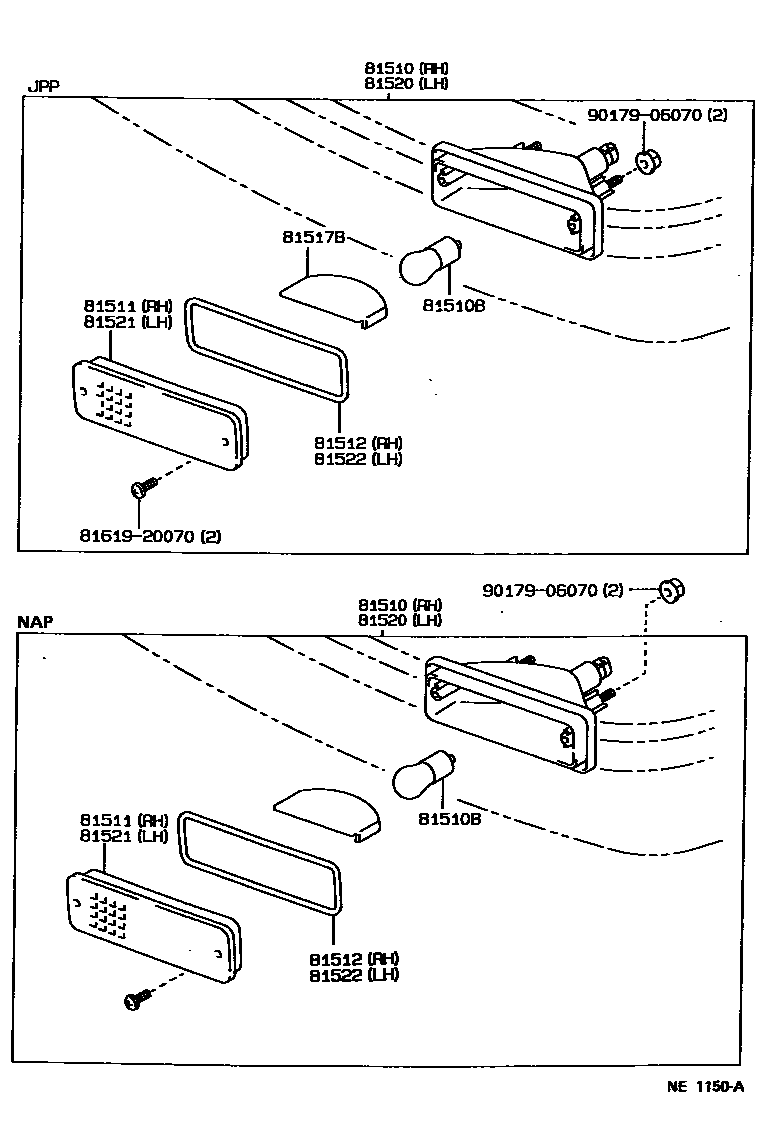

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-80055iAE9#198708-199008

AMBER

main81510-80081iAE92199008-199206

AMBER

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90080-81010×2iAE92199008-199206

12V 27W,AMBER

main99132-11270×2iAE95198708-199206

12V 27W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-12630iAE9#198708-199008

AMBER

main81511-12640iAE92199008-199206

CLEAR

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-12630iAE9#198708-199206

81517BSHADE, FRONT TURN SIGNAL LAMP

main81517-22220×2iAE9#198708-199206

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-80055iAE9#198708-199008

AMBER

main81520-80081iAE92199008-199206

AMBER

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-12510iAE92199008-199206

CLEAR

main81521-12630iAE9#198708-199008

AMBER

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-12630iAE9#198708-199206

8161920070

main81619-20070

9017906070

main90179-06070

10 parts on this diagram · 1 diagram in section
