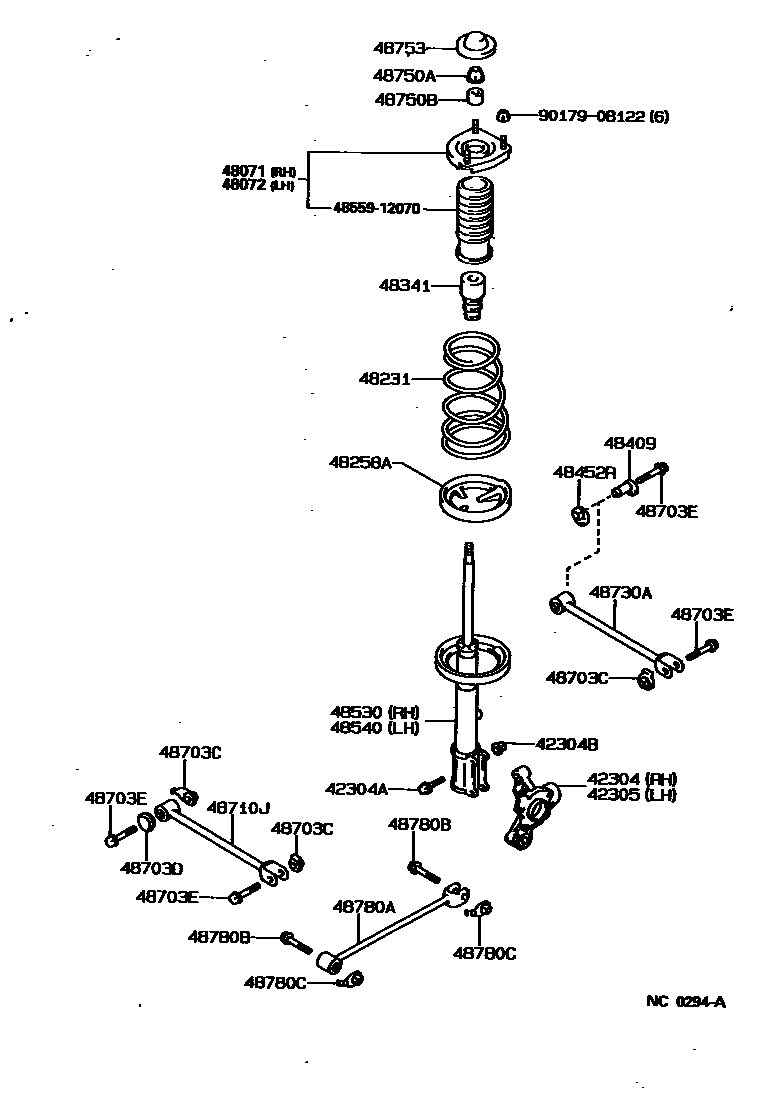

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-12020iAE92198708-199206

42304ABOLT (FOR REAR AXLE CARRIER)

main90105-12102×4iAE92198708-198808

sub90105-12236

42304BNUT (FOR REAR AXLE CARRIER)

main90179-12025×4iAE92198708-198808

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-12020iAE92198708-199206

48071SUPPORT SUB-ASSY, REAR SUSPENSION, RH

main48071-12030iAE92198708-199108

sub48071-01011

main48071-12100iAE92199108-199206

sub48072-12080

48072SUPPORT SUB-ASSY, REAR SUSPENSION, LH

main48072-12030iAE92198708-199108

sub48072-01011

main48072-12100iAE92199108-199206

sub48071-12080

48231SPRING, COIL, REAR

main48231-12890×2iAE92..SED..DX198708-198803

main48231-1A340×2iAE95..WG198802-198908

sub48231-1A320

main48231-1A440×2iAE92..SED..DX198803-198908

main48231-1A470×2iAE92..SED199010-199206

sub48231-2B171

main48231-1A550×2iAE92..LE198708-198803

main48231-1A560×2iAE92..WG198710-198908

main48231-1A610×2iAE95..SED198808-198908

main48231-1A820×4iAE95..SED198908-199008

main48231-1A860×4iAE95..WG198908-199009

main48231-1E540×2iAE92..WG199010-199206

sub48231-32220

48258AINSULATOR, REAR COIL SPRING, LOWER

main48258-12010×2iAE95198802-199009

main48258-12020×2iAE92198708-199206

48341BUMPER, REAR SPRING

main48341-12120×2iAE92198708-199206

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-12040×2iAE92198708-198808

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-32020×2iAE92198708-198808

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-12160iAE92198708-199206

MARK 48530-12160

main48531-80080iAE95..SED198808-198908

MARK 12390 OR 12400

sub48531-80176

main48531-80085iAE95..WG198802-198908

main48531-80099iAE95..SED198908-199008

MARK 48531-12391

sub48531-80177

main48531-80101iAE95..WG198908-199009

sub48531-80437

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80080iAE95..SED198808-198908

MARK 12390 OR 12400

sub48531-80176

main48531-80085iAE95..WG198802-198908

main48531-80099iAE95..SED198908-199008

MARK 48531-12391

sub48531-80177

main48531-80101iAE95..WG198908-199009

sub48531-80437

main48540-12100iAE92198708-199206

MARK 48540-12100

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-12063×2iAE92..EFI198808-199206

BODY SIDE

main90179-12064×4iAE92..EFI198808-199206

CARRIER SIDE

48703DWASHER(FOR REAR SUSPENSION ARM)

main90209-13005×2iAE92198708-198808

48703EBOLT(FOR REAR SUSPENSION ARM)

main90119-12145×2iAE92198708-198711

*12-1.25PX71-34

main90119-12146×6iAE92198708-198711

*12-1.25PX86-30

main90119-12150×2iAE92198711-198808

*12-1.25PX71-34

main90119-12152×6iAE92198711-198808

*12-1.25PX86-26

48710ARM ASSY, UPPER CONTROL

main48710-12140×2iAE95198908-199009

48710JARM ASSY, REAR SUSPENSION, NO.1

main48710-12040×2iAE92198708-199206

48730AARM ASSY, REAR SUSPENSION, NO.2

main48730-12010×2iAE92198708-199206

48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90179-14015×2iAE92198708-198808

48750BCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90387-15012×2iAE92198708-198808

sub90387-15027

48753COVER, REAR SUSPENSION SUPPORT

main48753-12010×2iAE92198708-199206

48780AROD ASSY, STRUT, REAR

main48780-12010×2iAE92198708-199206

sub48780-32060

48780BBOLT(FOR STRUT ROD)

main90119-12146×4iAE92198708-198711

main90119-12152×4iAE92198711-198808

48780CNUT(FOR STRUT ROD)

main90179-12062×2iAE92198708-198808

CARRIER SIDE

main90179-12063×2iAE92198708-198808

BODY SIDE

4855912070COVER, SHOCK ABSORBER, DUST

main48559-12070

9017908122

main90179-08122

27 parts on this diagram · 2 diagrams in section
