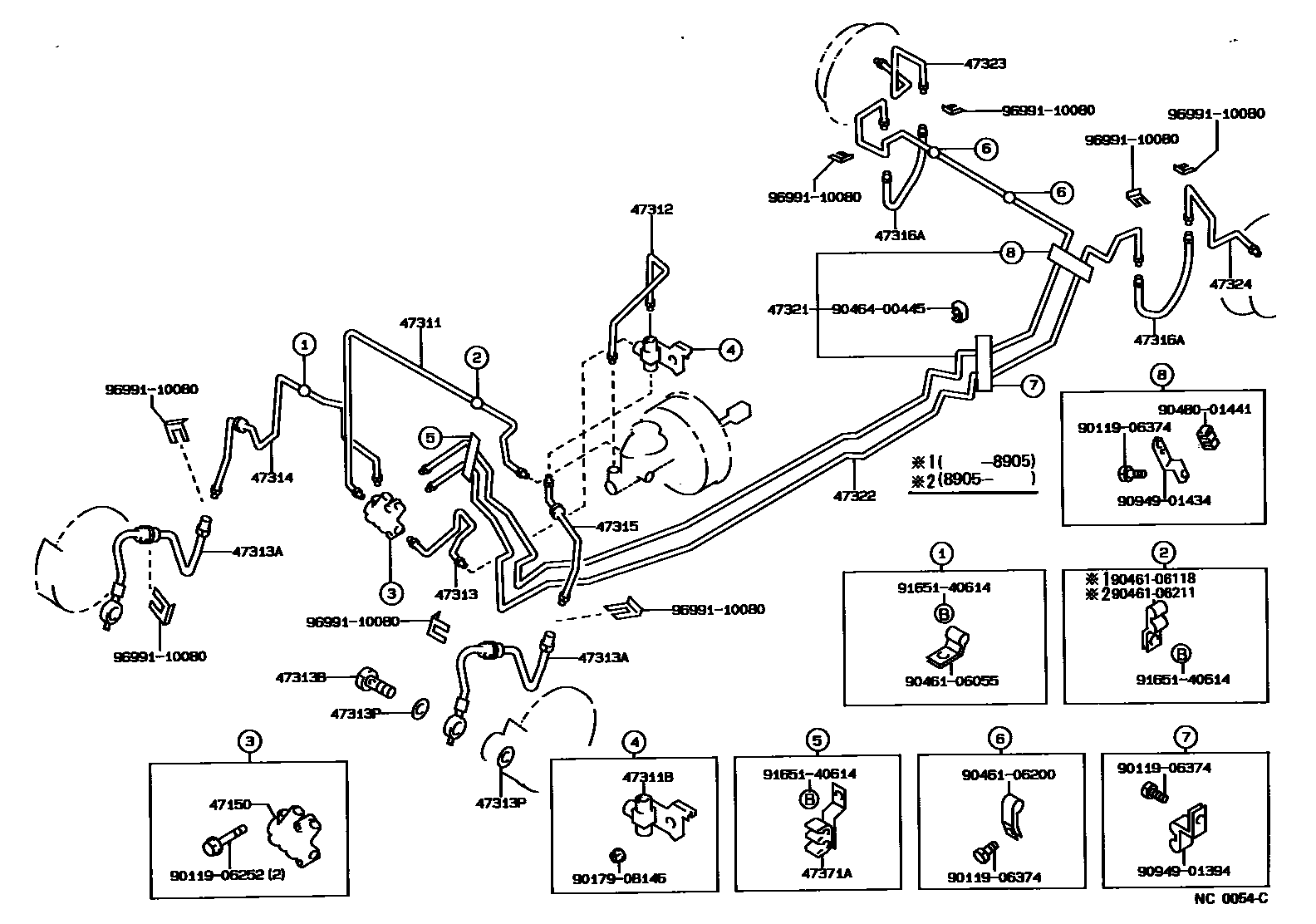

BRAKE TUBE & CLAMP

0001 1 0002 1

47150VALVE ASSY, PROPORTIONING

main47150-12060iAE92198708-198908

main47150-12110iAE9#198908-199206

main47150-16040iAE95198802-198908

47311TUBE, FRONT BRAKE, NO.1

main47311-12390iAE9#198708-199206

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10159iAE9#198908-199206

main90413-10219iAE92;AE95..WG198708-198908

47312TUBE, FRONT BRAKE, NO.2

main47312-12260iAE9#198710-199206

47313TUBE, FRONT BRAKE, NO.3

main47313-12190iAE9#198708-199206

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02532×2iAE9#198708-199206

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iAE9#198708-199206

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iAE9#198708-199206

47314TUBE, FRONT BRAKE, NO.4

main47314-12270iAE9#198708-199206

47315TUBE, FRONT BRAKE, NO.5

main47315-12410iAE9#198708-198908

main47315-12440iAE9#198908-199206

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02533×2iAE92198708-199206

main90947-02558×2iAE95198802-199009

47321TUBE, REAR BRAKE, NO.1

main47321-12050iAE92198708-199206

main47321-12070iAE95198802-199009

47322TUBE, REAR BRAKE, NO.2

main47322-12200iAE92198708-199206

main47322-12240iAE95198802-199009

47323TUBE, REAR BRAKE, NO.3

main47323-12210iAE92198708-199206

main47323-12220iAE95198802-199009

47324TUBE, REAR BRAKE, NO.4

main47324-12170iAE92198708-199206

main47324-12180iAE95198802-199009

47371ACLAMP, BRAKE TUBE, NO.1

main47371-12010iAE9#198708-199206

9011906252

main90119-06252

9011906374

main90119-06374

9017908146

main90179-08146

9046106055

main90461-06055

9046106118

main90461-06118

9046106200

main90461-06200

9046106211

main90461-06211

9046400445

main90464-00445

9048001441

main90480-01441

9094901394

main90949-01394

9094901434

main90949-01434

9165140614

main91651-40614

9699110080

main96991-10080

29 parts on this diagram · 2 diagrams in section
