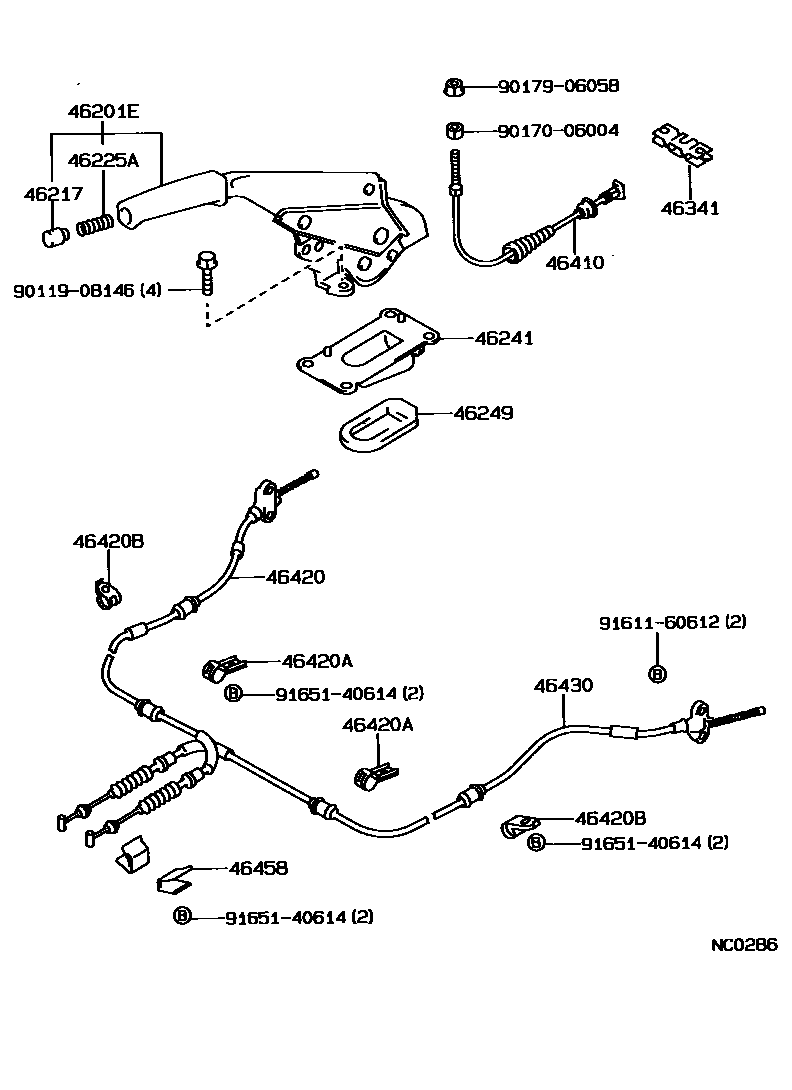

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12100-02iAE92..SED..DX198708-198801

MAROON,TRIM3#

main46201-12100-03iAE92..DX198708-198801

SHADOW GRAY,TRIM1#

main46201-12100-04iAE92..DX198708-198801

DARK BLUE,TRIM8#

main46201-12100-05iAE92..DX198708-198801

DARK BEIGE,TRIM4#

main46201-12101iAE92..SED..DX199008-199206

main46201-12101-03iAE9#..DX,STD198801-199008

SHADOW GRAY,TRIM1#

main46201-12101-06iAE92..STD;AE9#..WG..DX199008-199206

BROWN,TRIM4#

main46201-12101-D0iAE9#..SED..DX198901-198908

MAROON,TRIM3#

main46201-12101-E0iAE9#..DX198809-198908

DARK BEIGE,TRIM4#

main46201-12101-J0iAE9#..DX,STD198901-199008

DARK BLUE,TRIM8#

main46201-12110-02iAE92..LE198708-198801

MAROON,TRIM3#

main46201-12110-03iAE92..LE198708-198801

SHADOW GRAY,TRIM1#

main46201-12110-04iAE92..LE198708-198801

DARK BLUE,TRIM8#

main46201-12110-05iAE92..LE198708-198801

DARK BEIGE,TRIM4#

main46201-12111-03iAE9#..LE,SR5198801-199008

SHADOW GRAY,TRIM1#

main46201-12111-06iAE9#..LE,SR5198908-199206

BROWN,TRIM4#

main46201-12111-D0iAE92..LE198809-199206

MAROON,TRIM3#

main46201-12111-E0iAE9#..LE,SR5198809-198908

DARK BEIGE,TRIM4#

main46201-12111-J0iAE9#..LE,SR5198809-199206

DARK BLUE,TRIM8#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-03iAE9#198801-199008

SHADOW GRAY,TRIM1#

main46217-12020-B2iAE92..SED..DX;AE92..4FC..USA199202-199206

SHADOW GRAY,TRIM1#

main46217-12020-D0iAE9#..SED198801-199206

MAROON,TRIM3#

main46217-12020-E0iAE92..DX..USA; AE95..USA198801-198809

DARK BEIGE,TRIM4#

main46217-12020-E1iAE9#198908-199206

BROWN,TRIM4#

main46217-12020-J0iAE92..LE;AE9#..WG;AE9#..SED..DX..USA198801-198809

DARK BLUE,TRIM8#

main46217-20020-15iAE92198708-198712

BEIGE,TRIM4#

main46217-20020-42iAE92..SED198708-198712

MAROON,TRIM3#

main46217-20020-43iAE92198708-198712

SHADOW GRAY,TRIM1#

main46217-20020-54iAE92198708-198712

DARK BLUE,TRIM8#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iAE9#198708-198811

46241BOOT, PARKING BRAKE LEVER

main46241-12080iAE9#198708-198811

46249SHIELD, PARKING BRAKE HOLE

main46249-32010iAE9#198708-198811

46341EQUALIZER, PARKING BRAKE

main46341-12010iAE92198708-198712

main46341-32010iAE9#198712-198811

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12160iAE92198708-198811

main46410-12190iAE95198802-199009

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12340iAE92..EFI198903-199206

main46420-12371iAE95198908-199009

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90461-12121iAE95198802-199009

LH

main90949-01016×2iAE92198708-198903

main90949-01479iAE95198802-199009

RH

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01015×2iAE92198905-199107

main90949-01746×2iAE92199107-199206

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12240iAE92..EFI198903-199206

main46430-12271×2iAE95198802-198908

46458RETAINER, CABLE

main46458-20020×2iAE9#198708-198906

main46458-50010×2iAE9#198908-199206

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9161160612

main91611-60612

9165140614

main91651-40614

17 parts on this diagram · 1 diagram in section
