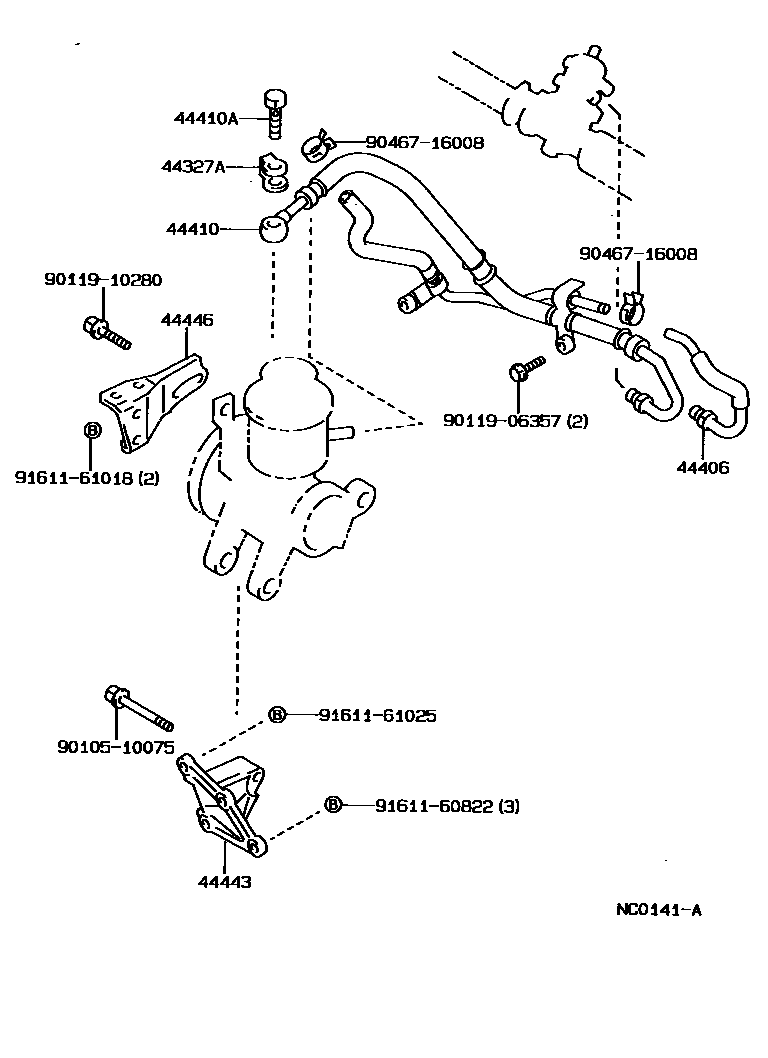

POWER STEERING TUBE

0001 1 0002 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAE9#198708-199206

44406TUBE SUB-ASSY, RETURN

main44406-12110iAE9#198708-199206

44410TUBE ASSY, PRESSURE FEED

main44410-12250iAE92198708-199206

main44410-12300iAE95198802-199009

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16012iAE9#198708-199206

44443BRACKET, PUMP

main44443-12050iAE9#198708-199206

44446STRUT, ADJUSTING

main44446-12040iAE9#198708-199206

9010510075

main90105-10075

9011906357

main90119-06357

9011910280

main90119-10280

9046716008

main90467-16008

9161160822

main91611-60822

9161161018

main91611-61018

9161161025

main91611-61025

13 parts on this diagram · 2 diagrams in section
