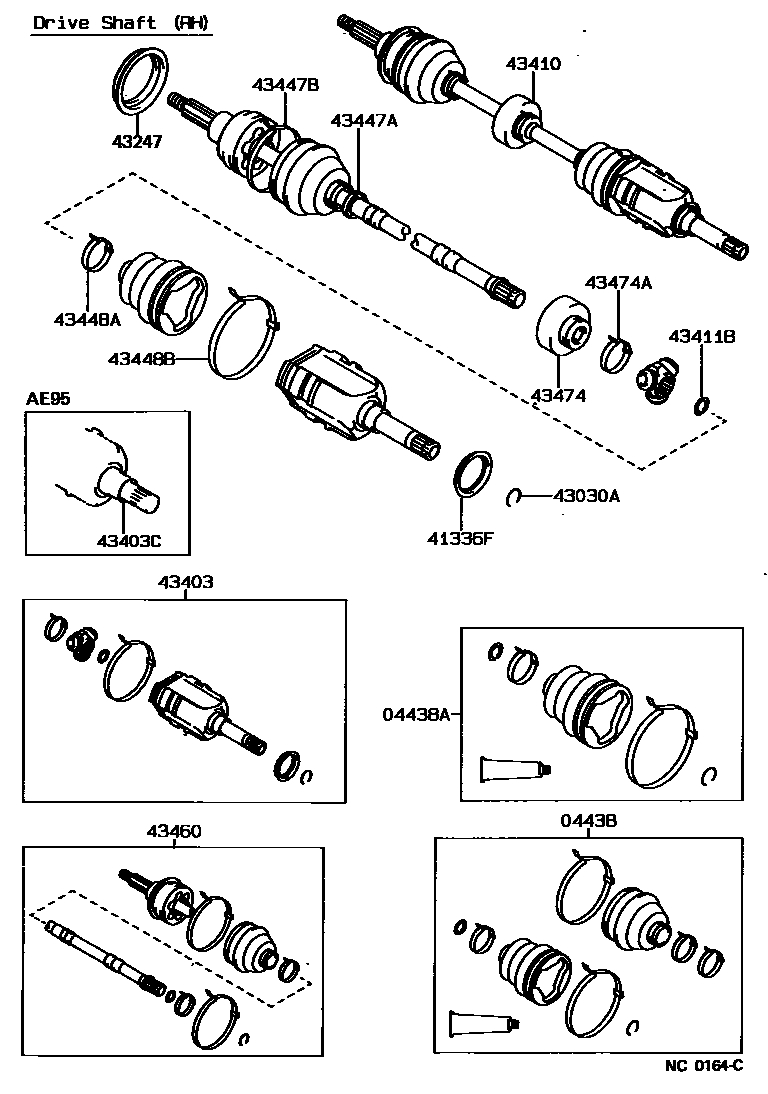

FRONT DRIVE SHAFT

0001 1 0003 1 0005 1

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-12080iAE92198708-199009

sub04438-12170

main04438-12140iAE95198802-199002

sub04438-12200

main04438-12170iAE92199002-199009

sub04438-12171

main04438-12171iAE92199009-199206

sub04438-12370

main04438-12200iAE95199002-199009

sub04438-12201

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-12070iAE92..CBR198708-199002

sub04438-12160

main04438-12150iAE95198802-199002

sub04438-12210

main04438-12160iAE92199002-199009

sub04438-12161

main04438-12161iAE92199009-199206

sub04438-12410

main04438-12210iAE95199002-199009

sub04438-12211

41336FCOVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

main41336-12010iAE92198708-199206

main41336-12040iAE95198802-199009

LH

main41336-20040iAE95198802-199010

RH

43030ARING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)

main90521-26004iAE95;AE92..CBR198708-199206

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-32011iAE9#198708-199106

sub43247-33010

main43247-33010iAE92199106-199206

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-12040iAE92198909-199206

main43403-12050iAE95199001-199010

main43403-19055iAE92198708-198709

sub43403-19085

main43403-19065iAE95198802-199001

sub43403-12050

main43403-19085iAE92198709-198909

43403CRING, O (FOR FRONT DRIVE INBOARD JOINT)

main90301-26006iAE95198802-199010

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12130iAE92198708-199101

sub43410-12131

sub43525-20030

sub90179-22020

main43410-12131iAE92199101-199206

sub43410-12122

sub90178-22001

main43410-12180iAE95198802-199009

sub43410-12230

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-22005iAE95;AE92..CBR198708-199206

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-14010iAE95198802-199010

main90949-01078iAE92198708-199206

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01076iAE95198802-199010

sub42345-12160

main90949-01080iAE92198708-199206

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01078iAE95;AE92..CBR198708-199206

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01076iAE95;AE92..CBR198708-199206

sub42345-12160

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19275iAE92198708-199101

sub43460-19276

sub43525-20030

sub90179-22020

main43460-19276iAE92199101-199206

sub43460-19277

sub90178-22001

main43470-19265iAE95198802-199008

sub43470-19266

main43470-19266iAE95199008-199010

sub43470-19267

sub43525-20030

sub90179-22020

43474DAMPER, DRIVE SHAFT

main43474-12020iAE92198708-199206

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iAE92198708-199206

16 parts on this diagram · 3 diagrams in section
