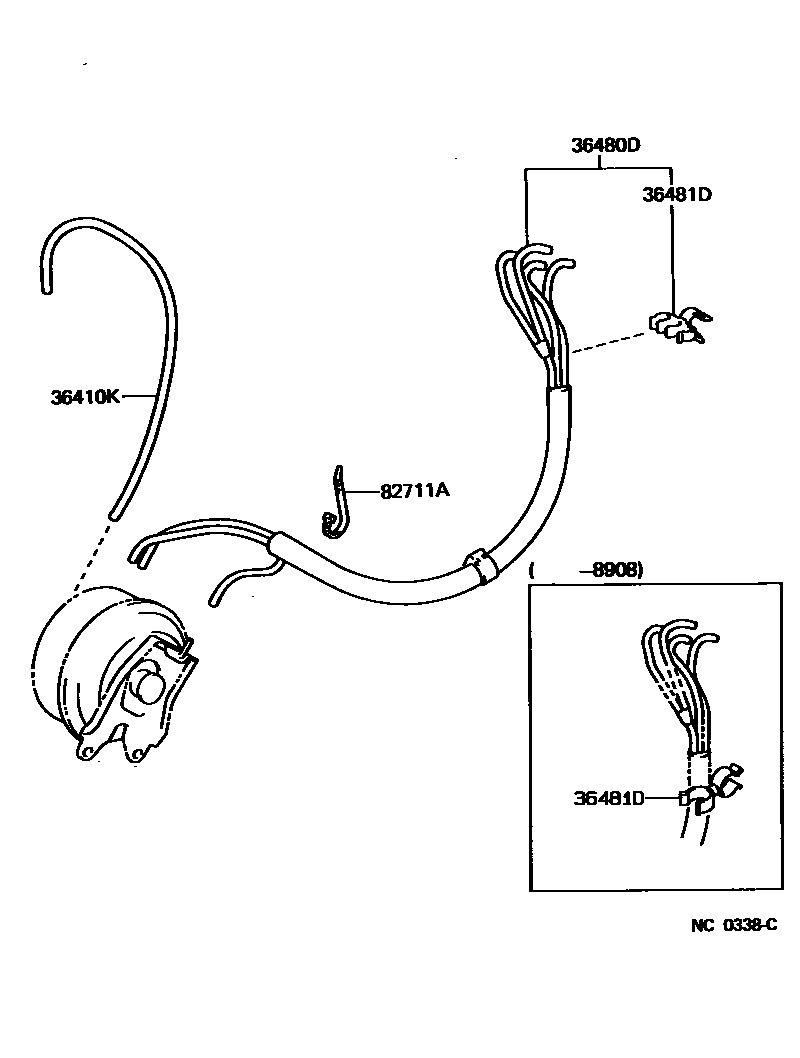

TRANSFER VACUUM PIPING

36410KHOSE, VACUUM (FOR TRANSFER VACUUM)

main90999-92002iAE95..5F198908-199008

main90999-92003iAE95..5F198802-198908

36480DTUBE ASSY, TRANSFER VACUUM

main36480-12010iAE95..5F198802-198905

main36480-12011iAE95..5F198905-198908

main36480-12060iAE95..5F198908-199008

36481DCLAMP, NO.1 (FOR TRANSFER VACUUM)

main90464-00497iAE95..5F198802-198908

main90464-00563iAE95..5F198908-199008

82711ACLAMP(FOR TRANSFER VACUUM TUBE)

main82711-22270iAE95..5F198802-199008

4 parts on this diagram · 1 diagram in section
