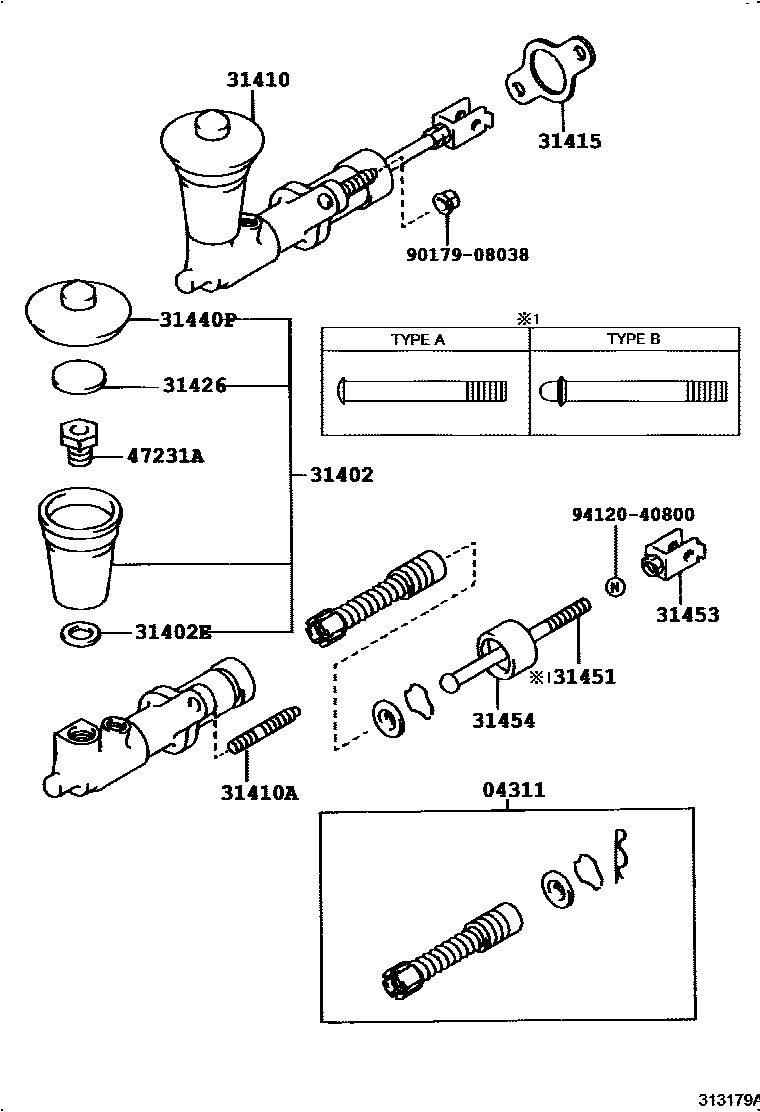

CLUTCH MASTER CYLINDER

0001 1C50,E55F5,E57F5 0002 1C50,E55F5,E57F5

04311CYLINDER KIT, CLUTCH MASTER

main04311-12060iAE9#..5F198905-199205

sub04311-12080

main04311-12080iAE92..5F199205-199206

main04311-22022iAE9#..5F198708-198806

PNC 31451=TYPE A

sub04311-22050

main04311-32030iAE9#..5F198806-198905

PNC 31451=TYPE B

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-12020iAE9#..5F198708-198905

main31402-12040iAE92..5F198905-199206

sub31402-12050

main31402-12050iAE95..5F198905-198908

31402ERING(FOR CLUTCH MASTER CYLINDER RESERVOIR)

main90562-18151iAE9#..5F198708-198905

31410CYLINDER ASSY, CLUTCH MASTER

main31410-12200iAE92..5F198708-198806

sub31410-12221

main31410-12201iAE92..5F198806-198905

sub31410-12221

main31410-12220iAE95..5F198802-198806

sub31410-12221

main31410-12221iAE95..5F198806-198905

main31410-12330iAE92..5F198905-199206

sub31410-12370

main31410-12340iAE95..5F198905-198908

sub31410-12380

main31410-12350iAE95..5F198908-199009

sub31410-12380

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iAE9#..5F198708-199206

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iAE9#..5F198708-199206

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-22020iAE9#..5F198905-199206

main31426-30011iAE9#..5F198708-198905

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iAE9#..5F198708-199206

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-12050iAE92..5F198806-198905

TYPE B:REFER ILLUST.

main31451-12070iAE95..5F198806-198905

main31451-30120iAE92..5F198708-198806

TYPE A:REFER ILLUST.

main31451-35060iAE95..5F198802-198806

main31451-35070iAE92..5F198905-199206

main31451-35080iAE95..5F198905-199009

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-12011iAE95..5F198904-198908

sub31404-35030

main31404-12020iAE95..5F198908-199009

main31404-16011iAE95..5F198802-198904

sub31404-16012

main31453-10020iAE92..5F198708-199206

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iAE9#..5F198708-198908

main31454-16010iAE92..5F199204-199206

main31454-24010iAE9#..5F198908-199204

47231ABOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-20010iAE9#..5F198708-198905

9017908038

main90179-08038

9412040800

main94120-40800

14 parts on this diagram · 2 diagrams in section
