CARBURETOR ASSEMBLY

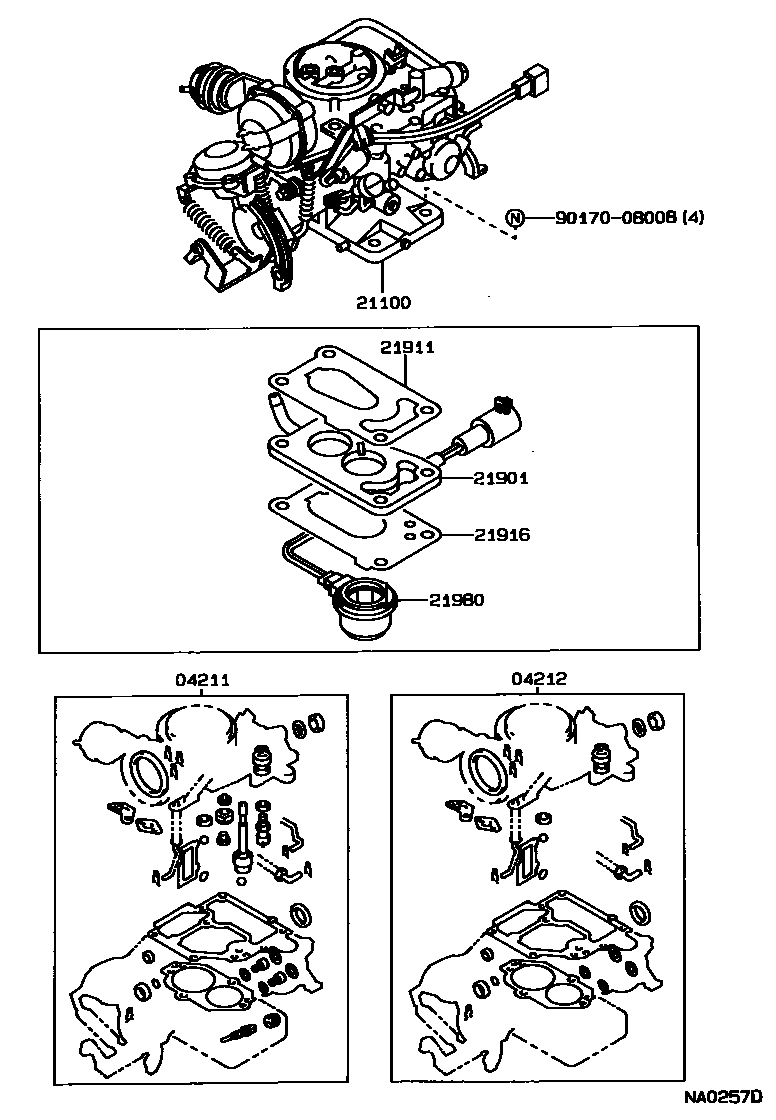

Parts diagram

04211CARBURETOR KIT

main04211-16180i198708-198908

04212GASKET KIT, CARBURETOR

main04212-16080i198708-198908

21100CARBURETOR ASSY

main21100-16340i198708-198908

main21100-16350i198708-198908

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-16010i198708-198908

21911GASKET, CARBURETOR

main21911-16010i198708-198908

21916GASKET, CARBURETOR, NO.2

main21916-15040i198708-198908

21980HEATER ASSY, COLD MIXTURE

main21980-16010i198708-198908

9017008008

main90170-08008

8 parts on this diagram · 1 diagram in section
