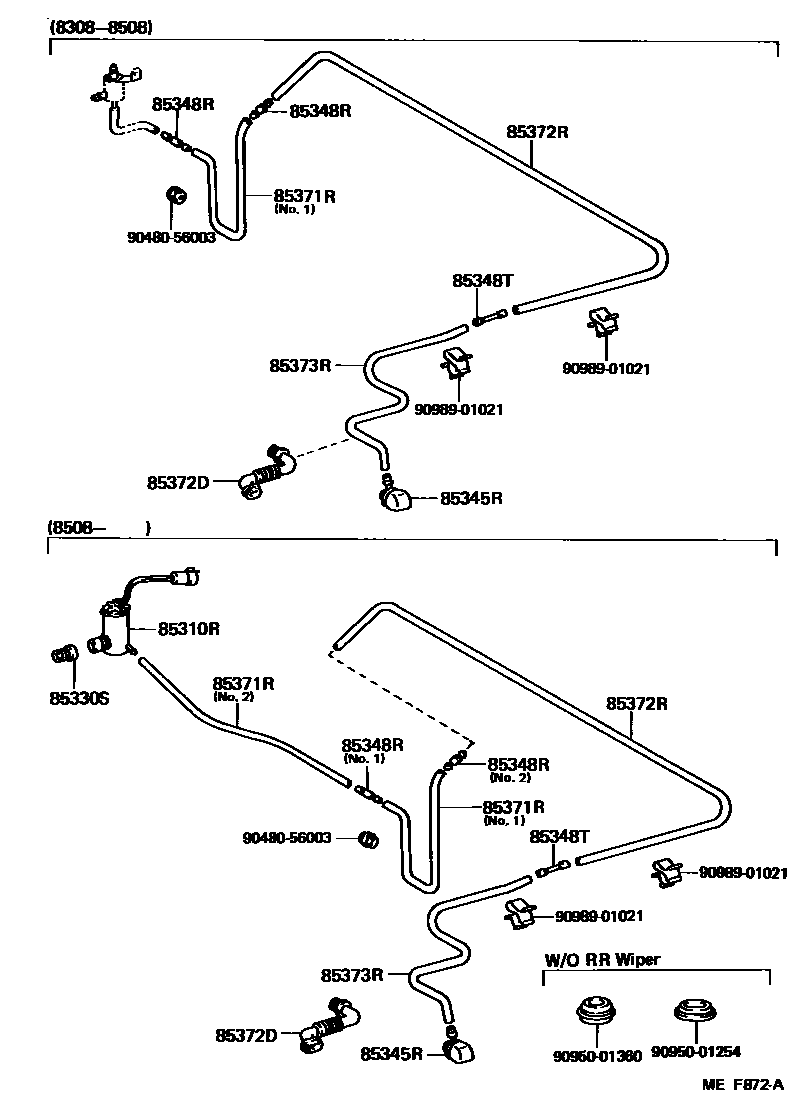

REAR WASHER

85310RMOTOR ASSY, REAR WASHER

main85310-10140iAE82..LB198508-198707

85330SBUSH, REAR WASHER JAR

main90099-32089iAE82..LB198508-198707

85345RNOZZLE, REAR WASHER

main85035-12160iAE82,CE80..LB198308-198707

85348RJOINT, REAR WASHER HOSE, NO.1

main85031-12250iAE82..LB198508-198707

NO.1

main85349-89122iAE82..LB198508-198707

NO.2

main85355-87201×2iAE82,CE80..LB198308-198408

85348TJOINT, REAR WASHER HOSE, NO.2

main85355-20080iAE82,CE80..LB198308-198707

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299iAE82..LB198508-198707

L=1000(*H,L=800),NO.2

main90446-07001iAE82,CE80..LB198308-198707

L=1450(*H,L=600),NO.1

85372DGROMMET, REAR WASHER HOSE

main85372-14020iAE82,CE80..LB198308-198707

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33409iAE82,CE80..LB198308-198707

L=2420

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAE82,CE80..LB198408-198707

L=1000(*H,L=400)

main90099-33299iAE82,CE80..LB198308-198408

L=1000(*H,L=400)

9048056003

main90480-56003

9095001254

main90950-01254

9095001360

main90950-01360

9098901021

main90989-01021

13 parts on this diagram · 1 diagram in section
