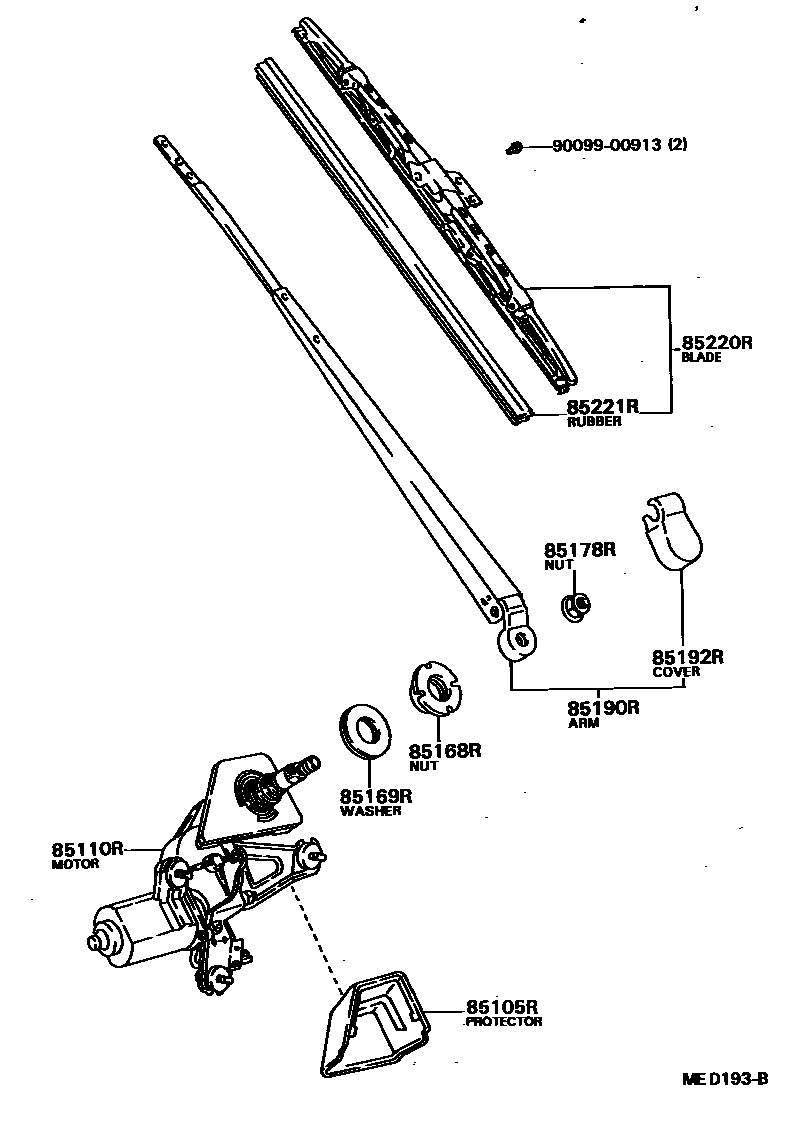

REAR WIPER

85105RPROTECTOR, REAR WIPER

main85105-12010-02iAE82,CE80..LB198308-198408

MAROON,RED/MAROON,TRIM3#

sub85105-12010

main85105-12010-03iAE82,CE80..LB198308-198707

GRAY,GRAY,TRIM1#

sub85105-12010

main85105-12010-04iAE82,CE80..LB198308-198707

BLUE,BLUE,TRIM8#

sub85105-12010

main85105-12010-06iAE82,CE80..LB198408-198707

BROWN,BROWN,TRIM4#

sub85105-12010

85110RMOTOR ASSY, REAR WIPER

main85110-12400iAE82,CE80..LB198308-198508

main85110-12530iAE82..LB198508-198707

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05176iAE82,CE80..LB198308-198403

sub90179-22012

main90179-22012iAE82,CE80..LB198403-198707

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-12400iAE82,CE80..LB198308-198403

sub90210-28001

main90210-28001iAE82,CE80..LB198403-198707

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iAE82,CE80..LB198308-198707

85190RARM ASSY, REAR WIPER

main85190-12650iAE82,CE80..LB198308-198508

sub85190-12770

main85190-12770iAE82..LB198508-198707

85192RCOVER, REAR WIPER ARM

main85192-32010iAE82,CE80..LB198308-198707

85220RBLADE ASSY, REAR WIPER

main85220-16430iAE82,CE80..LB198403-198508

sub85242-24010

main85220-16440iAE82..LB198508-198707

sub85220-16441

main85220-32120iAE82,CE80..LB198308-198403

85221RBLADE, REAR WIPER

main85221-14210iAE82,CE80..LB198308-198508

sub85214-24H90

main85221-16080iAE82..LB198508-198707

9009900913

main90099-00913

10 parts on this diagram · 1 diagram in section
