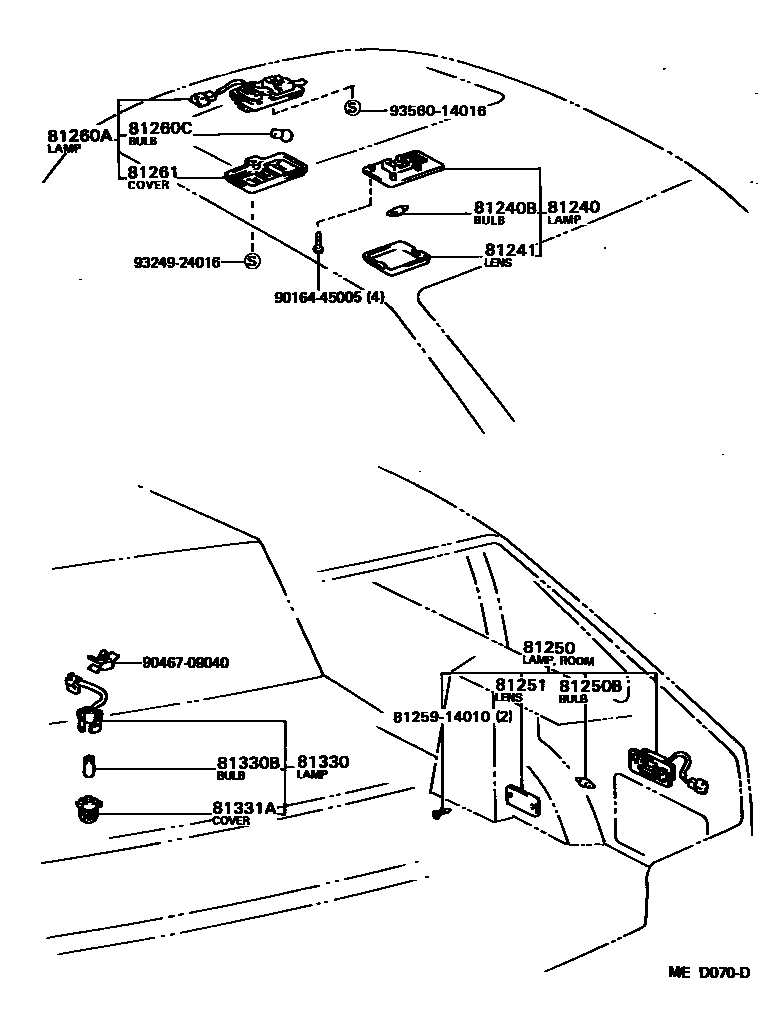

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-16010-18iAE82,CE80198308-198409

IVORY,IVORY

main81240-22080-08iAE82,CE80198409-198608

IVORY,IVORY

main81240-22081-08iAE82198608-198707

IVORY,IVORY

81240BBULB, ROOM LAMP, NO.1

main99132-12100iAE82,CE80198308-198707

12V 10W,12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-16010iAE82,CE80198308-198409

main81241-20060iAE82,CE80198409-198707

81250LAMP ASSY, ROOM, NO.2

main81250-12020-02iAE82,CE80..LB198308-198408

MAROON,RED/MAROON,TRIM3#

main81250-12020-03iAE82,CE80..LB198308-198707

GRAY,GRAY,TRIM1#

main81250-12020-14iAE82,CE80..LB198308-198707

BLUE,BLUE,TRIM8#

main81250-12020-16iAE82,CE80..LB198408-198707

BROWN,BROWN,TRIM4#

81250BBULB, ROOM LAMP, NO.2

main99132-13050iAE82,CE80..LB198308-198707

12V 5W,12V 5W

81251LENS, ROOM LAMP, NO.2

main81231-14010iAE82,CE80..LB198308-198707

81260ALAMP ASSY, MAP

main81260-16040-08iAE82,CE80..DX,LE,LEL198308-198707

IVORY,IVORY

81260CBULB(FOR MAP LAMP)

main90981-12014iAE82,CE80..DX,LE,LEL198308-198707

12V 10W,12V 10W

81261LENS AND COVER, MAP LAMP

main81261-20061-18iAE82,CE80..DX,LE,LEL198308-198707

IVORY,IVORY

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-12010iAE82..SED..(LE,LEL)198308-198707

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iAE82..SED..(LE,LEL)198308-198707

12V 5W,12V 5W

81331ACOVER, LUGGAGE COMPARTMENT LAMP

main81331-22030iAE82..SED..(LE,LEL)198308-198707

8125914010

main81259-14010

9016445005

main90164-45005

9046709040

main90467-09040

9324924016

main93249-24016

9356014016

main93560-14016

17 parts on this diagram · 1 diagram in section
