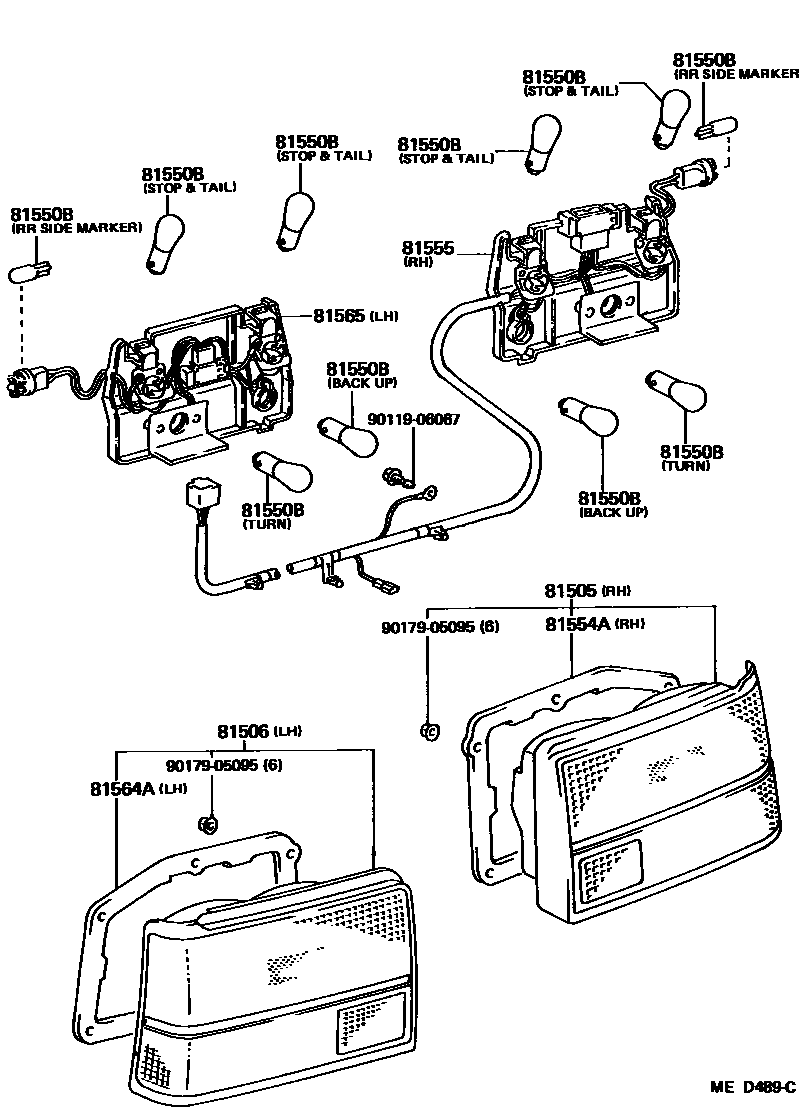

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

81505LAMP SUB-ASSY, REAR COMBINATION, RH

main81505-12770iAE82..SED198508-198707

main81505-19715iAE82,CE80..SED198308-198508

main81505-19735iAE82,CE80..LB198308-198707

81506LAMP SUB-ASSY, REAR COMBINATION, LH

main81506-12690iAE82..SED198508-198707

main81506-19575iAE82,CE80..SED198308-198508

main81506-19595iAE82,CE80..LB198308-198707

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11020×2iAE82,CE80198308-198707

12V 3.8W,12V 3.8W(RR SIDE MARKER)

main99132-11270×4iAE82,CE80198308-198707

12V 27W,12V 27W(TURN OR BACK UP)

main99132-21270×4iAE82,CE80198308-198707

12V 27/8W,12V 27/8W(STOP & TAIL)

81554AGASKET, REAR COMBINATION LAMP BODY, NO.1 RH

main81554-1A150iAE82,CE80..SED198308-198508

main81554-1A180iAE82,CE80..LB198308-198707

main81554-1A310iAE82..SED198508-198707

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-1A060iAE82..SED198508-198707

main81555-1A170iAE82,CE80..SED198308-198508

main81555-1A200iAE82,CE80..LB198308-198508

main81555-1A201iAE82..LB198508-198707

81564AGASKET, REAR COMBINATION LAMP BODY, NO.1 LH

main81554-1A150iAE82,CE80..SED198308-198508

main81554-1A180iAE82,CE80..LB198308-198707

main81554-1A310iAE82..SED198508-198707

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-12870iAE82..SED198508-198707

main81565-1A170iAE82,CE80..SED198308-198508

main81565-1A200iAE82,CE80..LB198308-198508

main81565-1A201iAE82..LB198508-198707

9011906067

main90119-06067

9017905095

main90179-05095

9 parts on this diagram · 3 diagrams in section
