E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

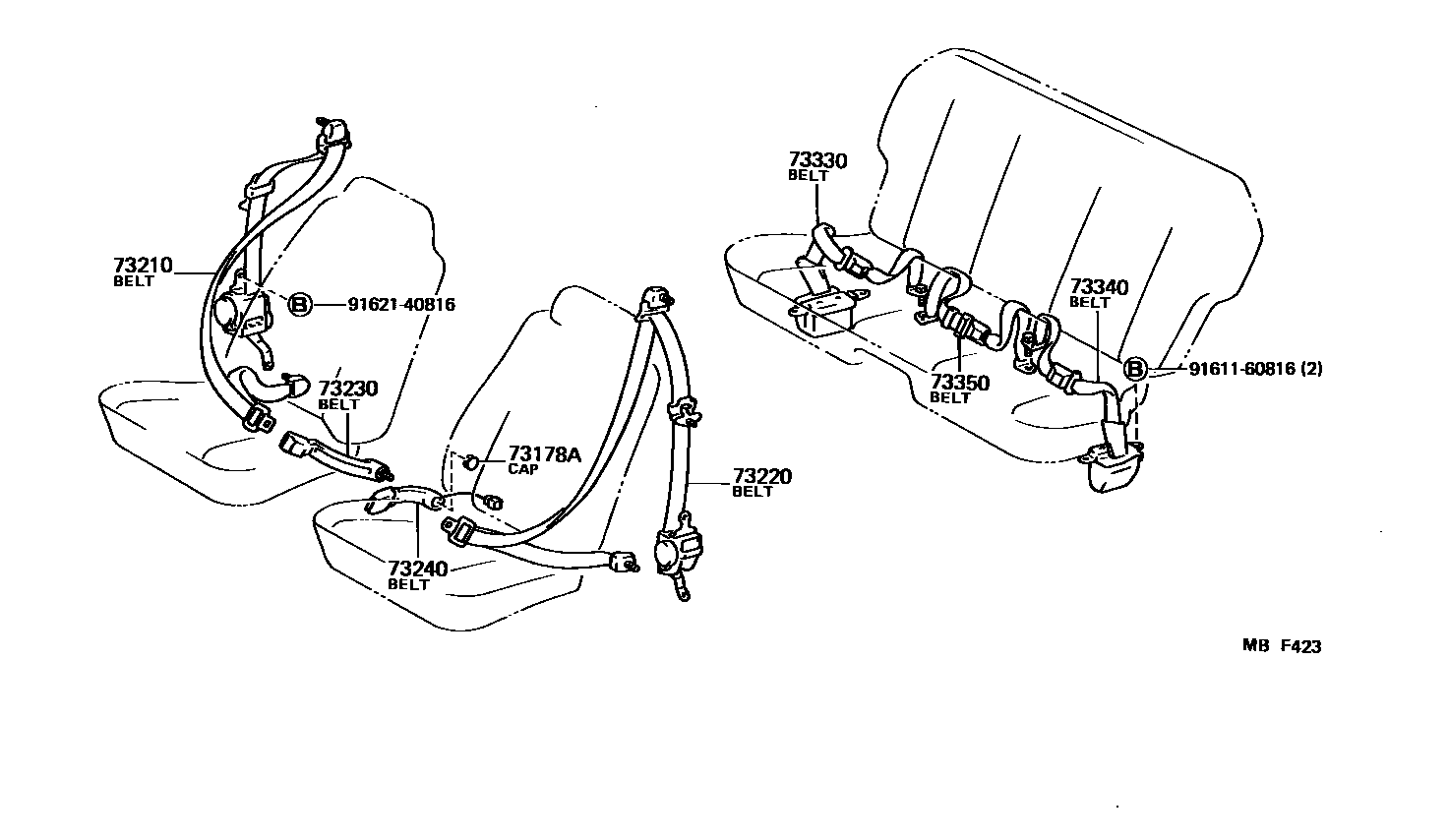

Parts diagram
73178ACAP, SEAT BELT ANCHOR COVER
main73178-16010-12i198308-198408
MAROON,RED/MAROON,TRIM3#
main73178-16010-13i198308-198707
GRAY,GRAY,TRIM1#
main73178-16010-14i198308-198707
BLUE,BLUE,TRIM8#
main73178-16010-16×2i198408-198707
BROWN,BROWN,TRIM4#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-12540-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main73210-12540-03i198308-198707
GRAY,GRAY,TRIM1#
main73210-12540-04i198308-198707
BLUE,BLUE,TRIM8#
main73210-12540-06i198408-198707
BROWN,BROWN,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-12450-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main73220-12450-03i198308-198707
GRAY,GRAY,TRIM1#
main73220-12450-04i198308-198707
BLUE,BLUE,TRIM8#
main73220-12450-06i198408-198707
BROWN,BROWN,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-12250-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main73230-12250-03i198308-198707
GRAY,GRAY,TRIM1#
main73230-12250-04i198308-198707
BLUE,BLUE,TRIM8#
main73230-12250-06i198408-198707
BROWN,BROWN,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-12060-02i198308-198405
MAROON,RED/MAROON,TRIM3#
main73240-12060-03i198308-198405
GRAY,GRAY,TRIM1#
main73240-12060-04i198308-198405
BLUE,BLUE,TRIM8#
main73240-12061-02i198405-198408
MAROON,MAROON,TRIM3#
main73240-12061-03i198405-198707
GRAY,GRAY,TRIM1#
main73240-12061-04i198405-198707
BLUE,BLUE,TRIM8#
main73240-12061-06i198408-198707
BROWN,BROWN,TRIM4#
73330BELT ASSY, REAR SEAT LAP TYPE, RH
main73330-12220-02i198308-198402
MAROON,RED/MAROON,TRIM3#
main73330-12220-03i198402-198508
GRAY,GRAY,TRIM1#
main73330-12220-04i198308-198402
BLUE,BLUE,TRIM8#
main73330-12220-06i198408-198508
BROWN,BROWN,TRIM4#
main73330-12230-02i198402-198408
MAROON,RED/MAROON,TRIM3#
main73330-12230-03i198402-198508
GRAY,GRAY,TRIM1#
main73330-12230-04i198402-198508
BLUE,BLUE,TRIM8#
main73330-12230-06i198408-198508
BROWN,BROWN,TRIM4#
main73330-12240-03i198508-198707
GRAY,GRAY,TRIM1#
main73330-12240-04i198508-198707
BLUE,BLUE,TRIM8#
main73330-12240-06i198508-198707
BROWN,BROWN,TRIM4#
main73330-12250-03i198508-198707
GRAY,GRAY,TRIM1#
main73330-12250-04i198508-198707
BLUE,BLUE,TRIM8#
main73330-12250-06i198508-198707
BROWN,BROWN,TRIM4#
73340BELT ASSY, REAR SEAT LAP TYPE, LH
main73340-12070-02i198402-198408
MAROON,RED/MAROON,TRIM3#
main73340-12070-03i198308-198402
GRAY,GRAY,TRIM1#
main73340-12070-04i198402-198508
BLUE,BLUE,TRIM8#
main73340-12070-06i198408-198508
BROWN,BROWN,TRIM4#
main73340-12080-02i198402-198408
MAROON,RED/MAROON,TRIM3#
main73340-12080-03i198402-198508
GRAY,GRAY,TRIM1#
main73340-12080-04i198402-198508
BLUE,BLUE,TRIM8#
main73340-12080-06i198408-198508
BROWN,BROWN,TRIM4#
main73340-12090-03i198508-198707
GRAY,GRAY,TRIM1#
main73340-12090-04i198508-198707
BLUE,BLUE,TRIM8#
main73340-12090-06i198508-198707
BROWN,BROWN,TRIM4#
main73340-12100-03i198508-198707
GRAY,GRAY,TRIM1#
main73340-12100-04i198508-198707
BLUE,BLUE,TRIM8#
main73340-12100-06i198508-198707
BROWN,BROWN,TRIM4#
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
main73350-12030-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main73350-12030-03i198308-198508
GRAY,GRAY,TRIM1#
main73350-12030-04i198308-198508
BLUE,BLUE,TRIM8#
main73350-12030-06i198408-198508
BROWN,BROWN,TRIM4#
main73350-12060-03i198508-198707
GRAY,GRAY,TRIM1#
main73350-12060-04i198508-198707
BLUE,BLUE,TRIM8#
main73350-12060-06i198508-198707
BROWN,BROWN,TRIM4#
9161160816
main91611-60816
9162140816
main91621-40816

10 parts on this diagram · 1 diagram in section
