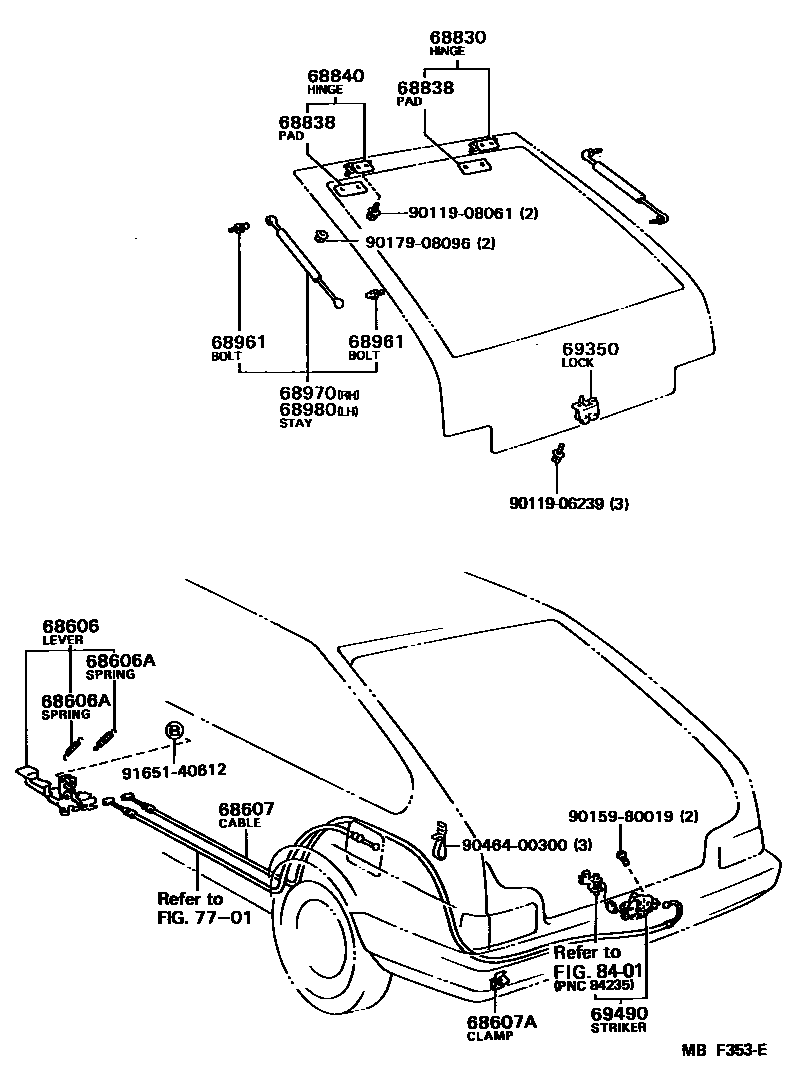

BACK DOOR LOCK & HANDLE

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-12050iAE82..LB..LE198308-198508

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09034×2iAE82..LB..LE198308-198508

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-12180iAE82..LB..LE198308-198508

68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)

main69749-12010iAE82..LB..LE198308-198508

68830HINGE ASSY, BACK DOOR, RH

main68801-20020iAE82,CE80..LB198308-198707

68838PAD, BACK DOOR HINGE, NO.1

main68838-14021×2iAE82,CE80..LB198308-198707

68840HINGE ASSY, BACK DOOR, LH

main68801-20020iAE82,CE80..LB198308-198707

68961BOLT, BACK DOOR STAY

main68961-32010×4iAE82,CE80..LB198308-198707

68970STAY ASSY, BACK DOOR, RH

main68950-19415iAE82,CE80..LB198308-198707

W/O RR WIPER

main68950-19425iAE82,CE80..LB198308-198707

W/RR WIPER

68980STAY ASSY, BACK DOOR

main68950-19415iAE82,CE80..LB198308-198707

W/O RR WIPER

main68950-19425iAE82,CE80..LB198308-198707

W/RR WIPER

69350LOCK ASSY, BACK DOOR

main69350-12050iAE82,CE80..LB198308-198707

69490STRIKER ASSY, BACK DOOR LOCK

main69430-12150iAE82,CE80..LB..DX198308-198408

W/O LAMP SWITCH

main69430-12160iAE82,CE80..LB..DX198308-198508

W/LAMP SWITCH

main69430-12170iAE82..LB..LE198308-198508

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906239

main90119-06239

9011908061

main90119-08061

9015980019

main90159-80019

9017908096

main90179-08096

9046400300

main90464-00300

9165140612

main91651-40612

20 parts on this diagram · 1 diagram in section
