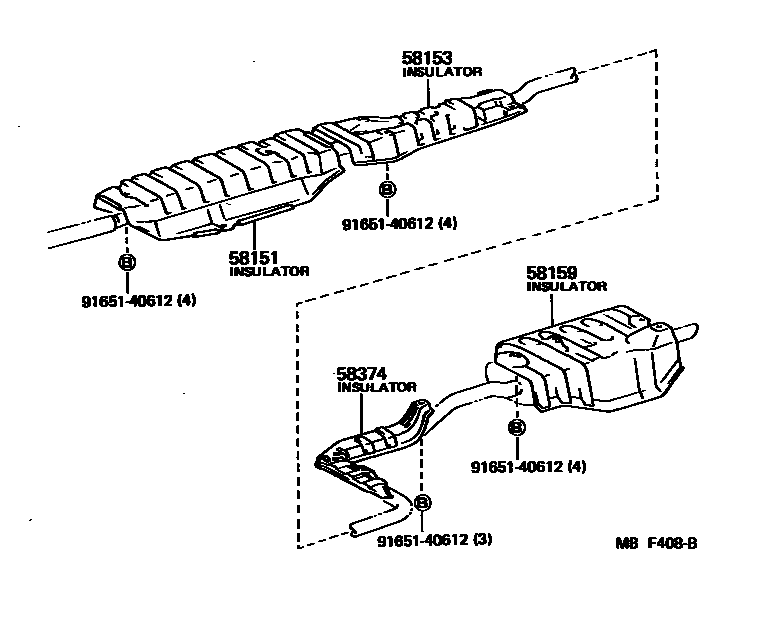

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-12120iAE82198308-198707

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-12080iAE82198308-198707

58159INSULATOR, MAIN MAFFLAR HEAT

main58327-16020iAE82198308-198707

58374INSULATOR, REAR FLOOR FRONT HEAT

main58321-12020iAE82198308-198707

9165140612

main91651-40612

5 parts on this diagram · 1 diagram in section
