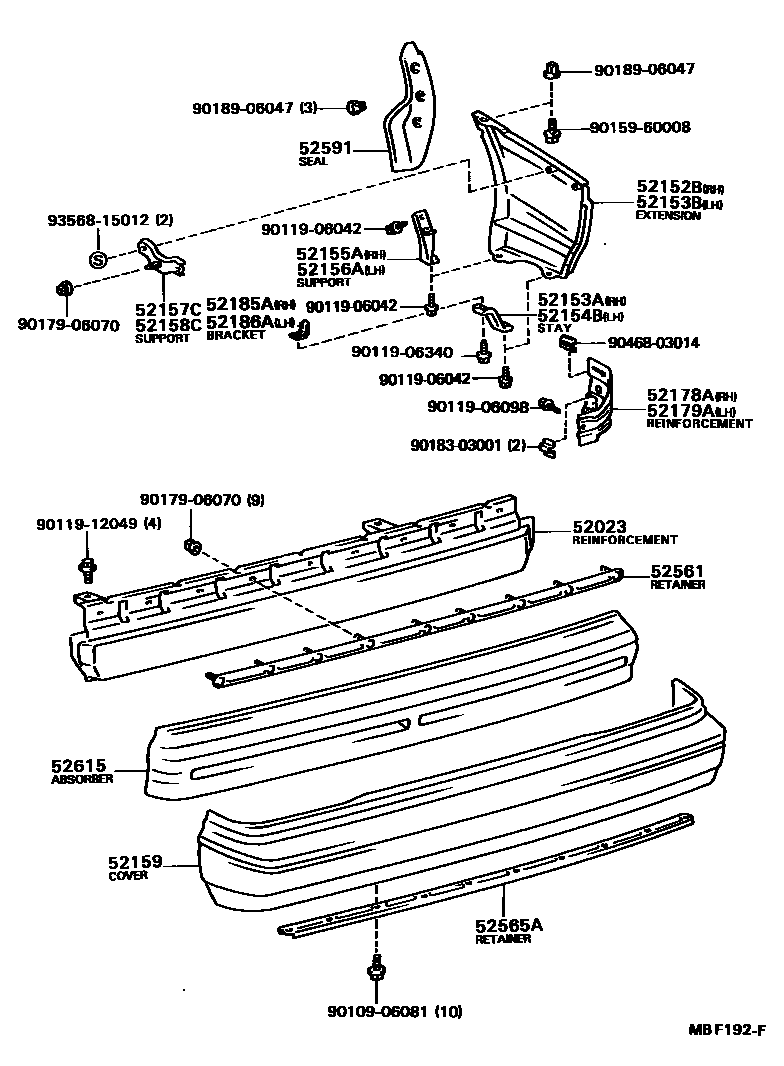

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52152BEXTENSION, REAR BUMPER, RH
52153ASTAY, REAR BUMPER SIDE, RH
52153BEXTENSION, REAR BUMPER, LH
52154BSTAY, REAR BUMPER SIDE, LH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
2-TONE BODY COLOR
2-TONE BODY COLOR
52178AREINFORCEMENT, REAR BUMPER BAR CORNER, RH
52179AREINFORCEMENT, REAR BUMPER BAR CORNER, LH
52185ABRACKET, REAR BUMPER SIDE, RH
52186ABRACKET, REAR BUMPER SIDE, LH
52561RETAINER, REAR BUMPER, UPPER CENTER
52565ARETAINER, REAR BUMPER, LOWER
52591SEAL, REAR BUMPER SIDE, RH
52615ABSORBER, REAR BUMPER ENERGY
9010906081
main90109-06081
9011906042
main90119-06042
9011906098
main90119-06098
9011906340
main90119-06340
9011912049
main90119-12049
9015960008
main90159-60008
9017906070
main90179-06070
9018303001
main90183-03001
9018906047
main90189-06047
9046803014
main90468-03014
9356815012
main93568-15012
29 parts on this diagram · 2 diagrams in section
