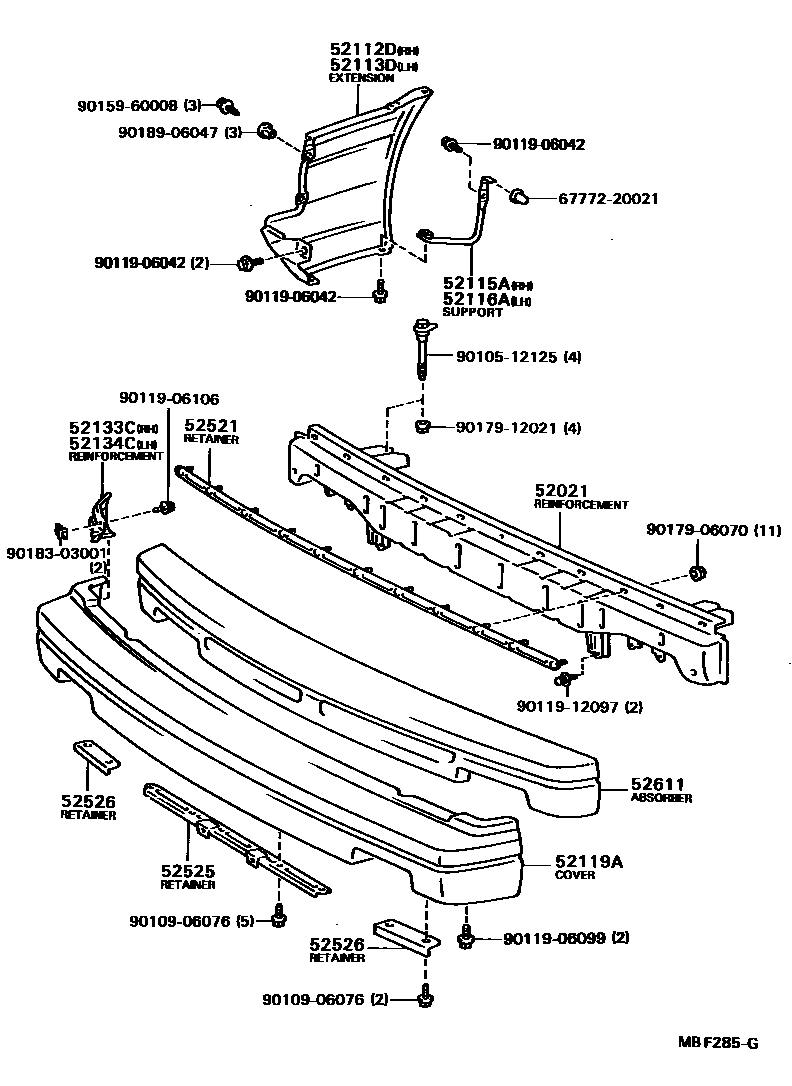

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-12110iAE82,CE80198308-198508

main52021-12140iAE82198508-198707

52112DEXTENSION, FRONT BUMPER, RH

main52112-12110iAE82,CE80198308-198508

main52112-12170iAE82..DX198508-198707

main52112-12180iAE82..LE,LEL198508-198707

52113DEXTENSION, FRONT BUMPER, LH

main52113-12110iAE82,CE80198308-198508

main52113-12170iAE82..DX198508-198707

main52113-12180iAE82..LE,LEL198508-198707

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12180iAE82,CE80198308-198508

main52115-12230iAE82198508-198707

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12150iAE82,CE80198308-198508

main52116-12180iAE82198508-198707

52119ACOVER, FRONT BUMPER

main52119-12240iAE82,CE80198308-198508

main52119-12750iAE82..DX198508-198707

main52119-12760iAE82..LE,LEL198508-198707

main52119-12901iAE82..LEL198408-198508

2-TONE BODY COLOR

main52119-12904iAE82..LEL198508-198707

2-TONE BODY COLOR

52133CREINFORCEMENT, FRONT BUMPER BAR, RH

main52133-12070iAE82,CE80198308-198707

52134CREINFORCEMENT, FRONT BUMPER BAR, LH

main52134-12030iAE82,CE80198308-198707

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-12050iAE82,CE80198308-198707

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52506-12020iAE82,CE80198308-198408

main52506-12021iAE82,CE80198408-198508

main52506-12040iAE82198508-198707

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52526-12010iAE82,CE80198308-198707

52611ABSORBER, FRONT BUMPER ENERGY

main52611-12100iAE82,CE80198308-198707

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9010512125

main90105-12125

9010906076

main90109-06076

9011906042

main90119-06042

9011906099

main90119-06099

9011906106

main90119-06106

9011912097

main90119-12097

9015960008

main90159-60008

9017906070

main90179-06070

9017912021

main90179-12021

9018303001

main90183-03001

9018906047

main90189-06047

24 parts on this diagram · 2 diagrams in section
