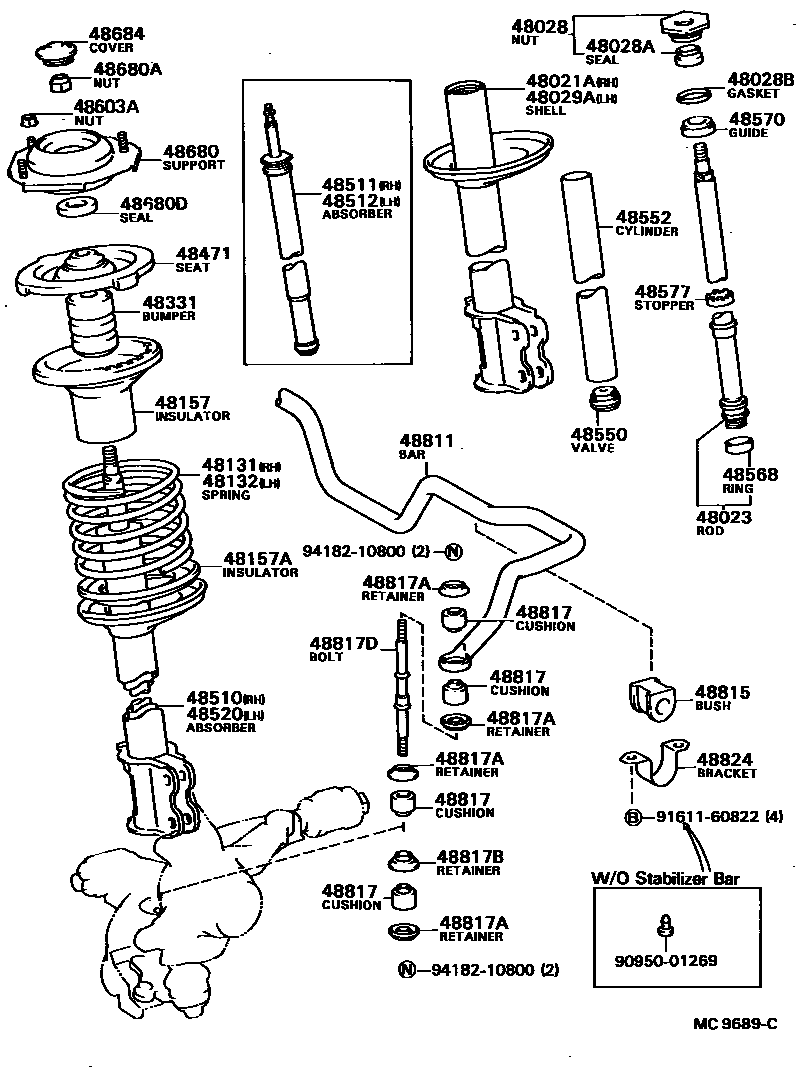

FRONT SPRING & SHOCK ABSORBER

48021ASHELL SUB-ASSY, FRONT SHOCK ABSORBER, RH

main48021-12181iAE82198308-198505

main48021-20121iCE80198308-198505

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-12260iAE82198308-198505

main48023-12300iCE80198308-198403

sub48023-20110

main48023-20110iCE80198403-198505

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-10020iAE82198308-198505

sub48028-17010

main48028-14011iCE80198308-198505

sub48028-14012

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-20006iAE82198308-198505

main90316-22001iCE80198308-198505

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-36002iAE82198308-198408

sub90430-37003

main90430-37003iAE82198408-198505

main90430-43206iCE80198308-198505

48029ASHELL SUB-ASSY, FRONT SHOCK ABSORBER, LH

main48029-12061iAE82198308-198505

main48029-20121iCE80198308-198505

48131SPRING, FRONT COIL, RH

main48131-1A640iCE80..5F198408-198508

main48131-1A760iCE80..3FC198408-198508

W/COOLER

main48131-1E150iCE80..3FC198408-198508

W/COOLER

main48131-1E170iAE82..5F198308-198408

main48131-1E190iAE82..5F..USA198308-198408

W/COOLER

main48131-1E210iAE82..3FC..USA198308-198408

W/COOLER

main48131-1E220iCE80..MTM198308-198408

main48131-1E240iCE80..3FC198308-198408

W/COOLER

main48131-1E260iCE80..3FC198308-198408

W/COOLER

sub48131-2B870

main48131-1E300iAE82..5F198408-198505

sub48131-1E310

main48131-1E300iAE82..ATM..USA198505-198602

W/COOLER

sub48131-1E310

main48131-1E310iAE82..ATM..USA198602-198707

W/COOLER

main48131-1E340iAE82..5F198505-198707

W/COOLER

main48131-1E350iAE82..ATM198505-198707

W/COOLER

main48131-1E510iAE82..5F..USA198408-198412

W/COOLER

sub48131-1E520

main48131-1E520iAE82..ATM198412-198505

W/COOLER

main48131-1E590iAE82..ATM..USA198408-198505

W/COOLER

48132SPRING, FRONT COIL, LH

main48131-1A640iCE80..5F198408-198508

main48131-1A760iCE80..3FC198408-198508

W/COOLER

main48131-1E150iCE80..3FC198408-198508

W/COOLER

main48131-1E170iAE82..5F198308-198408

main48131-1E190iAE82..5F..USA198308-198408

W/COOLER

main48131-1E210iAE82..3FC..USA198308-198408

W/COOLER

main48131-1E220iCE80..MTM198308-198408

main48131-1E240iCE80..5F198308-198408

W/COOLER

main48131-1E260iCE80..3FC198308-198408

W/COOLER

sub48131-2B870

main48131-1E300iAE82..5F198408-198505

sub48131-1E310

main48131-1E300iAE82..ATM..USA198505-198602

W/COOLER

sub48131-1E310

main48131-1E310iAE82..ATM..USA198602-198707

W/COOLER

main48131-1E340iAE82..5F198505-198707

main48131-1E350iAE82..ATM198505-198707

W/COOLER

main48131-1E510iAE82..ATM198408-198412

W/COOLER

sub48131-1E520

main48131-1E520iAE82..5F..USA198412-198505

W/COOLER

main48131-1E590iAE82..ATM..USA198408-198505

W/COOLER

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-12050iAE82198308-198508

main48157-20030iCE80198308-198508

main48157-20050iAE82198508-198707

48157AINSULATOR, FRONT COIL SPRING, LOWER

main48158-12010iAE82198308-198707

main48158-12020iCE80198308-198508

48331BUMPER, FRONT SPRING, NO.1

main48331-12100iAE82198308-198707

sub48331-12120

main48331-20040iCE80198308-198508

sub48331-12130

48471SEAT, FRONT SPRING, UPPER

main48044-12080iAE82198308-198707

main48044-32010iCE80198308-198508

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-12300iAE82198308-198505

sub48510-12410

main48510-12340iCE80198308-198403

sub48510-20162

main48510-12410iAE82198505-198707

sub48510-1A240

main48510-12440iCE80198505-198508

sub48510-20291

main48510-20162iCE80198403-198505

sub48510-12470

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-12280iAE82198308-198707

sub48511-12290

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-12280iAE82198308-198707

sub48511-12290

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-12170iAE82198308-198505

sub48520-12280

main48520-12210iCE80198308-198403

sub48520-20162

main48520-12280iAE82198505-198707

sub48520-1A110

main48520-12310iCE80198505-198508

sub48520-20281

main48520-20162iCE80198403-198505

sub48520-12340

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-10080iAE82198308-198505

main48550-12220iCE80198308-198403

main48550-12230iCE80198403-198505

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

main48552-12050iAE82198308-198505

main48552-20050iCE80198308-198505

48568RING, SHOCK ABSORBER PISTON

main48568-12021iAE82198308-198505

main48568-22021iCE80198308-198505

48570GUIDE ASSY, SHOCK ABSORBER ROD

main48022-10020iAE82198308-198505

main48022-14010iCE80198308-198505

sub48022-22040

sub90430-42001

48577STOPPER, SHOCK ABSORBER REBOUND

main48577-16010iAE82198308-198505

main48579-14011iCE80198308-198505

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-08054iAE82,CE80198308-198608

main90179-08090iAE82198608-198707

48680SUPPORT ASSY, FRONT SUSPENSION

main48609-20050iAE82,CE80198308-198501

sub48609-20060

main48609-20060iAE82,CE80198501-198707

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400iAE82,CE80198308-198707

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iAE82,CE80198308-198707

48684COVER, BEARING DUST

main48684-32010iAE82,CE80198308-198707

48811BAR, STABILIZER, FRONT

main48811-12440iCE80198308-198508

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14160iCE80198308-198508

48817CUSHION, FRONT STABILIZER

main48817-30020iCE80198308-198508

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iCE80198308-198508

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iCE80198308-198508

48817DBOLT(FOR FRONT STABILIZER)

main48819-20030iCE80198308-198508

48824BRACKET, STABILIZER, FRONT

main48824-20040iCE80198308-198508

9095001269

main90950-01269

9161160822

main91611-60822

9418210800

main94182-10800

36 parts on this diagram · 1 diagram in section
