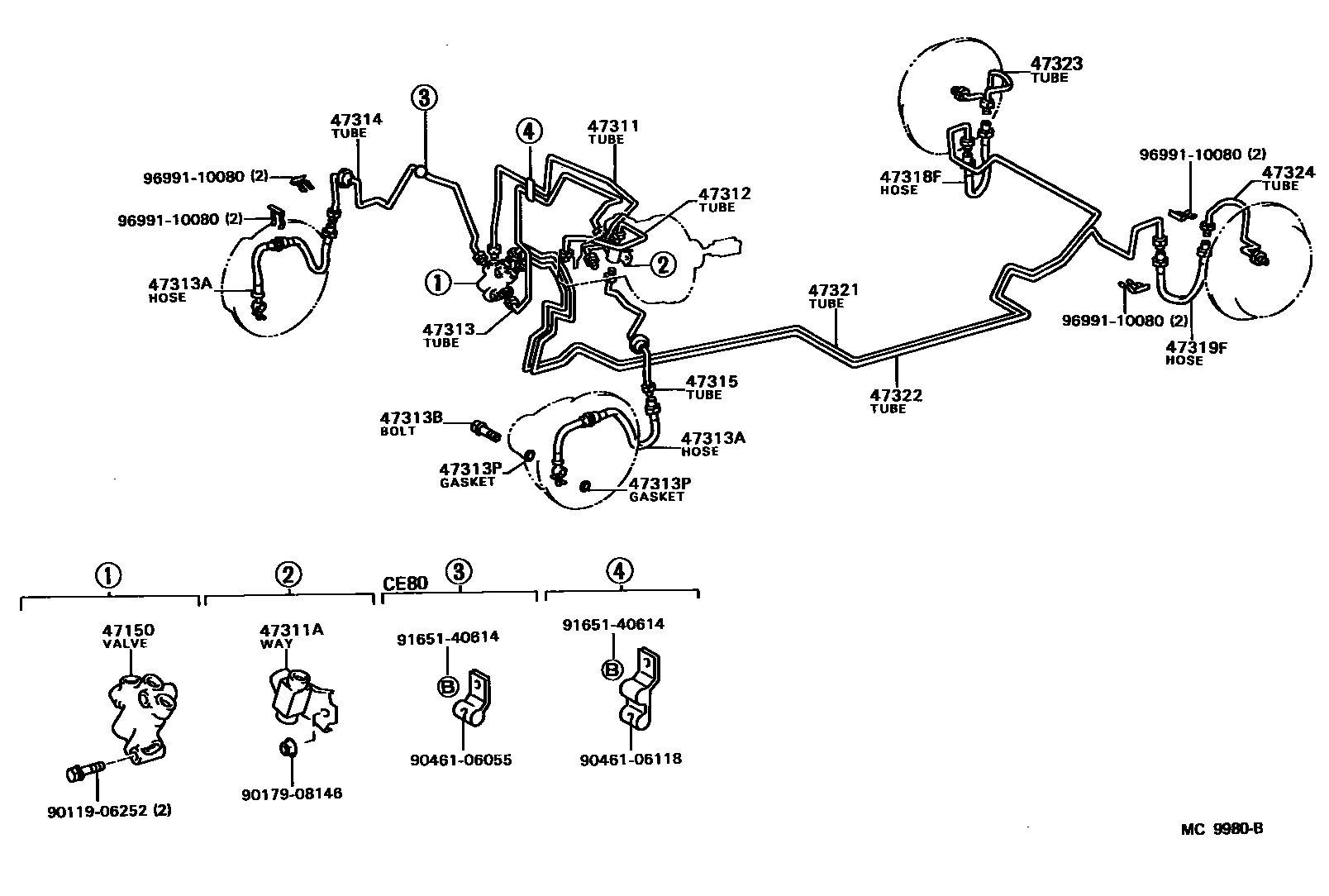

BRAKE TUBE & CLAMP

47150VALVE ASSY, PROPORTIONING

main47150-12050iAE82,CE80198308-198505

sub47150-12230

main47150-16050iAE82,CE80198505-198707

47311TUBE, FRONT BRAKE, NO.1

main47311-12350iAE82,CE80198308-198707

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10155iAE82,CE80198308-198707

47312TUBE, FRONT BRAKE, NO.2

main47312-12210iAE82,CE80198308-198707

47313TUBE, FRONT BRAKE, NO.3

main47313-12160iAE82,CE80198308-198707

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02454iAE82,CE80198308-198508

sub90947-02455

main90947-02455iAE82198508-198707

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iAE82,CE80198308-198707

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iAE82,CE80198308-198707

47314TUBE, FRONT BRAKE, NO.4

main47314-12200iAE82,CE80198308-198707

47315TUBE, FRONT BRAKE, NO.5

main47315-12340iAE82,CE80198308-198408

sub47315-12380

main47315-12380iAE82,CE80198408-198707

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02465iAE82,CE80198405-198707

main96950-33505iAE82,CE80198308-198405

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02465iAE82,CE80198405-198707

main96950-33505iAE82,CE80198308-198405

47321TUBE, REAR BRAKE, NO.1

main47321-12020iAE82,CE80198308-198707

47322TUBE, REAR BRAKE, NO.2

main47322-12130iAE82,CE80198308-198707

47323TUBE, REAR BRAKE, NO.3

main47323-12140iAE82,CE80198308-198410

main47323-12200iAE82,CE80198410-198707

47324TUBE, REAR BRAKE, NO.4

main47324-12100iAE82,CE80198308-198410

main47324-12160iAE82,CE80198410-198707

9011906252

main90119-06252

9017908146

main90179-08146

9046106055

main90461-06055

9046106118

main90461-06118

9165140614

main91651-40614

9699110080

main96991-10080

22 parts on this diagram · 1 diagram in section
