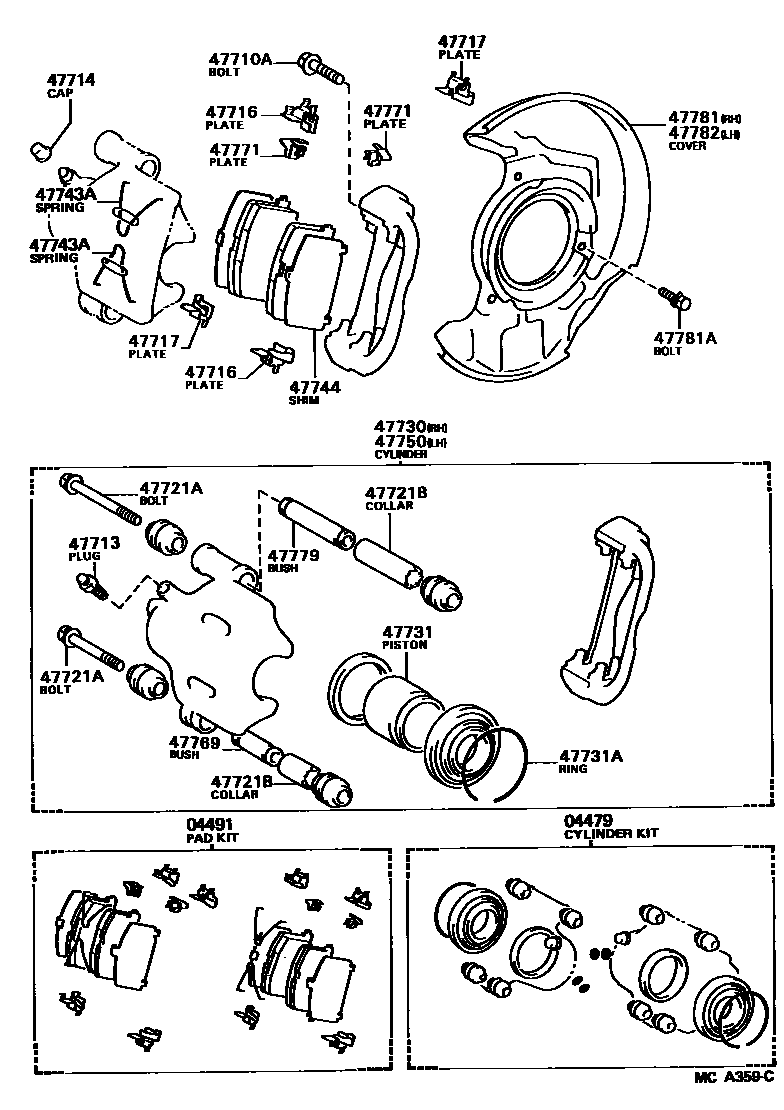

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12090iAE82,CE80198308-198501

main04479-12091iAE82,CE80198501-198707

04491PAD KIT, DISC BRAKE, FRONT

main04491-12240iAE82198602-198707

MARK BX(BENDIX)

main04491-12241iAE82,CE80198412-198602

MARK BX(BENDIX)

main04491-32050iAE82,CE80198506-198707

MARK AK(AKEBONO)

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040×4iAE82,CE80198308-198707

*12-1.25PX25.8-19.5

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iAE82,CE80198308-198707

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAE82,CE80198308-198707

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32010×4iAE82,CE80198308-198707

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32010×4iAE82,CE80198308-198707

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003×2iAE82,CE80198308-198707

*9-1.25PX71-25,*9-1.25PX73-25

main90119-09004×2iAE82,CE80198308-198707

*9-1.25PX91-25,*9-1.25PX93-25

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-15004×2iAE82,CE80198308-198705

L=12

main90387-15005×2iAE82,CE80198308-198705

L=32

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12210iAE82,CE80198308-198707

47731PISTON, FRONT DISC BRAKE

main47731-12090×2iAE82,CE80198308-198707

TOYOTA

main47731-12150×2iAE82198703-198704

HOSEI

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×2iAE82,CE80198308-198707

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-12040×4iAE82198602-198707

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-32010×4iAE82,CE80198308-198707

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12210iAE82,CE80198308-198707

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030×2iAE82198705-198707

main47769-16010×2iAE82,CE80198308-198705

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32010×4iAE82,CE80198308-198707

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010×2iAE82,CE80198308-198707

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-20140iAE82,CE80198308-198707

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×6iAE82,CE80198308-198707

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-20140iAE82,CE80198308-198707

21 parts on this diagram · 2 diagrams in section
