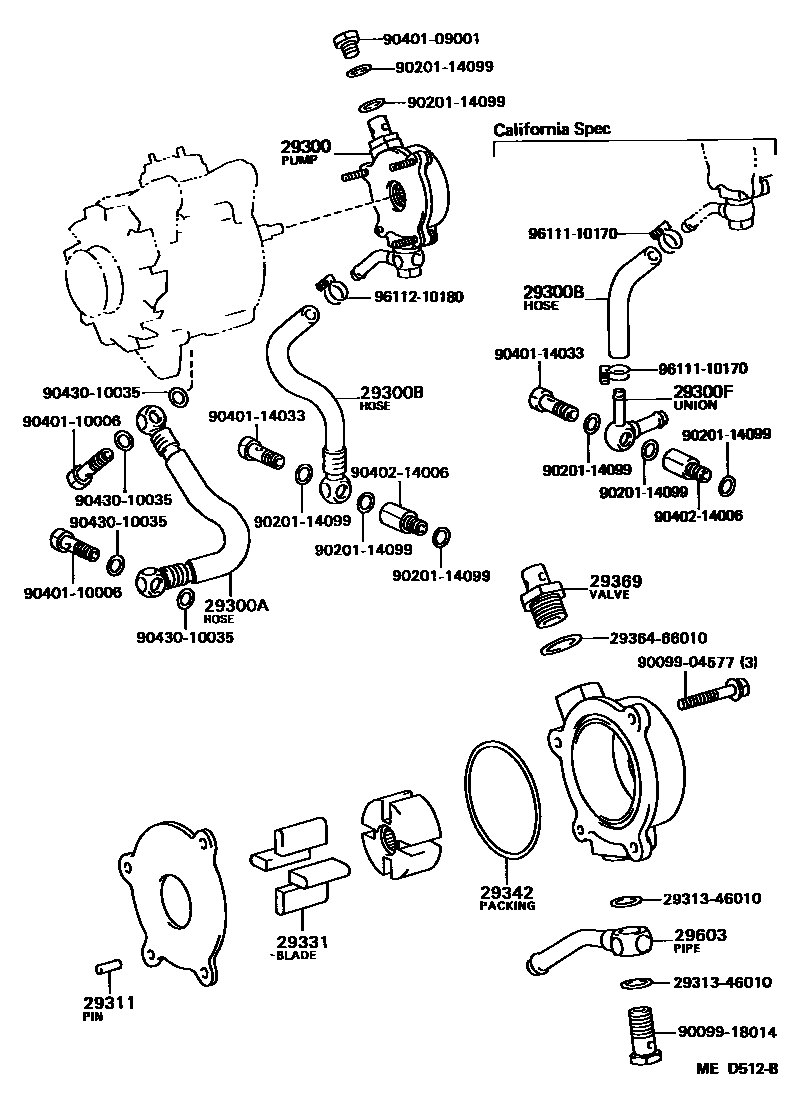

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-64020i1CLC..CE80198308-198508

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02095i1CLC..CE80198308-198508

29300BHOSE, VACUUM PUMP OIL OUTLET

main90445-17056i1CLC..CE80..5F198308-198508

W/*CAL

main90923-02069i1CLC..CE80198308-198508

29300FUNION

main90405-10012i1CLC..CE80..5F198308-198508

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i1CLC..CE80198308-198508

29331BLADE, VACUUM PUMP, A

main29331-56070×4i1CLC..CE80198308-198508

29342PACKING, VACUUM PUMP

main96740-02063i1CLC..CE80198308-198508

29369VALVE SUB-ASSY, CHECK

main29369-56070i1CLC..CE80198308-198508

29603PIPE, VACUUM PUMP OIL OUTLET

main29365-64020i1CLC..CE80198308-198508

2931346010

main29313-46010

2936466010WASHER, VACUUM PUMP

main29364-66010

9009904577

main90099-04577

9009918014

main90099-18014

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9040114033

main90401-14033

9040214006

main90402-14006

9043010035

main90430-10035

9611110170

main96111-10170

9611210180

main96112-10180

21 parts on this diagram · 1 diagram in section
