IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01064×4i4ALC..AE82..CND198308-198707

W16EXR-U,W16EXR-U

main90919-01091×4i4ALC..AE82..USA198308-198707

W16EXR-U11,W16EXR-U 11

19850PLUG ASSY, GLOW

main19850-64010×4i1CLC..CE80198308-198508

*BV-GV=12V-7V,*12V-7V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024×4i1CLC..CE80198308-198508

19871CONNECTOR, GLOW PLUG NO.1

main19871-64020i1CLC..CE80198308-198505

main19871-64021i1CLC..CE80198505-198508

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-22147i4ALC..AE82198308-198508

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12514i4ALC..AE82198308-198508

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12515i4ALC..AE82198308-198508

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12475i4ALC..AE82198308-198508

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12476i4ALC..AE82198308-198508

9046400082

main90464-00082

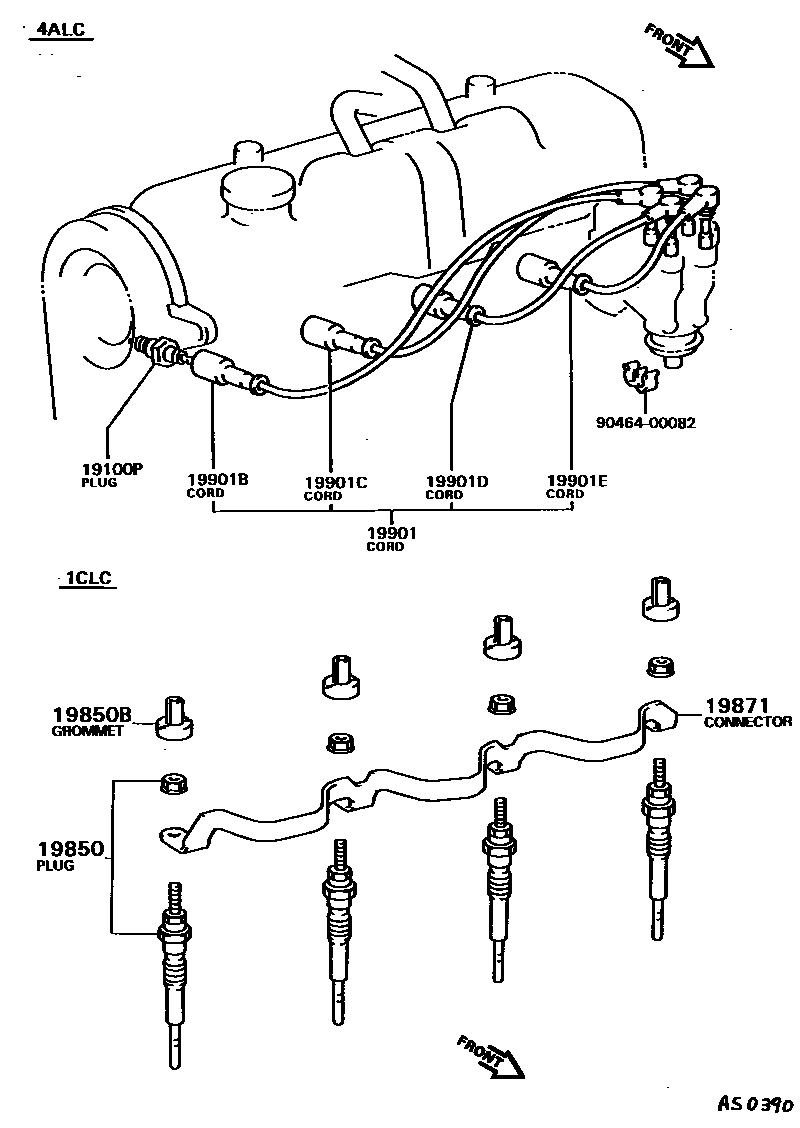

10 parts on this diagram · 1 diagram in section
