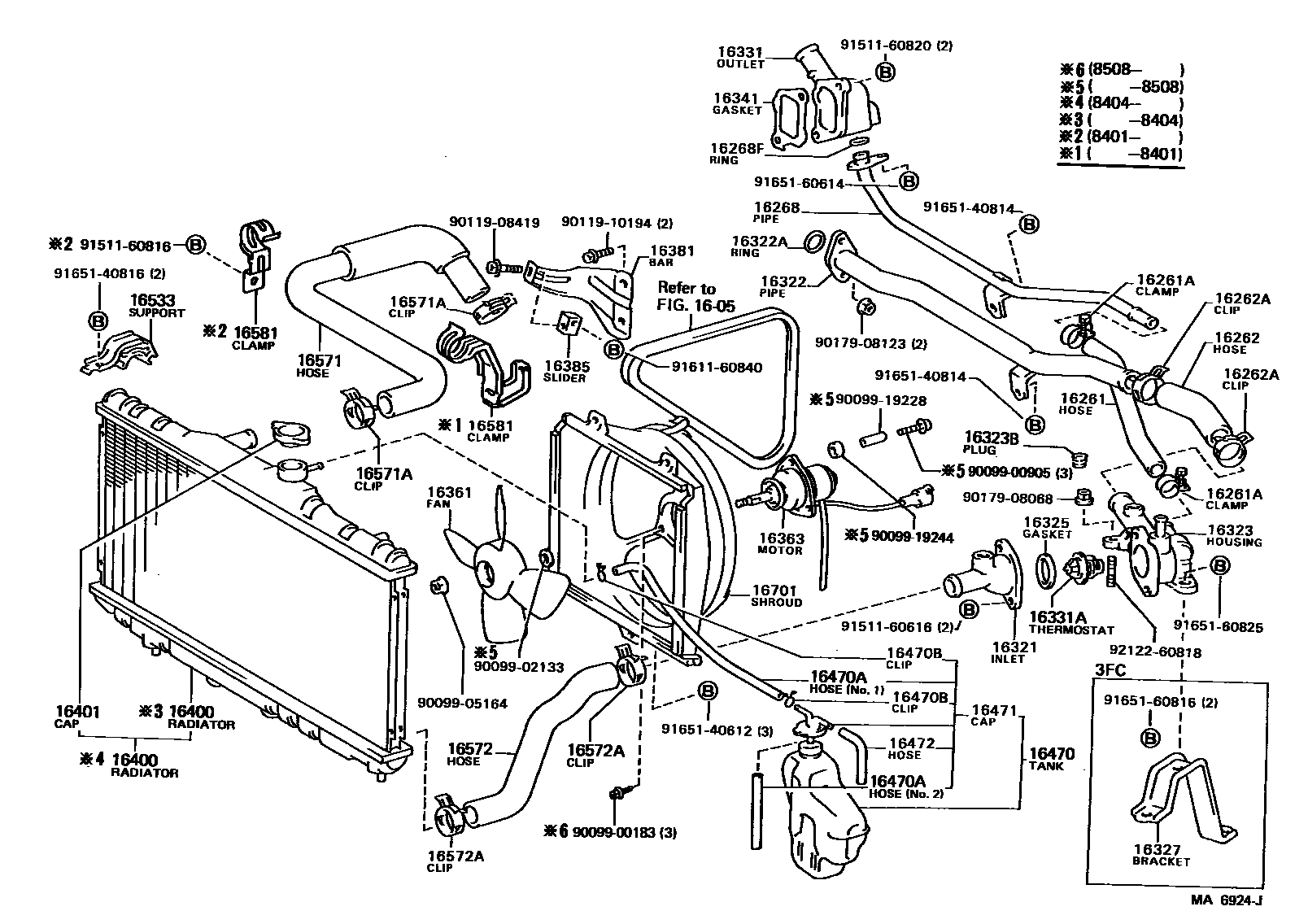

RADIATOR & WATER OUTLET
1605
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16262HOSE, WATER INLET
16268PIPE, WATER BY-PASS, NO.1
16268FRING, O(FOR WATER BY-PASS PIPE)
16322PIPE, WATER INLET
16322ARING, O(FOR WATER INLET)
sub96761-24035
16323HOUSING, WATER INLET
16323BPLUG(FOR WATER INLET HOUSING)
16325GASKET, WATER INLET HOUSING, NO.1
sub16325-63011
16327BRACKET, WATER INLET HOUSING
16331ATHERMOSTAT
*WAX 82-95
*WAX 82-95,*WAX 82-95
16361FAN
16363MOTOR, COOLING FAN
16385SLIDER, FAN BELT ADJUSTING
16400RADIATOR ASSY
sub16400-15200
sub16400-64080
sub16400-15190
sub16400-15200
sub16400-64070
sub16400-64080
16401CAP SUB-ASSY, RADIATOR
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=480
*H,L=340,NO.1;*H,L=220,NO.2
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16571HOSE, RADIATOR, INLET
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
WATER INLET SIDE
16581CLAMP, HOSE(FOR WATER HOSE)
9009900183
main90099-00183
9009900905
main90099-00905
9009902133
main90099-02133
9009905164
main90099-05164
9009919228
main90099-19228
9009919244
main90099-19244
9011908419
main90119-08419
9011910194
main90119-10194
9017908068
main90179-08068
9017908123
main90179-08123
9151160616
main91511-60616
9151160816
main91511-60816
9151160820
main91511-60820
9161160840
main91611-60840
9165140612
main91651-40612
9165140814
main91651-40814
9165140816
main91651-40816
9165160614
main91651-60614
9165160816
main91651-60816
9165160825
main91651-60825
9212260818
main92122-60818
56 parts on this diagram · 3 diagrams in section
