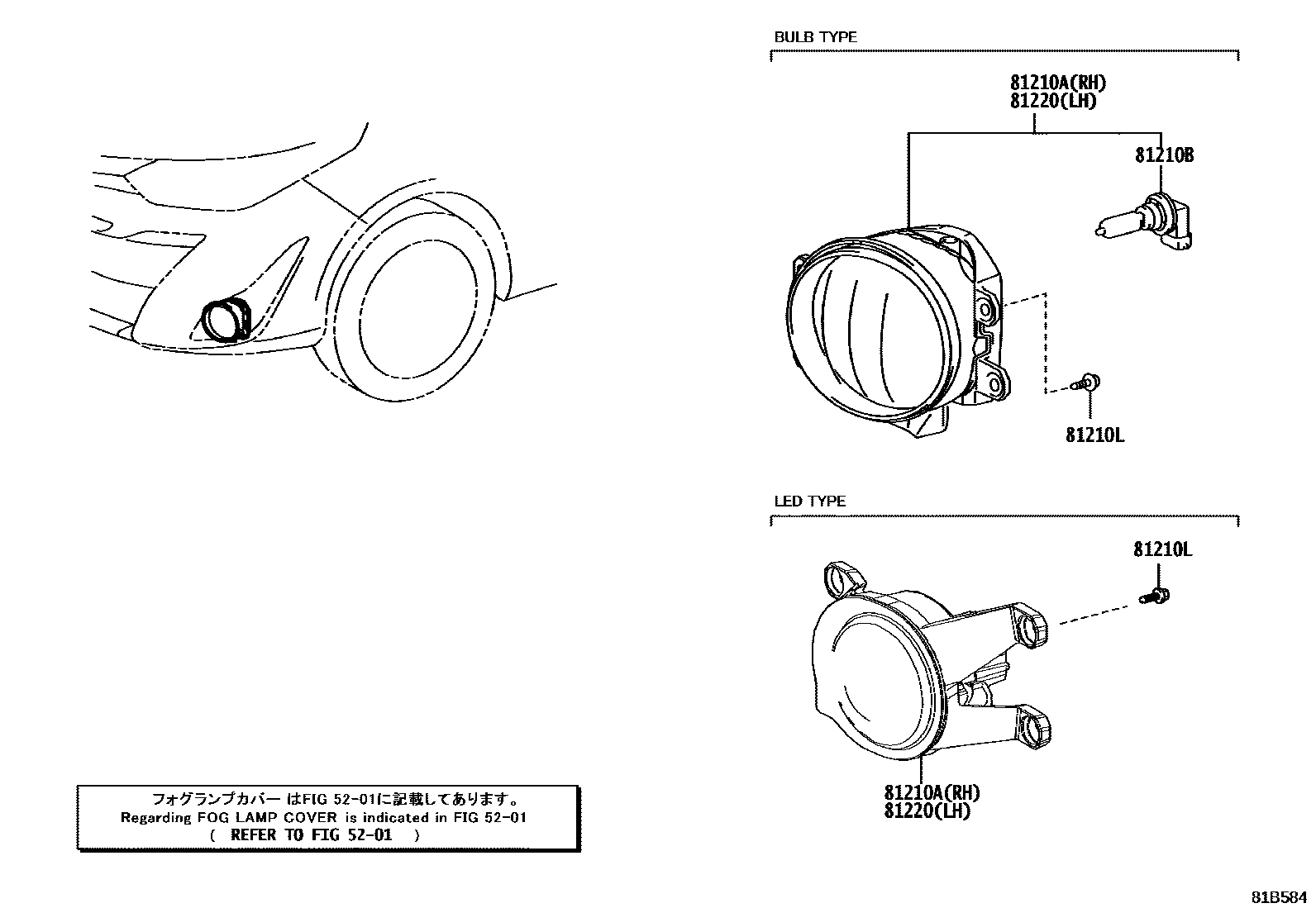

FOG LAMP

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-0D110iNSP150,151..(G,R)..(MA,PKN,VN); NSP150,151..(G,R)..(PKN,VN); NSP152202303

G PACKAGE; YP2 PACKAGE

main81210-02220iNSP151..MA202305-202307

YP1 PACKAGE

main81210-0K180iNSP151..MA202307

YP1 PACKAGE,KOITO MALAYSIA

81210BBULB, FOG LAMP

main90981-13090×2iNSP150,151..(G,R)..(MA,PKN,VN); NSP150,151..(G,R)..(PKN,VN); NSP152202303

12V 19W; 12V 19W,G PACKAGE; 12V 19W,YP2 PACKAGE

81210LSCREW(FOR FRONT FOG LAMP)

main90167-50063×6iNSP150,151..(G,R)..(MA,PKN,VN); NSP151..R..GEN; NSP152202303

G PACKAGE; YP2 PACKAGE

81220LAMP ASSY, FOG, LH

main81220-0D110iNSP150,151..(G,R)..(MA,PKN,VN); NSP150,151..(G,R)..(PKN,VN); NSP152202303

G PACKAGE; YP2 PACKAGE

main81220-02150iNSP151..MA202307

YP1 PACKAGE,THAI KOITO

main81220-0K180iNSP151..MA202307

YP1 PACKAGE,KOITO MALAYSIA

5 parts on this diagram · 1 diagram in section
