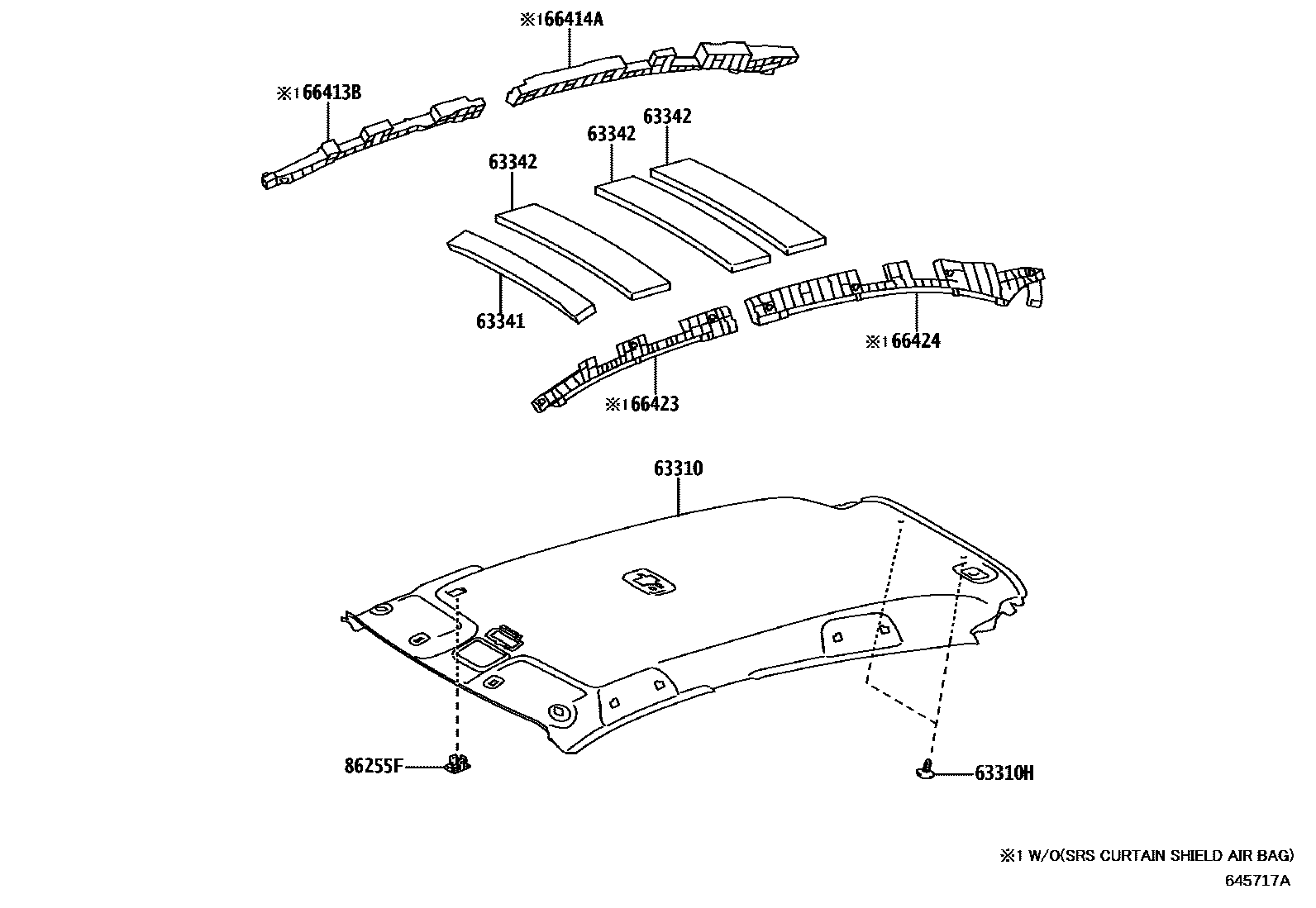

ROOF HEADLINING & SILENCER PAD
63310HEADLINING ASSY, ROOF
IVORY,TRIM0#
GRAY,TRIM2#
IVORY,TRIM0#
GRAY,TRIM2#
BLACK,TRIM0#; BLACK,TRIM0#,2#
BLACK,TRIM2#
ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM0#,2#; G PACKAGE&YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH&AUDIO-*DA & *BT & USB & 6SPEAKER,BLACK,TRIM2#
YP2 PACKAGE&AUDIO-*DA & *BT & USB & 6SPEAKER,GRAY,TRIM2#
63310HCLIP(FOR ROOF HEADLINING)
SHELL,TRIM0#
GRAY,TRIM2#
BLACK,TRIM0#,2#; BLACK,TRIM2#
63341PAD, ROOF SILENCER, NO.1
63342PAD, ROOF SILENCER, NO.2
66413BSPACER, SIDE RAIL, FRONT RH
66414ASPACER, SIDE RAIL, REAR RH
66423SPACER, SIDE RAIL, FRONT LH
66424SPACER, SIDE RAIL, REAR LH
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)
86255FCASE, MICROPHONE
BLACK,TRIM2#
9 parts on this diagram · 2 diagrams in section
