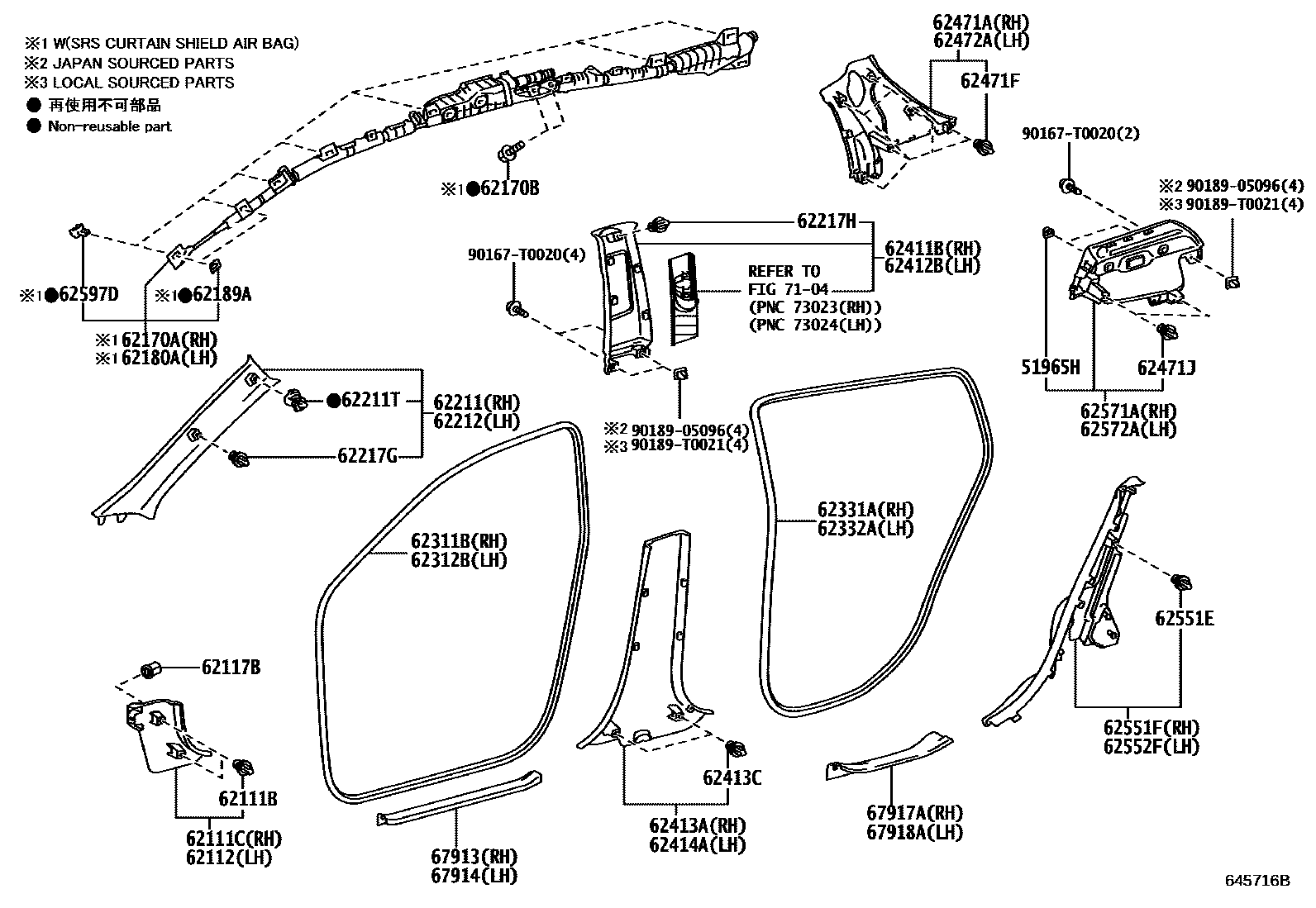

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

51965HHOOK, REAR

main51965-0D100-C0×4iNSP150,151..LHD..5D; NSP151,152..RHD..5D202303

BLACK,TRIM0#,2#; BLACK,TRIM2#

62111BCLIP(FOR COWL SIDE TRIM)

main90467-T0021×4iNSP15#202303

62111CBOARD, COWL SIDE TRIM, RH

main62111-0D250-C0iNSP151,152..RHD..5D202303

BLACK,TRIM2#

main62111-0D260-C0iNSP150,151..LHD..5D202303

BLACK,TRIM0#,2#

main62111-0D330-A0iNSP150,151..PKN202407

IVORY,TRIM0#

main62111-0D330-C0iNSP150,151..PKN202407

BLACK,TRIM2#

main62111-0D370-A0iNSP151..4D..CVT..VN202304

IVORY,TRIM0#

main62111-0D370-C0iNSP151..4D..VN202304

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-0D290-C0iNSP151,152..RHD..5D202303

BLACK,TRIM2#

main62112-0D300-C0iNSP150,151..LHD..5D202303

BLACK,TRIM0#,2#

main62112-0D370-A0iNSP151..4D..CVT..VN202304

IVORY,TRIM0#

main62112-0D370-C0iNSP151..4D..VN202304

BLACK,TRIM2#

main62112-0D380-A0iNSP150,151..PKN202407

IVORY,TRIM0#

main62112-0D380-C0iNSP150,151..PKN202407

BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147×2iNSP15#202303

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0D080iNSP151..4D..G..VN; NSP151..R..VN202304

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)

main62170-0D090iNSP15#..5D..(GEN,MA,TH,VN)202303

62170BBOLT, W/WASHER

main91673-80616×4iNSP15#..5D..(GEN,MA,TH,VN)202303

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0D080iNSP151..4D..G..VN; NSP151..R..VN202304

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)

main62180-0D090iNSP15#..5D..(GEN,MA,TH,VN)202303

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010×4iNSP151..4D..G..VN;NSP15#..5D..(GEN,MA,TH,VN)202303

62211GARNISH, FRONT PILLAR, RH

main62211-0D810-B0iNSP150..GCC; NSP151..R..VN202304

GRAY,TRIM2#; GRAY,TRIM23

main62211-0D810-C0iNSP150..GCC202304

BLACK,TRIM0#,26

main62211-0D830-C0supersedes 62211-0D840-C0iNSP151..D; NSP152202303

BLACK,TRIM0#,2#; ECO PACKAGE,BLACK,TRIM2#

main62211-0D840-A0supersedes 62211-0D810-A0iNSP151..4D..G..VN; NSP151..CVT..R..VN202304

IVORY,TRIM0#; SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),IVORY,TRIM0#

main62211-0D840-B0supersedes 62211-0D810-B0iNSP15#..5D..(G,R)..(GEN,TH,VN); NSP151..4D..G..VN; NSP151..R..VN202304

GRAY,TRIM2#; GRAY,TRIM23; SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),GRAY,TRIM2#

main62211-0D840-C0iNSP150..GEN; NSP151..5D..VN; NSP151..R..GEN; NSP152202304

BLACK,TRIM0#,23; BLACK,TRIM0#,23,26; BLACK,TRIM0#,26; BLACK,TRIM23,26

main62211-0DA80-C0iNSP151..MA202305

BLACK,TRIM2#

main62211-0DB10-A0iNSP150,151..PKN202407

IVORY,TRIM0#

main62211-0DB10-B0iNSP150,151..PKN202407

GRAY,TRIM2#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main62217-52120×2iNSP151..4D..G..VN;NSP15#..5D..(GEN,MA,TH,VN)202303

main90467-T0021×2iNSP151..R..VN;NSP150,151..GCC,PKN202303

62212GARNISH, FRONT PILLAR, LH

main62212-0D810-B0iNSP150..GCC; NSP151..R..VN202304

GRAY,TRIM2#; GRAY,TRIM23

main62212-0D810-C0iNSP150..GCC202304

BLACK,TRIM0#,26

main62212-0D830-C0supersedes 62212-0D840-C0iNSP151..D; NSP152202303

BLACK,TRIM0#,2#; ECO PACKAGE,BLACK,TRIM2#

main62212-0D840-A0supersedes 62212-0D810-A0iNSP151..4D..G..VN; NSP151..CVT..R..VN202304

IVORY,TRIM0#; SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),IVORY,TRIM0#

main62212-0D840-B0supersedes 62212-0D810-B0iNSP15#..5D..(G,R)..(GEN,TH,VN); NSP151..4D..G..VN; NSP151..R..VN202304

GRAY,TRIM2#; GRAY,TRIM23; SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),GRAY,TRIM2#

main62212-0D840-C0iNSP150..GEN; NSP151..5D..VN; NSP151..R..GEN; NSP152202304

BLACK,TRIM0#,23; BLACK,TRIM0#,23,26; BLACK,TRIM0#,26; BLACK,TRIM23,26

main62212-0DA80-C0iNSP151..MA202305

BLACK,TRIM2#

main62212-0DB10-A0iNSP150,151..PKN202407

IVORY,TRIM0#

main62212-0DB10-B0iNSP150,151..PKN202407

GRAY,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main90467-T0021×2iNSP15#202303

62217HCLIP, CENTER PILLER GARNISH

main90467-10188×2iNSP15#202303

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0D250iNSP15#..GCC,GEN,PKN,TH,VN202303

main62311-0D260iNSP151..MA202305

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0D220iNSP15#..GCC,GEN,PKN,TH,VN202303

main62312-0D260iNSP151..MA202305

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0D150iNSP150,151..4D202304

main62331-0D340iNSP15#..5D..(GCC,GEN,TH,VN)202303

main62331-0D390iNSP151..MA202305

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0D130iNSP150,151..4D202304

main62332-0D340iNSP15#..5D..(GCC,GEN,TH,VN)202303

main62332-0D390iNSP151..MA202305

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-0D020-A0iNSP151..4D..CVT..VN202304

IVORY,TRIM0#

main62410-0D020-B0iNSP15#..5D..(G,R)..(GCC,GEN,TH,VN); NSP151..4D..VN202304

GRAY,TRIM2#; GRAY,TRIM23

main62410-0D020-C0iNSP150..R; NSP151..5D..VN; NSP151..R..GEN; NSP152202304

BLACK,TRIM0#,23; BLACK,TRIM0#,23,26; BLACK,TRIM0#,26; BLACK,TRIM23,26

main62410-0D080-A0iNSP150,151..PKN202407

IVORY,TRIM0#

main62410-0D080-B0iNSP150,151..PKN202407

GRAY,TRIM2#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-0D020-A0iNSP151..4D..CVT..VN202304

IVORY,TRIM0#

main62420-0D020-B0iNSP15#..5D..(G,R)..(GCC,GEN,TH,VN); NSP151..4D..VN202304

GRAY,TRIM2#; GRAY,TRIM23

main62420-0D020-C0iNSP151..D; NSP151..MA202303

BLACK,TRIM0#,2#; BLACK,TRIM2#

main62420-0D080-A0iNSP150,151..PKN202407

IVORY,TRIM0#

main62420-0D080-B0iNSP150,151..PKN202407

GRAY,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0D370-A0iNSP151..4D..CVT..VN202304

IVORY,TRIM0#

main62413-0D370-C0iNSP150,151..LHD..5D; NSP152;NSP151..4D..VN202303

BLACK,TRIM0#,2#; BLACK,TRIM2#

main62413-0D390-C0iNSP151..MA202305

BLACK,TRIM2#

main62413-0D460-A0iNSP150,151..PKN202407

IVORY,TRIM0#

main62413-0D460-C0iNSP150,151..PKN202407

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-T0021×4iNSP15#202303

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0D370-A0iNSP151..4D..CVT..VN202304

IVORY,TRIM0#

main62414-0D370-C0iNSP150,151..LHD..5D; NSP152;NSP151..4D..VN202303

BLACK,TRIM0#,2#; BLACK,TRIM2#

main62414-0D390-C0iNSP151..MA202305

BLACK,TRIM2#

main62414-0D460-A0iNSP150,151..PKN202407

IVORY,TRIM0#

main62414-0D460-C0iNSP150,151..PKN202407

BLACK,TRIM2#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-0D390-A0iNSP150,151..PKN202407

IVORY,TRIM0#

main62471-0D390-B0iNSP150,151..PKN202407

GRAY,TRIM2#

main62471-0D670-C0iNSP150..GCC202303

BLACK,TRIM0#,2#

main62471-0D680-C0iNSP150,151..5D..(GEN,VN); NSP151,152..RHD..5D202303

BLACK,TRIM0#,2#; BLACK,TRIM2#

main62471-0DB70-A0supersedes 62471-0D760-A0iNSP151..4D..G..VN; NSP151..CVT..R..VN202304

IVORY,TRIM0#; SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),IVORY,TRIM0#

main62471-0DB70-B0supersedes 62471-0D760-B0iNSP151..4D..G..VN; NSP151..R..VN202304

GRAY,TRIM2#; SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),GRAY,TRIM2#

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main90467-T0021×3iNSP151..4D..G..VN; NSP151..R..VN; NSP151..R..VN;NSP150,151..PKN202304

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10167×2iNSP151..4D..G..VN; NSP151..R..VN; NSP151..R..VN;NSP150,151..PKN202304

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)

main90467-T0021×4iNSP15#..5D202303

62472AGARNISH, ROOF SIDE, INNER LH

main62472-0DA60-C0iNSP150..GCC202303

BLACK,TRIM0#,2#

main62472-0DA70-C0iNSP150,151..5D..(GEN,VN); NSP151,152..RHD..5D202303

BLACK,TRIM0#,2#; BLACK,TRIM2#

main62472-0DC60-A0iNSP150,151..PKN202407

IVORY,TRIM0#

main62472-0DC60-B0iNSP150,151..PKN202407

GRAY,TRIM2#

main62472-0DD10-A0supersedes 62472-0D760-A0iNSP151..4D..G..VN; NSP151..CVT..R..VN202304

IVORY,TRIM0#; SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),IVORY,TRIM0#

main62472-0DD10-B0supersedes 62472-0D760-B0iNSP151..4D..G..VN; NSP151..R..VN202304

GRAY,TRIM2#; SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),GRAY,TRIM2#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-10188×2iNSP15#202303

62551FGARNISH, REAR SEAT SIDE, RH

main62551-0D320-A0iNSP150,151..PKN202407

IVORY,TRIM0#

main62551-0D320-C0iNSP150,151..PKN202407

BLACK,TRIM2#

main62551-0D390-A0iNSP151..4D..CVT..VN202304

IVORY,TRIM0#

main62551-0D390-C0iNSP151..4D..VN202304

BLACK,TRIM2#

main62551-0D470-C0iNSP150,151..LHD..5D; NSP151,152..RHD..5D202303

BLACK,TRIM0#,2#; BLACK,TRIM2#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-0D280-A0iNSP150,151..PKN202407

IVORY,TRIM0#

main62552-0D280-C0iNSP150,151..PKN202407

BLACK,TRIM2#

main62552-0D390-A0iNSP151..4D..CVT..VN202304

IVORY,TRIM0#

main62552-0D390-C0iNSP151..4D..VN202304

BLACK,TRIM2#

main62552-0D450-C0iNSP150,151..LHD..5D; NSP151,152..RHD..5D202303

BLACK,TRIM0#,2#; BLACK,TRIM2#

62571AGARNISH, ROOF SIDE, INNER LOWER RH

main62571-0D060-C0iNSP150,151..LHD..5D; NSP151,152..RHD..5D202303

BLACK,TRIM0#,2#; BLACK,TRIM2#

62572AGARNISH, ROOF SIDE INNER LOWER LH

main62572-0D060-C0iNSP150,151..LHD..5D; NSP151,152..RHD..5D202303

BLACK,TRIM0#,2#; BLACK,TRIM2#

62597DCLIP

main90467-18017×14iNSP15#..5D..(GEN,MA,TH,VN)202303

67913PLATE, FRONT DOOR SCUFF, RH

main67913-0D250-C0iNSP150,151..LHD..5D; NSP152202303

BLACK,TRIM0#,2#; BLACK,TRIM2#

main67913-0D280-C0iNSP151..MA202305

BLACK,TRIM2#

main67913-0D330-A0iNSP151..4D..CVT..VN202304

IVORY,TRIM0#

main67913-0D330-C0iNSP151..4D..VN202304

BLACK,TRIM2#

main67913-0D340-A0iNSP150,151..PKN202407

IVORY,TRIM0#

main67913-0D340-C0iNSP150,151..PKN202407

BLACK,TRIM2#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-0D240-C0iNSP150,151..LHD..5D; NSP152202303

BLACK,TRIM0#,2#; BLACK,TRIM2#

main67914-0D270-C0iNSP151..MA202305

BLACK,TRIM2#

main67914-0D320-A0iNSP151..4D..CVT..VN202304

IVORY,TRIM0#

main67914-0D320-C0iNSP151..4D..VN202304

BLACK,TRIM2#

main67914-0D330-A0iNSP150,151..PKN202407

IVORY,TRIM0#

main67914-0D330-C0iNSP150,151..PKN202407

BLACK,TRIM2#

67917APLATE, REAR DOOR SCUFF, RH

main67917-0D180-C0iNSP150,151..LHD..5D; NSP152202303

BLACK,TRIM0#,2#; BLACK,TRIM2#

main67917-0D210-C0iNSP151..MA202305

BLACK,TRIM2#

main67917-0D260-A0iNSP151..4D..CVT..VN202304

IVORY,TRIM0#

main67917-0D260-C0iNSP151..4D..VN202304

BLACK,TRIM2#

main67917-0D270-A0iNSP150,151..PKN202407

IVORY,TRIM0#

main67917-0D270-C0iNSP150,151..PKN202407

BLACK,TRIM2#

67918APLATE, REAR DOOR SCUFF, LH

main67918-0D180-C0iNSP150,151..LHD..5D; NSP152202303

BLACK,TRIM0#,2#; BLACK,TRIM2#

main67918-0D210-C0iNSP151..MA202305

BLACK,TRIM2#

main67918-0D260-A0iNSP151..4D..CVT..VN202304

IVORY,TRIM0#

main67918-0D260-C0iNSP151..4D..VN202304

BLACK,TRIM2#

main67918-0D270-A0iNSP150,151..PKN202407

IVORY,TRIM0#

main67918-0D270-C0iNSP150,151..PKN202407

BLACK,TRIM2#

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

90167T0020

main90167-T0020

9018905096

main90189-05096

90189T0021

main90189-T0021

41 parts on this diagram · 2 diagrams in section
