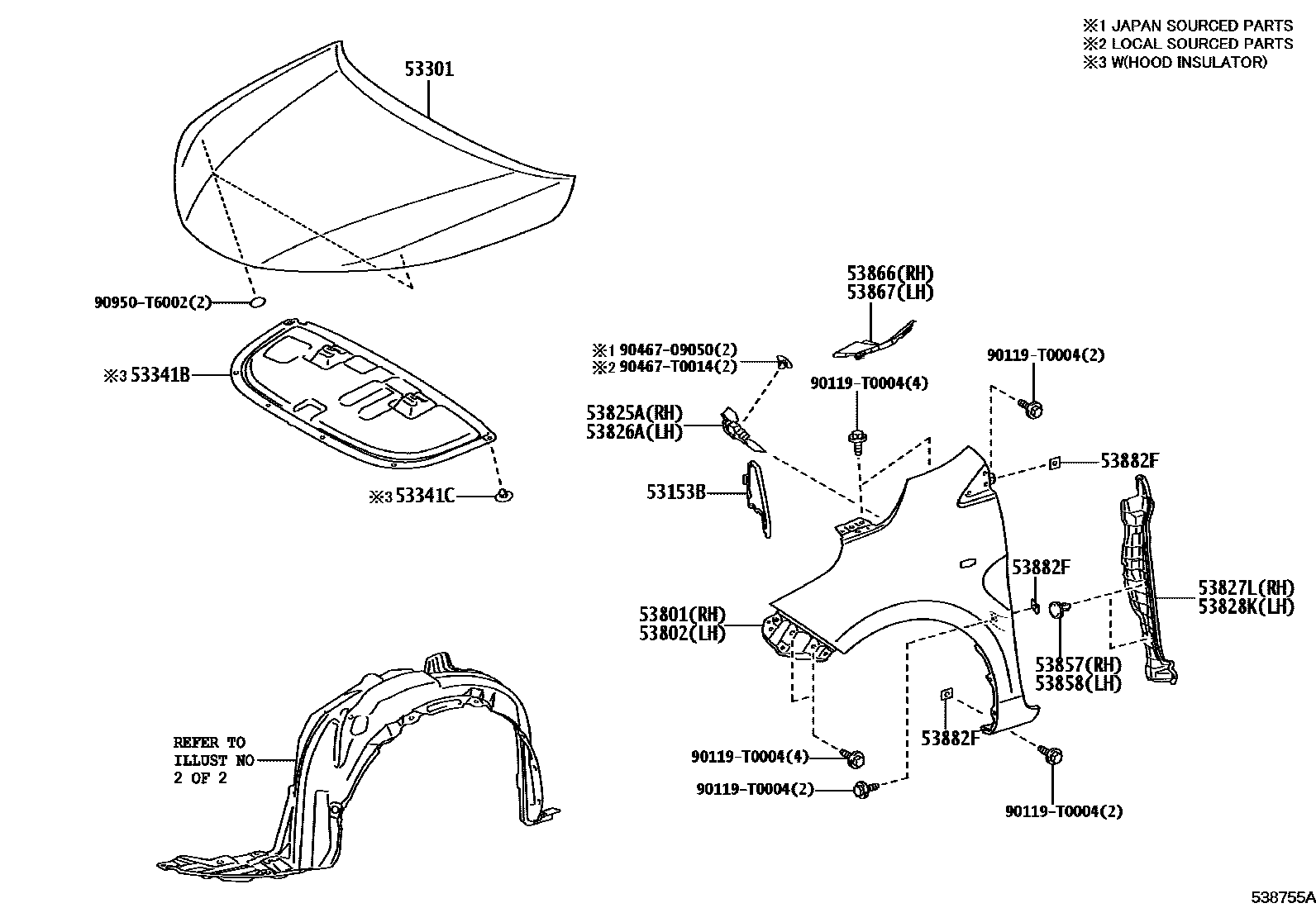

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153BGUIDE, FRONT SIDE AIR

main53153-0D040×2iNSP15#202303

53301HOOD SUB-ASSY

main53301-0D280iNSP15#..GCC,GEN,TH,VN202303

main53301-0D300iNSP151..MA202305

main53301-0D360iNSP150,151..PKN202407

53341BINSULATOR, HOOD

main53341-0D310iNSP15#..5D..(G,R)..(GCC,GEN,TH,VN); NSP152202303

ECO PACKAGE

main53341-0D330iNSP151..MA202305

main53341-0D390iNSP151..4D..VN202304

53341CCLIP(FOR HOOD INSULATOR)

main90467-T0014×6iNSP15#..(G,R)..(GCC,GEN,MA,TH,VN); NSP152202303

ECO PACKAGE

53801FENDER SUB-ASSY, FRONT RH

main53801-0D090iNSP150,151..GCC,GEN; NSP152202303

ECO PACKAGE

main53801-0D100iNSP151,152..TH,VN; NSP151..R..GEN202303

E-SPORT PACKAGE(GRADE MARK(S))&YP2 PACKAGE

main53801-0D160iNSP151..MA202305

main53801-0D260iNSP150,151..PKN202407

53802FENDER SUB-ASSY, FRONT LH

main53802-0D090iNSP150,151..GCC,GEN; NSP152202303

ECO PACKAGE

main53802-0D100iNSP151,152..TH,VN; NSP151..R..GEN202303

E-SPORT PACKAGE(GRADE MARK(S))&YP2 PACKAGE

main53802-0D160iNSP151..MA202305

main53802-0D260iNSP150,151..PKN202407

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-0D040iNSP151..5D..VN;NSP15#..GCC,GEN,PKN,TH202303

main53825-0D060iNSP151..MA202305

main53825-0D110iNSP151..4D..VN202304

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-0D040iNSP151..5D..VN;NSP15#..GCC,GEN,PKN,TH202303

main53826-0D060iNSP151..MA202305

main53826-0D110iNSP151..4D..VN202304

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0D211iNSP15#..5D..(GCC,GEN,TH,VN)202303

main53827-0D231iNSP151..MA202305

main53827-0D311iNSP150,151..PKN202407

main53827-0D380iNSP151..4D..VN202304

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0D211iNSP15#..5D..(GCC,GEN,TH,VN)202303

main53828-0D231iNSP151..MA202305

main53828-0D311iNSP150,151..PKN202407

main53828-0D380iNSP151..4D..VN202304

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-0K010×2iNSP15#202303

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-0K010×2iNSP15#202303

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0D220iNSP15#202303

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0D220iNSP15#202303

53882FSEAL, FRONT FENDER

main53882-33060×6iNSP15#202303

90119T0004

main90119-T0004

9046709050

main90467-09050

90467T0014

main90467-T0014

90950T6002

main90950-T6002

19 parts on this diagram · 2 diagrams in section
