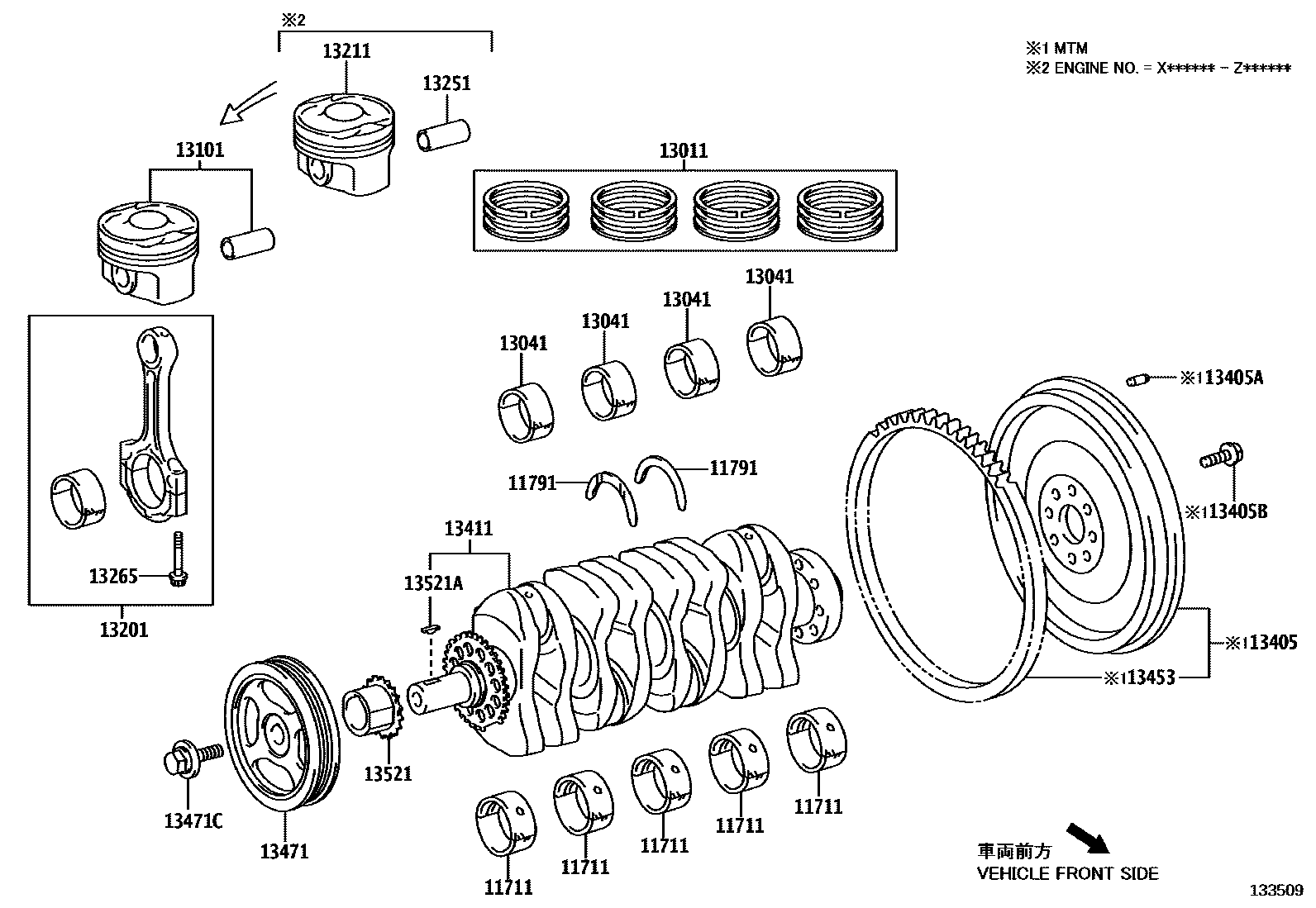

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK2,(L),REFER R/M; MARK2,REFER REPAIR MANUAL
MARK3,(L),REFER R/M; MARK3,REFER REPAIR MANUAL
MARK4,(L),REFER R/M; MARK4,REFER REPAIR MANUAL
MARK5,(L),REFER R/M; MARK5,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
MARK2,(J),REFER R/M
MARK3,(J),REFER R/M
MARK4,(J),REFER R/M
MARK5,(J),REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,*712 OR *432
STD,*264
STD
STD
13011RING SET, PISTON
STD,*264; STD,*712 OR *432
STD
13041BEARING, CONNECTING ROD
main13041-0Y040-01×4i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN); 1NRFE,2NRFE..NSP150,151..LHD202303
MARK1,*264:REFER R/M; MARK1,*712 OR *432:*RRM
main13041-0Y040-02×4i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN); 1NRFE,2NRFE..NSP150,151..LHD202303
MARK2,*264:REFER R/M; MARK2,*712 OR *432:*RRM
main13041-0Y040-03×4i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN); 1NRFE,2NRFE..NSP150,151..LHD202303
MARK3,*264:REFER R/M; MARK3,*712 OR *432:*RRM
13101PISTON SUB-ASSY, W/PIN
STD
STD,*712 OR *432
STD,*712 OR *432
13201ROD SUB-ASSY, CONNECTING
*264
*712 OR *432
*712 OR *432
13251PIN, PISTON
*264
13265BOLT, CONNECTING ROD
(L),*712 OR *432
main13265-21020×8i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN); 1NRFE,2NRFE..NSP150,151..LHD202303
(J),*264; (J),*712 OR *432
13405FLYWHEEL SUB-ASSY
*264; *712 OR *432
*712 OR *432,*264
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8,*264; L=18,OD=8,*712 OR *432
13405BBOLT, FLYWHEEL SETTING
*264; *712 OR *432
13411CRANKSHAFT
*264
*712 OR *432
*712 OR *432
13453GEAR, FLYWHEEL RING
*264; *712 OR *432
13471PULLEY, CRANKSHAFT
*264
*712 OR *432
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-T0444i1NRFE,2NRFE,3NRFKE..NSP15#..RHD; 1NRFE,2NRFE..NSP150,151..LHD; 1NRFE,2NRFE..NSP150,151..LHD..5D202303
*264; *712 OR *432
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
*264
*712 OR *432
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main90280-04001i1NRFE,2NRFE,3NRFKE..NSP15#..RHD; 1NRFE,2NRFE..NSP150,151..LHD; 1NRFE,2NRFE..NSP150,151..LHD..5D202303
*264; *712 OR *432
18 parts on this diagram · 1 diagram in section
