E
EPC Data

SIDE MOULDING

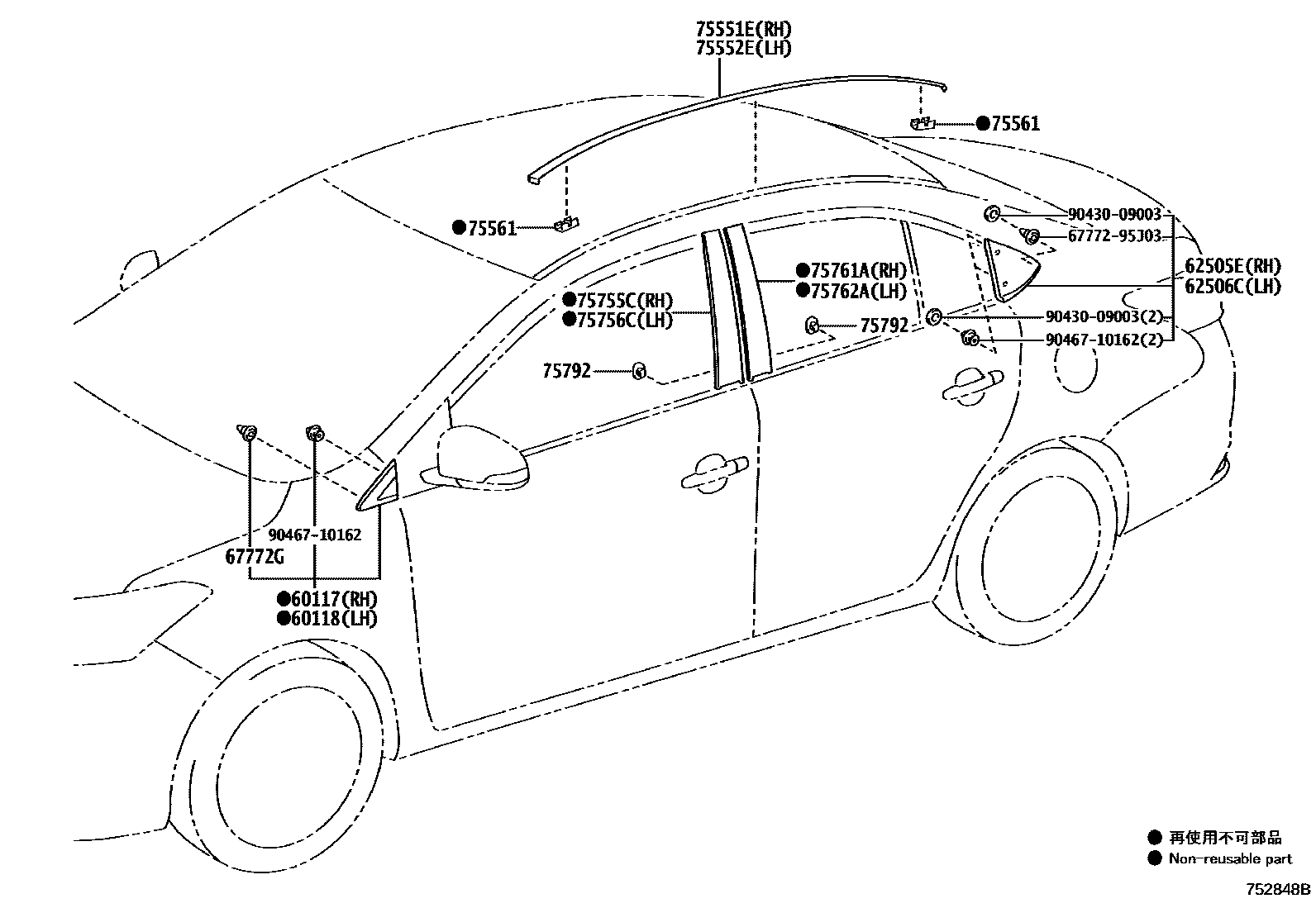

Parts diagram
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
main60117-0D130i201304-201603
main60117-0D150i201404-201604
main60117-0D160i201310-201812
main60117-0D170i201312-201712
main60117-0D230i201708-202108
main60117-0D240i201801-202207
main60117-0D250i201901-202011
main60117-0D260i201803-202101
main60117-0D270i201804-201908
main60117-0D280i201807-201910
main60117-0D290i202003-202406
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
main60118-0D130i201304-201606
main60118-0D150i201404-201604
main60118-0D160i201310-201812
main60118-0D170i201312-201712
main60118-0D230i201708-202207
main60118-0D240i201801-202207
main60118-0D250i201901-202011
main60118-0D260i201803-202101
main60118-0D270i201804-201908
main60118-0D280i201807-201910
main60118-0D290i202003-202406
62505ECOVER SUB-ASSY, QUARTER PILLAR, RH
main62505-0D020i201304
NO PAINT REQ.
main62505-0D060i201404-201604
NO PAINT REQ.
main62505-0D070i201312-201712
NO PAINT REQ.
main62505-0D110i201708-202108
NO PAINT REQ.
main62505-0D120i201801-202207
NO PAINT REQ.
main62505-0D130i201803-202101
NO PAINT REQ.
main62505-0D140i201804-201908
NO PAINT REQ.
main62505-0D150i201807-201910
NO PAINT REQ.
main62505-0D200i201901-202011
NO PAINT REQ.
62506CCOVER SUB-ASSY, QUARTER PILLAR, LH
main62506-0D020i201304-201603
main62506-0D060i201404-201604
main62506-0D070i201312-201712
main62506-0D110i201708-202108
main62506-0D120i201801-202207
main62506-0D130i201803-202101
main62506-0D140i201804-201908
main62506-0D150i201807-201910
main62506-0D200i201901-202011
67772GCAP, FRONT PILLAR COVER
main67772-95J03×2i201304
75551EMOULDING, ROOF DRIP SIDE FINISH, RH
main75551-0D160i201708-202012
main75551-0D161i202101-202406
main75551-0D190i201404-201802
main75551-0D200i201310-201812
main75551-0D220i201801-202207
main75551-0D310i201804-201908
main75551-0D320i201807-201910
main75551-0D390i201808-201912
75552EMOULDING, ROOF DRIP SIDE FINISH, LH
main75552-0D110i201304-201610
main75552-0D111i202101
main75552-0D140i201404-201802
main75552-0D150i201901-202011
main75552-0D170i201801-202108
main75552-0D270i201804-201908
main75552-0D280i201807-201910
main75552-0D350i201808-201912
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
main75561-33030×4i201304-201506
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
main75755-0D040i201304-201709
main75755-0D060i201404-201604
main75755-0D070i201801-202207
main75755-0D090i201804-201908
main75755-0D100i201807-201910
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
main75756-0D040i201304-201603
main75756-0D060i201803-202101
main75756-0D070i201312-201712
main75756-0D090i201804-201908
main75756-0D100i201807-201910
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
main75761-0D020i201304-201603
NO PAINT REQ.
main75761-0D040i201803-202101
NO PAINT REQ.
main75761-0D050i201312-201609
NO PAINT REQ.
main75761-0D070i201807-201910
NO PAINT REQ.
main75761-0D080i201804-201908
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
main75762-0D020i201708-202406
main75762-0D040i201803-202101
NO PAINT REQ.
main75762-0D050i201312-201712
NO PAINT REQ.
main75762-0D070i201807-201910
NO PAINT REQ.
main75762-0D080i201804-201908
NO PAINT REQ.
75792CLIP, DOOR WINDOW FRAME MOULDING
main75792-0D010×4i201404-201604
(L)
main75792-0D020×4i201304-201712
main75792-0D040×4i201312-201609
main75792-47010×4i201803-202101
(J)
6777295J03WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-95J03
9043009003
main90430-09003
9046710162
main90467-10162

16 parts on this diagram · 1 diagram in section
