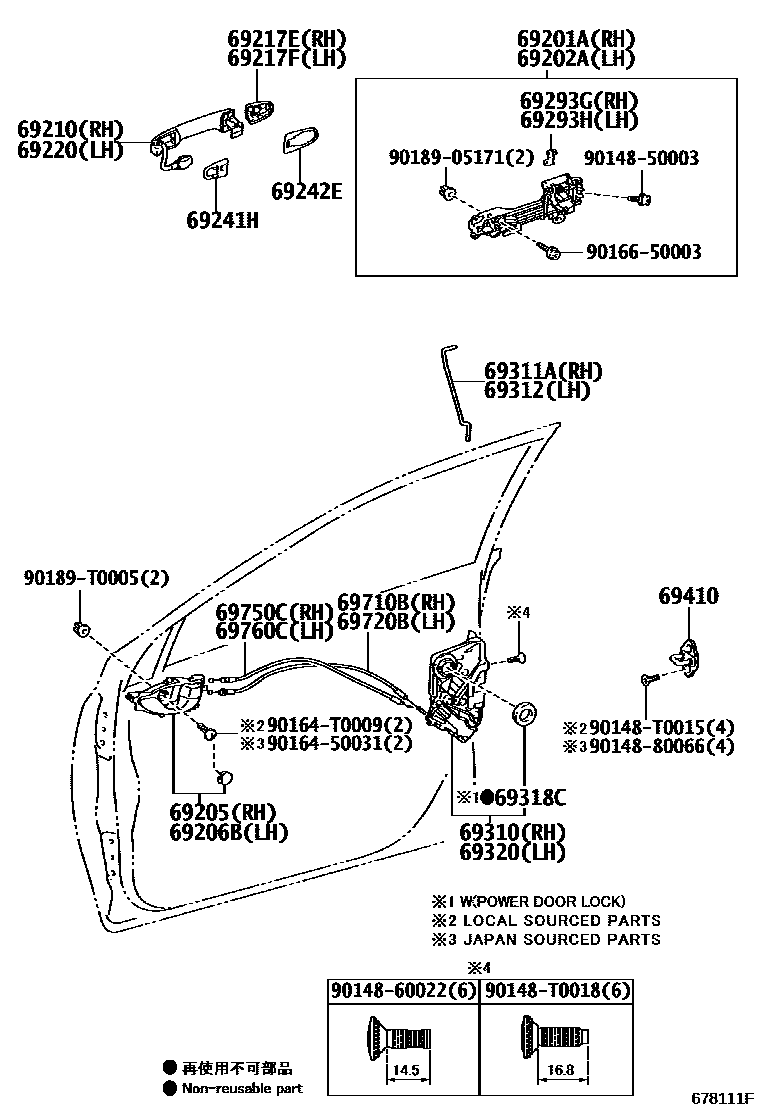

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-0K061iNSP152..HTWC;NSP150,151..D,E;NSP151..(BZ,MA)..V;NSP151..(MA,PKN)..(D,G,R)201708-202406
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
IVORY,TRIM0#
BRUNEI SPEC,IVORY,TRIM0#
BLACK,TRIM2#
BRUNEI SPEC,BLACK,TRIM2#
IVORY,TRIM0#
IVORY,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
IVORY,TRIM0#
IVORY,TRIM0#
IVORY,TRIM0#
E-SPORT PACKAGE(GRADE MARK(S)),BLACK,TRIM2#
BLACK,TRIM2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
IVORY,TRIM0#
BRUNEI SPEC,IVORY,TRIM0#
BLACK,TRIM2#
BRUNEI SPEC,BLACK,TRIM2#
IVORY,TRIM0#
IVORY,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
IVORY,TRIM0#
IVORY,TRIM0#
IVORY,TRIM0#
BLACK,TRIM2#
E-SPORT PACKAGE(GRADE MARK(S)),BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
PLATED
PLATED,G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
PAINT REQ.
PAINT REQ.
PLATED
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D4
ATTITUDE BLACK MC.,218
RED M.M.,3R3
DK.BLUE M.M.,8W7
NO PAINT REQ.
PLATED
PLATED
PAINT REQ.
PAINT REQ.
PAINT REQ.
PLATED
NO PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.,J-HI PACKAGE(DOOR OUTSIDE HANDLE(PAINT))
PAINT REQ.
PLATED
NO PAINT REQ.
PAINT REQ.
PAINT REQ.
NO PAINT REQ.
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
BLACK
*CR
LESS COLOR
BLACK MATERIAL
LESS COLOR
*CR
*CR,G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
*CR
LESS COLOR
BLACK MATERIAL
*CR
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
BLACK
*CR
*CR,G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
LESS COLOR
*CR,(L)
BLACK MATERIAL
LESS COLOR
*CR,(J)
*CR
*CR
LESS COLOR
*CR
LESS COLOR
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED,(J)
PLATED
PAINT REQ.
PAINT REQ.
PLATED
PLATED,(L)
SUPER WHITE 2,040
WHITE PEARL CS.,070
XL-PLUS PACKAGE,WHITE PEARL CS.,070
SILVER ME.,1F7
XL-PLUS PACKAGE,GRAY ME.,1G2
GRAY ME.,1G2
GRAY ME.,1G3
SILVER ME.,1H6
XL-PLUS PACKAGE,SILVER ME.,1H6
XL-PLUS PACKAGE,FLUID TITANIUM ME.,1K1
FLUID TITANIUM ME.,1K1
BLACK MC.,209
BLACK MC.,215
XL-PLUS PACKAGE,BLACK MC.,215
XL-PLUS PACKAGE,SUPER RED 5,3P0
SUPER RED 5,3P0
RED M.M.,3R3
GRAYISH BLUE M.M.,8V5
XL-PLUS PACKAGE,GRAYISH BLUE M.M.,8V5
DK.BLUE M.M.,8W7
NO PAINT REQ.
PAINT REQ.
PAINT REQ.
PLATED
PLATED
PLATED
PLATED
NO PAINT REQ.
main69210-0K901iNSP150..GEN..D..A;NSP151..MA..(D,R);NSP150,152..R..(A,D);NSP150,151..GCC..G..A;NSP151..LHD..(D,R)..(A,E)201708-202207
PAINT REQ.
sub69210-0K924
PAINT REQ.
PAINT REQ.
PAINT REQ.,J-HI PACKAGE(DOOR OUTSIDE HANDLE(PAINT))
PAINT REQ.
PLATED
PLATED,G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
NO PAINT REQ.
PAINT REQ.
PAINT REQ.
NO PAINT REQ.
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
G-HIGH PACKAGE
main69030-0D390iNSP151..GCC..G..A;NSP150..GCC..(G,R)..A;NSP151..LHD..(D,R)..(A,E);NSP150..LHD..(GEN,PH,VN)..(D,R)..(A,D,E)201307-202207
LATIN AMERICA SPEC&J-LO PACKAGE(FOR LATIN AMERICA)
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-0D230iNSP150..CVT..G..A;NSP151..LHD..GEN..A;NSP151..RHD..(GEN,MA);NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP151..(GCC,PH,TH,VN)..(A,D,E);NSP150,152..(GEN,PH,TH,201708-202207
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
SPORT PACKAGE
LATIN AMERICA SPEC&J-LO PACKAGE(FOR LATIN AMERICA)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-0D280iNSP150..CVT..G..A;NSP151..LHD..GEN..A;NSP151..RHD..(GEN,MA);NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP151..(GCC,PH,TH,VN)..(A,D,E);NSP150,152..(GEN,PH,TH,201708-202207
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-0D220iNSP150..CVT..G..A;NSP151..LHD..GEN..A;NSP151..RHD..(GEN,MA);NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP151..(GCC,PH,TH,VN)..(A,D,E);NSP150,152..(GEN,PH,TH,201708-202207
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
90148T0015
main90148-T0015
90148T0018
main90148-T0018
9016450031
main90164-50031
90164T0009
main90164-T0009
9016650003
main90166-50003
9018905171
main90189-05171
90189T0005
main90189-T0005
32 parts on this diagram · 2 diagrams in section
