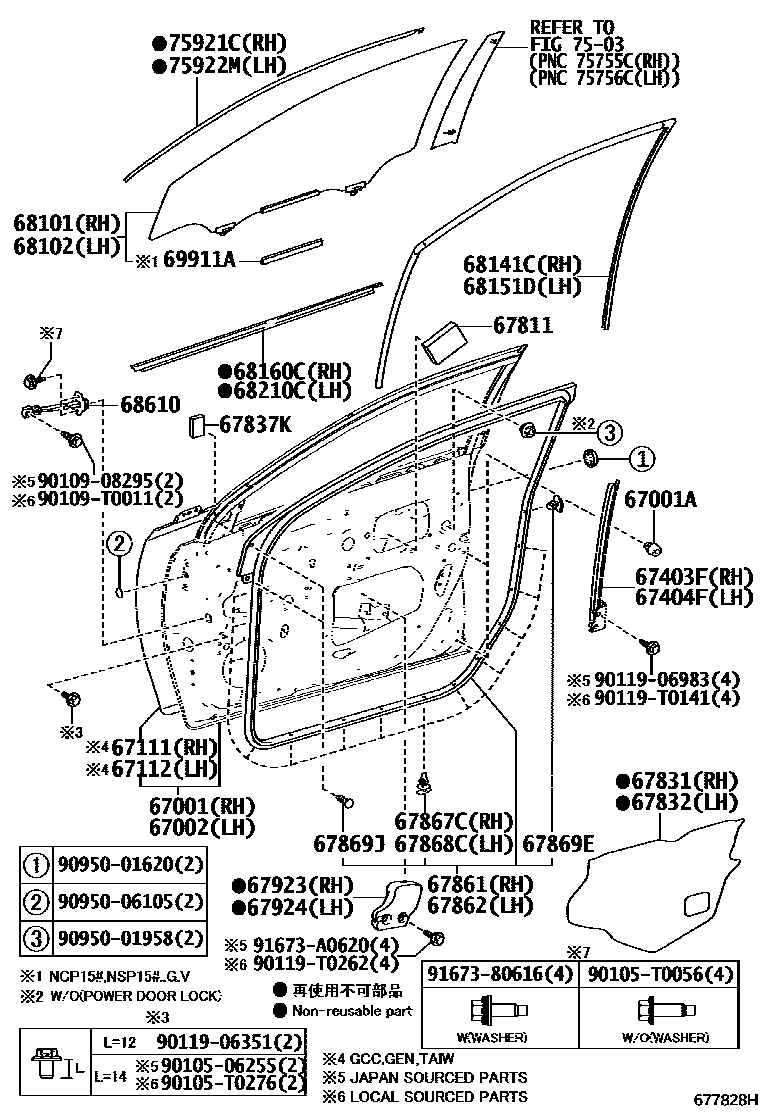

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0005 1DOOR PANEL 0011 1DOOR PANEL 0012 1DOOR TRIM 0016 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0D250iNSP150,151..GEN201304-201709

main67001-0D290iNSP151..TH..G..C201312-201707

main67001-0D340iNSP151..TAIW201404-201802

main67001-0D360iNCP150..MA201310-201608

main67001-0D390iNSP150,151..PH201404-201806

main67001-0D430iNSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E)201708-202207

main67001-0D440iNSP151..MA201901-202011

main67001-0D450iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main67001-0D460iNSP150,151..D201807-201910

main67001-0D470iNSP151..F201803-202101

main67001-0D480iNSP151..G201804-201908

main67001-0D490iNSP151..H201807-201910

main67001-0D560iNSP150,151..I202003-202406

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iNSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G201304-201712

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0D160iNCP15#..PH,VN201304-201404

main67002-0D300iNSP151..TH..G..C201312-201707

main67002-0D350iNCP150..TAIW201404-201604

main67002-0D370iNSP151..MA201310-201812

main67002-0D400iNCP15#..VN201404-201608

main67002-0D430iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main67002-0D440iNSP151..MA201901-202011

main67002-0D450iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main67002-0D460iNSP150,151..D201807-201910

main67002-0D470iNSP151..F201803-202101

main67002-0D480iNSP151..G201804-201908

main67002-0D490iNSP151..H201807-201910

main67002-0D560iNSP150,151..I202003-202406

67111PANEL, FRONT DOOR, OUTER RH

main67111-K0010iNCP15#,NSP150,151..(GCC,GEN,TAIW)..(B,C)201308-201802

main67111-K0030iNSP151..F201708-202101

67112PANEL, FRONT DOOR, OUTER LH

main67112-K0010iNCP15#,NSP150,151..(GCC,GEN,TAIW)..(B,C)201308-201802

main67112-K0030iNSP151..F201708-202101

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0D130iNSP151..TH..B201304

main67403-0D150iNSP151..TAIW201404-201802

main67403-0D160iNCP15#..C201312-201609

main67403-0D200iNSP151..G201804-201908

main67403-0D210iNSP151..H201807-201910

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0D130iNSP150,151..GEN201304-201709

main67404-0D150iNCP150..TAIW201404-201604

main67404-0D160iNSP151..TH..G..C201312-201707

main67404-0D200iNSP151..G201804-201908

main67404-0D210iNSP151..H201807-201910

67811PAD, FRONT DOOR SILENCER

main67811-02380×2iNSP151..H201807-201910

main67811-0D010×2iNSP151..F201708-202101

main67811-0D120×2iNSP151..G201804-201908

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0D260iNSP150,151..5F..GEN..D201304-201709

main67831-0D280iNCP150..TAIW..D201404-201604

main67831-0D290iNSP150..PH..D201307-201806

main67831-0D300iNCP15#..D..C201312-201609

main67831-0D310iNSP150..5F..GCC..R..B;NSP150,151..CVT..GCC..B201304-201712

main67831-0D320iNCP150..TAIW..(R,V)201404-201604

main67831-0D330iNSP150,151..PH..(G,R)201307-201806

main67831-0D360iNSP151..R..C;NSP150..CVT..C;NSP150..5F..R..C;NSP151..CVT..D..C;NSP151..(GCC,IDN)..G..C201312-201712

main67831-0D430iNSP150..5F..GCC..D..A201710-202108

main67831-0D440iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main67831-0D450iNSP150,151..(G,R)..D201902-201910

main67831-0D460iNSP151..D..F201803-202101

main67831-0D470iNSP151..D..G201804-201908

main67831-0D480iNSP151..D..H201807-201910

main67831-0D490iNSP15#..(G,R)..A201708-201902

main67831-0D500iNSP150,151..(G,R)..C201801-201902

main67831-0D510iNSP150,151..(G,R)..D201807-201902

main67831-0D520iNSP151..(R,V)..F201803-201902

main67831-0D530iNSP151..(G,R,V)..G201804-201902

main67831-0D540iNSP151..(G,R,V)..H201807-201910

main67831-0D550iNSP151..E201902-201912

main67831-0D560iNSP151..E201808-201902

main67831-0D610iNSP150,151..I202003-202406

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0D160iNCP150..IDN..D..B201304-201506

main67832-0D180iNCP150..TAIW..D201404-201604

main67832-0D190iNSP150..PH..D201307-201806

main67832-0D200iNCP15#..D..C201312-201609

main67832-0D210iNSP150..5F..GCC..R..B;NSP150,151..CVT..GCC..B201304-201712

main67832-0D220iNCP150..TAIW..(R,V)201404-201604

main67832-0D230iNSP150,151..PH..(G,R)201307-201806

main67832-0D300iNSP150..5F..GCC..D..A201710-202108

main67832-0D310iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main67832-0D320iNSP150,151..(G,R)..D201902-201910

main67832-0D330iNSP151..D..F201803-202101

main67832-0D340iNSP151..D..G201804-201908

main67832-0D350iNSP151..D..H201807-201910

main67832-0D360iNSP151..R..C;NSP150..CVT..C;NSP150..5F..R..C;NSP151..CVT..D..C;NSP151..(GCC,IDN)..G..C201312-201712

main67832-0D370iNSP15#..(G,R)..A201708-201902

main67832-0D380iNSP150,151..(G,R)..C201801-201902

main67832-0D390iNSP150,151..(G,R)..D201807-201902

main67832-0D400iNSP151..(R,V)..F201803-201902

main67832-0D410iNSP151..(G,R,V)..G201804-201902

main67832-0D420iNSP151..(G,R,V)..H201807-201910

main67832-0D430iNSP150..E201808-201912

main67832-0D440iNSP151..E201808-201902

main67832-0D610iNSP150,151..I202003-202406

67837KSEAL, FRONT DOOR VENT

main67481-0D030×2iNSP150,151..PH201304-201806

main67481-0D070×2iNSP151..H201807-201910

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0D150iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main67861-0D170iNSP151..TAIW201404-201802

main67861-0D180iNSP151..MA201310-201812

main67861-0D190iNCP15#..PH201307-201606

main67861-0D200iNSP151..G201804-201908

main67861-0D210iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

main67861-0D230iNSP151..H201807-201910

main67861-0D250iNSP150,151..I202003-202406

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0D150iNCP150..IDN..B201304-201506

main67862-0D170iNSP151..TAIW201404-201802

main67862-0D180iNCP150..MA201310-201608

main67862-0D190iNSP150,151..D201807-201910

main67862-0D200iNSP151..G201804-201908

main67862-0D210iNCP15#..C201312-201609

main67862-0D230iNSP151..H201807-201910

main67862-0D250iNSP150,151..I202003-202406

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×14iNCP15#..(GCC,GEN,TH)..B201304-201603

main67868-0D050×14iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×14iNSP150,151..GEN201304-201709

main67868-0D060×14iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

67869ECLIP, FRONT DOOR WEATHERSTRIP

main90467-04034×2iNCP150..IDN..B201304-201506

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030×4iNCP150..TAIW201304-201604

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-0D070iNSP150,151..GEN201304-201709

main67923-0D090iNSP151..TAIW201404-201802

main67923-0D100iNCP150..MA201310-201608

main67923-0D110iNCP15#..C201312-201609

main67923-0D160iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202207

main67923-0D170iNSP151..MA201901-202011

main67923-0D180iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main67923-0D190iNSP151..F201803-202101

main67923-0D200iNSP151..G201804-201908

main67923-0D210iNSP151..H201807-201910

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-0D060iNSP150,151..GCC..B201304-201712

main67924-0D100iNSP151..TAIW201404-201802

main67924-0D110iNSP151..MA201310-201812

main67924-0D120iNSP151..TH..G..C201312-201707

main67924-0D170iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202207

main67924-0D180iNSP151..MA201901-202011

main67924-0D190iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main67924-0D200iNSP151..F201803-202101

main67924-0D210iNSP151..G201804-201908

main67924-0D220iNSP151..H201807-201910

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-0D170iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main68110-0D240iNSP150..5F..GCC..B;NSP15#..(GEN,TH,VN)..(D,R)..B201304-201708

main68110-0D241iNSP150,151..GEN..(D,R)201708-201709

main68110-0D250iNSP151..TAIW..(D,R)201404-201802

main68110-0D260iNSP151..MA..(D,R)201310-201812

main68110-0D270iNSP150..D..D201807-201910

main68110-0D290iNCP15#..(GCC,GEN,TH)..(G,V)..B201304-201603

main68110-0D291iNSP150,151..GEN..G201708-201709

main68110-0D310iNSP151..MA..(G,V)201310-201812

main68110-0D320iNSP150,151..(G,R)..D201807-201910

main68110-0D350iNCP150..TAIW..V201404-201604

main68110-0D370iNSP151..IDN..G201312-201712

main68110-0D380iNSP150..CVT..D..C201801-202207

main68110-0D390iNSP15#..CVT..GCC..(D,R)..B201604-201707

main68110-0D391iNSP150..CVT..GCC..D..A201801-202207

main68110-0D400iNSP15#..GCC..G..B201604-201707

main68110-0D401iNSP150,151..GCC..G..B201708-201712

main68110-0D470iNSP151..D..H201807-201910

main68110-0D480iNSP151..(G,R,V)..H201807-201910

main68110-0D490iNSP151..D..G201804-201908

main68110-0D510iNSP151..(G,R,V)..G201804-201908

main68110-0D520iNSP150,151..GCC..G..C201610-201712

main68110-0D540iNSP150,151..I202003-202310

main68110-0D550iNSP150,151..I202310-202406

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-0D170iNCP15#..(D,R)..C201312-201609

main68120-0D240iNCP150..IDN..(D,R)..B201304-201506

main68120-0D241iNSP151..TH..(D,R)..B201708

main68120-0D250iNCP150..TAIW..(D,R)201404-201604

main68120-0D260iNSP151..MA..(D,R)201310-201812

main68120-0D270iNSP150..D..D201807-201910

main68120-0D290iNCP150..IDN..G..B201304-201506

main68120-0D291iNSP151..VN..G201708-201807

main68120-0D310iNSP151..MA..(G,V)201310-201812

main68120-0D320iNSP151..PH201307-201806

main68120-0D350iNSP151..(R,V)..F201803-202101

main68120-0D370iNSP150..5F..R..C;NSP151..IDN..(G,R)201801-202207

main68120-0D380iNSP150..CVT..D..C201801-202207

main68120-0D390iNSP15#..CVT..GCC..(D,R)..B201604-201707

main68120-0D391iNSP150,151..CVT..GCC..(D,R)..B201708-201712

main68120-0D400iNSP15#..GCC..G..B201604-201707

main68120-0D401iNSP150,151..CVT..GCC..(G,R)..A201801-202207

main68120-0D470iNSP151..D..H201807-201910

main68120-0D480iNSP151..(G,R,V)..H201807-201910

main68120-0D490iNSP151..D..G201804-201908

main68120-0D510iNSP151..(G,R,V)..G201804-201908

main68120-0D520iNSP150,151..CVT..GCC..(G,R)..C201801-202207

main68120-0D540iNSP150,151..I202003-202310

main68120-0D550iNSP150,151..I202310-202406

68141CRUN, FRONT DOOR GLASS, RH

main68141-0D190iNCP15#..PH201304-201606

main68141-0D220iNSP151..F201803-202101

main68141-0D230iNSP151..MA201310-201812

main68141-0D240iNSP151..G201804-201908

main68141-0D250iNCP15#..C201312-201609

main68141-0D320iNSP151..H201807-201910

68151DRUN, FRONT DOOR GLASS, LH

main68151-0D180iNCP15#..VN201304-201608

main68151-0D200iNSP151..TAIW201404-201802

main68151-0D210iNSP151..MA201901-202011

main68151-0D220iNSP151..G201804-201908

main68151-0D230iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

main68151-0D280iNSP151..H201807-201910

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-0D200iNCP150..IDN..B201304-201506

main68160-0D220iNSP151..F201803-202101

main68160-0D240iNSP150,151..D201807-201910

main68160-0D251iNSP151..G201804-201908

main68160-0D260iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main68160-0D340iNSP151..H201807-201910

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-0D200iNCP150..IDN..B201304-201506

main68210-0D220iNSP151..TAIW201404-201802

main68210-0D240iNSP150,151..D201807-201910

main68210-0D251iNSP151..G201804-201908

main68210-0D260iNSP151..TH..G..C201312-201707

main68210-0D340iNSP151..H201807-201910

68610CHECK ASSY, FRONT DOOR

main68610-0D130×2iNCP15#..B201304-201404

main68610-0D131×2iNSP150,151..GCC..B201405-201712

main68610-0D161×2iNSP151..F201803-202101

main68610-0D170×2iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main68610-0D210×2iNSP151..G201804-201908

69911ACHANNEL, FRONT DOOR GLASS, NO.1

main69911-0D040×2iNCP150..IDN..G..B201304-201506

main69911-0D060×2iNSP150,151..(GCC,IDN)..G..C201312-201712

main69911-0D080×2iNSP151..(G,R,V)..H201807-201910

7503SIDE MOULDING

→ Go to FIG 75-03

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0D110iNSP150..I;NSP151..E,I;NSP152..HTWC201708-202406

main75921-0D130iNSP151..TAIW201404-201802

main75921-0D140iNSP151..MA201310-201812

main75921-0D150iNSP150,151..D201807-201910

main75921-0D170iNSP150,151..(G,R)..C; NSP150..CVT..D..C201801-202207

J-HI PACKAGE(DOOR OUTSIDE HANDLE(PAINT))

main75921-0D210iNSP151..G201804-201908

main75921-0D220iNSP151..H201807-201910

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0D110iNSP150..I;NSP151..E,I;NSP152..HTWC201708-202406

main75922-0D130iNSP151..F201803-202101

main75922-0D140iNSP151..MA201310-201812

main75922-0D150iNCP15#..PH; NCP151..PH..D201307-201606

BLACK OUT TAPE-WITHOUT; LIMO PACKAGE

main75922-0D170iNCP15#..(G,R)..C;NCP150..TH..D..C201312-201609

main75922-0D210iNSP151..G201804-201908

main75922-0D220iNSP151..H201807-201910

9010506255

main90105-06255

90105T0056

main90105-T0056

90105T0276

main90105-T0276

9010908295

main90109-08295

90109T0011

main90109-T0011

9011906351

main90119-06351

9011906983

main90119-06983

90119T0141

main90119-T0141

90119T0262

main90119-T0262

9095001620

main90950-01620

9095001958

main90950-01958

9095006105

main90950-06105

9167380616

main91673-80616

91673A0620

main91673-A0620

44 parts on this diagram · 5 diagrams in section
