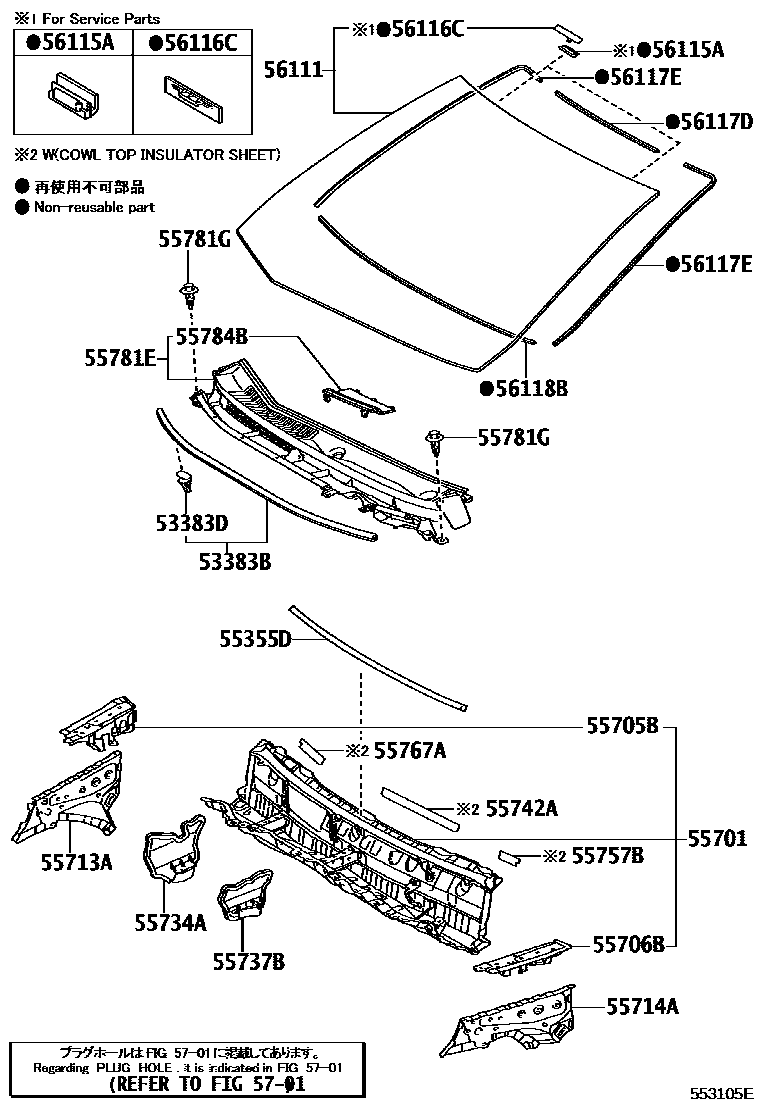

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1 0003 1 0004 1

53383BSEAL, HOOD TO COWL TOP

main53383-0D150iNSP150,151..GCC..B201304-201712

main53383-0D170iNSP151..TAIW201404-201802

main53383-0D180iNCP150..MA201310-201608

main53383-0D190iNSP150,151..PH201307-201806

main53383-0D200iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main53383-0D220iNSP151..G201804-201908

main53383-0D230iNSP151..H201807-201910

main53383-0D250iNSP150,151..I202003-202406

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-0D070×5iNCP150..IDN..B201304-201506

main67867-0D130×5iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

55355DCUSHION, INSTRUMENT PANEL, NO.1

main55355-0D160iNSP151..MA201304-201812

main55355-0D240iNCP150..TAIW201404-201604

main55355-0D260iNSP151..TH..G..C201312-201707

main55355-0D380iNSP151..G201804-201908

main55355-0D390iNSP151..H201807-201910

main55355-0D480iNSP151..D,E;NSP152..HTWC;NSP150..D,E,I;NSP151..MA,PKN201708-202406

main55355-0D490iNSP151..5F..D..C;NSP151..IDN..(G,R)201801-202207

main55355-0D500iNSP151..F201803-202101

55701PANEL SUB-ASSY, COWL

main55700-0D210iNCP15#..LHD..GEN201307-201603

main55700-0D211iNSP150,151..LHD..GEN201702-201709

main55700-0D220iNSP15#..GCC..B201308-201701

main55700-0D221iNSP150,151..GCC..B201702-201712

main55700-0D230iNSP15#..RHD..B201304-201701

main55700-0D231iNSP150..RHD201702-201709

main55700-0D260iNSP150,151..GCC..C201402-201712

main55700-0D261iNSP150..5F..D..C201801-202108

main55700-0D270iNSP151..IDN..G;NSP151..RHD..(D,R)..C201312-201712

main55700-0D271iNSP151..CVT..D..C201801-202108

main55700-0D290iNCP150..TAIW201404-201604

main55700-0D291iNSP151..TAIW201702-201802

main55700-0D311iNSP150,151..LHD..(GEN,VN)..(A,E)201710-202207

main55700-0D321iNSP150..5F..GCC..D..A201801-202108

main55700-0D331iNSP15#..RHD..CVT..A201708-202207

main55700-0D350iNCP15#..PH201407-201606

main55700-0D351iNSP150,151..D201807-201910

main55700-0D400iNSP151..G201804-201908

main55700-0D410iNSP151..H201807-201910

main55700-0D450iNSP151..MA201901-202011

main55700-0D460iNSP150,151..I202003-202406

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0D120iNSP151..TH..B201304

main55705-0D140iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main55705-0D150iNSP151..F201803-202101

main55705-0D170iNSP151..G201804-201908

main55705-0D180iNSP151..H201807-201910

main55705-0D200iNSP150,151..I202003-202406

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0D120iNCP15#..(GCC,GEN,TH)..B201304-201603

main55706-0D140iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main55706-0D150iNSP151..TAIW201404-201802

main55706-0D170iNSP151..G201804-201908

main55706-0D180iNSP151..H201807-201910

main55706-0D200iNSP150,151..I202003-202406

55713APANEL, COWL TOP SIDE, RH

main55713-0D110iNCP15#..(GCC,GEN,TH)..B201304-201603

main55713-0D130iNCP15#..C201312-201609

main55713-0D140iNCP150..TAIW201404-201604

main55713-0D160iNSP151..G201804-201908

main55713-0D170iNSP151..H201807-201910

main55713-0D190iNSP151..TH..B201702

main55713-0D200iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

main55713-0D210iNSP151..F201803-202101

main55713-0D220iNSP150,151..E201808-201912

main55713-0D250iNSP151..MA201901-202011

main55713-0D260iNSP150,151..I202003-202406

55714APANEL, COWL TOP SIDE, LH

main55714-0D110iNCP150..IDN..B201304-201506

main55714-0D130iNSP151..TH..G..C201312-201707

main55714-0D140iNCP150..TAIW201404-201604

main55714-0D160iNSP151..G201804-201908

main55714-0D170iNSP151..H201807-201910

main55714-0D190iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main55714-0D200iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main55714-0D210iNSP151..F201803-202101

main55714-0D220iNSP150,151..E201808-201912

main55714-0D250iNSP151..MA201901-202011

main55714-0D260iNSP150,151..I202003-202406

55734APLATE, WATER GUARD, RH

main55734-0D070iNSP150,151..GCC..B201307-201712

main55734-0D090iNSP151..TAIW201404-201802

main55734-0D110iNCP15#..GCC..C201402-201609

main55734-0D130iNSP151..H201807-201910

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-0D170iNCP150..IDN..B201304-201506

main55737-0D180iNSP150..CVT..GCC..A;NSP151..LHD..(A,D,E);NSP150..5F..GCC..R..A;NSP150..LHD..(GEN,PH,VN)..(A,D,E)201710-202207

main55737-0D200iNSP151..MA201901-202011

main55737-0D210iNCP150..TAIW201404-201604

main55737-0D220iNSP151..TH..G..C201312-201707

main55737-0D230iNSP150..5F..D..C201801-202108

main55737-0D280iNSP151..G201804-201908

main55737-0D290iNSP151..H201807-201910

55742ASHEET, COWL TOP INSULATOR

main55767-0D020iNSP151..TH..B201604

main55767-0D050iNSP151..TAIW201605-201802

main55767-0D080iNSP150..CVT..C;NSP151..CVT..(D,R)..C;NSP151..CVT..(GCC,IDN)..G..C201610-201712

55757BSHEET COWL TOP INSULATOR

main55767-0D030iNSP151..CVT..MA201604-201812

main55767-0D060iNSP151..TAIW201605-201802

main55767-0D090iNSP151..TH..G..C201610-201707

55767ASHEET, COWL TOP INSULATOR, NO.5

main55767-0D010iNSP150,151..CVT..GCC..B201604-201712

main55767-0D040iNSP151..TAIW201605-201802

main55767-0D070iNSP150..CVT..C;NSP151..CVT..(D,R)..C;NSP151..CVT..(GCC,IDN)..G..C201610-201712

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0D270iNCP15#..RHD..(GEN,TH)..B201304-201603

main55708-0D272iNSP15#..RHD..CVT..A201708-202207

main55708-0D280iNCP15#..PH201307-201606

main55708-0D282iNSP151..LHD..(A,E);NSP150..CVT..GCC..A;NSP150..5F..GCC..R..A;NSP150..LHD..(GEN,VN)..(A,E)201710-202207

main55708-0D310iNSP151..TAIW201404-201802

main55708-0D312iNSP151..F201803-202101

main55708-0D320iNCP150..MA201310-201608

main55708-0D322iNSP151..MA201901-202011

main55708-0D340iNSP150,151..GCC..C201402-201712

main55708-0D342iNSP150..5F..D..C201801-202108

main55708-0D350iNSP151..TH..G..C201312-201707

main55708-0D352iNSP151..CVT..D..C201801-202108

main55708-0D421iNSP151..G201804-201908

main55708-0D430iNSP151..H201807-201910

main55708-0D490iNSP150,151..D201807-201910

main55708-0D500iNSP150,151..I202003-202406

55781GCLIP, COWL TOP VENTILATOR LOUVER

main52161-0K040×2iNSP150,151..GEN201304-201709

main52161-0K060×2iNSP151..F201803-202101

main52161-16010×2iNSP151..G,H201804-201910

(J)

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-0D070iNCP150..IDN..B201304-201506

main55784-0D080iNCP15#..VN201307-201608

main55784-0D100iNSP151..F201803-202101

main55784-0D110iNSP151..MA201310-201812

main55784-0D130iNCP15#..GCC..C201402-201609

main55784-0D140iNCP150..RHD..C201312-201609

main55784-0D160iNSP151..G201804-201908

main55784-0D170iNSP151..H201807-201910

main55784-0D260iNSP150,151..D201807-201910

main55784-0D270iNSP150,151..I202003-202406

56111GLASS, WINDSHIELD

main56101-0D300iNSP150..PH201307-201806

main56101-0D310iNCP150..PH201307-201606

main56101-0D320iNSP151..TAIW..(D,R)201404-201802

main56101-0D330iNSP151..(R,V)..F201803-202101

main56101-0D360iNCP15#..GCC..(D,R)..B201308-201603

main56101-0D370iNCP15#..GCC..G..B201308-201603

main56101-0D380iNCP15#..5F..VN201308-201608

main56101-0D390iNSP150,151..LHD..GEN..G201308-201709

main56101-0D400iNCP150..TH..(D,R)..B201304-201410

main56101-0D401iNSP150..RHD..D..A201710-202207

main56101-0D410iNCP150..IDN..G..B201304-201506

main56101-0D411iNSP150..5F..G..A201708-202108

main56101-0D420iNSP151..MA..D201901-202011

main56101-0D430iNSP151..MA..R201901-202011

main56101-0D460iNSP151..RHD..(D,R)..C201312-201712

main56101-0D470iNSP151..IDN..G201312-201712

main56101-0D480iNSP150..5F..D..C201801-202108

main56101-0D490iNSP150..5F..R..C201801-202207

main56101-0D540iNCP150..TH..(D,R)..B201410-201603

main56101-0D550iNCP150..TH..(G,V)..B201410-201603

main56101-0D710iNSP151..MA..(G,V)201901-202011

main56101-0D720iNSP151..D..G201804-201908

main56101-0D730iNSP151..(G,V)..G201804-201908

main56101-0D740iNSP151..D..H201807-201910

main56101-0D760iNSP151..AGT..R201807-201910

main56101-0D770iNSP151..AGT..G;NSP151..(BZ,GEN)..(G,R)..H201807-201910

main56101-0D780iNSP151..V..H201807-201910

main56101-0D850iNSP150,151..CVT..GCC..(D,R)..B201604-201712

main56101-0D860iNSP150,151..CVT..GCC..(G,R)..A201801-202207

main56101-0D880iNSP150..CVT..D..C201801-202207

main56101-0D890iNSP150,151..GCC..G..C201610-201712

main56101-0DA30iNSP151..R..G201804-201908

main56101-0DG90iNSP150..I202310-202406

main56101-0DJ00iNSP151..I202310-202406

main56101-0DD00iNSP152202009-202207

ACTIVE SAFETY PACKAGE-WITH

main56101-0DD10iNSP152202009-202207

SPORT PACKAGE&ACTIVE SAFETY PACKAGE-WITH

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G201304-201712

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNCP150..TAIW201304-201604

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-0D160iNCP15#..(GCC,GEN,TH)..B201304-201603

L=549

main56117-0D220iNSP150,151..D201807-201910

L=549

main56117-0D250iNSP150,151..VN201403-201807

L=549

main56117-0D300iNSP151..TAIW201404-201802

*D,L=549

main56117-0D310iNSP150..5F..D..C;NSP151..CVT..D..C201801-202108

L=549

main56117-0D450iNSP151..G201804-201908

L=549

main56117-50130iNSP151..H201807-201910

L=549

56117EDAM, WINDOW GLASS ADHESIVE

main56117-0D170×2iNCP15#..(GCC,GEN,TH)..B201304-201603

L=915

main56117-0D230×2iNSP150,151..PH201307-201806

L=915

main56117-0D260×2iNSP150,151..VN201403-201807

L=915

main56117-0D300×2iNSP151..F201803-202101

*D,L=915

main56117-0D320×2iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

L=915

main56117-0D460×2iNSP151..G201804-201908

L=915

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-0D180iNCP150..IDN..B201304-201506

L=1182

main56117-0D240iNSP150,151..PH201307-201806

L=1182

main56117-0D270iNSP150,151..E201808-201912

L=1182

main56117-0D300iNSP151..TAIW201404-201802

L=1182

main56117-0D330iNCP15#..C201312-201609

L=1182

main56117-0D470iNSP151..G201804-201908

L=1182

5701HOLE PLUG

→ Go to FIG 57-01

23 parts on this diagram · 4 diagrams in section
