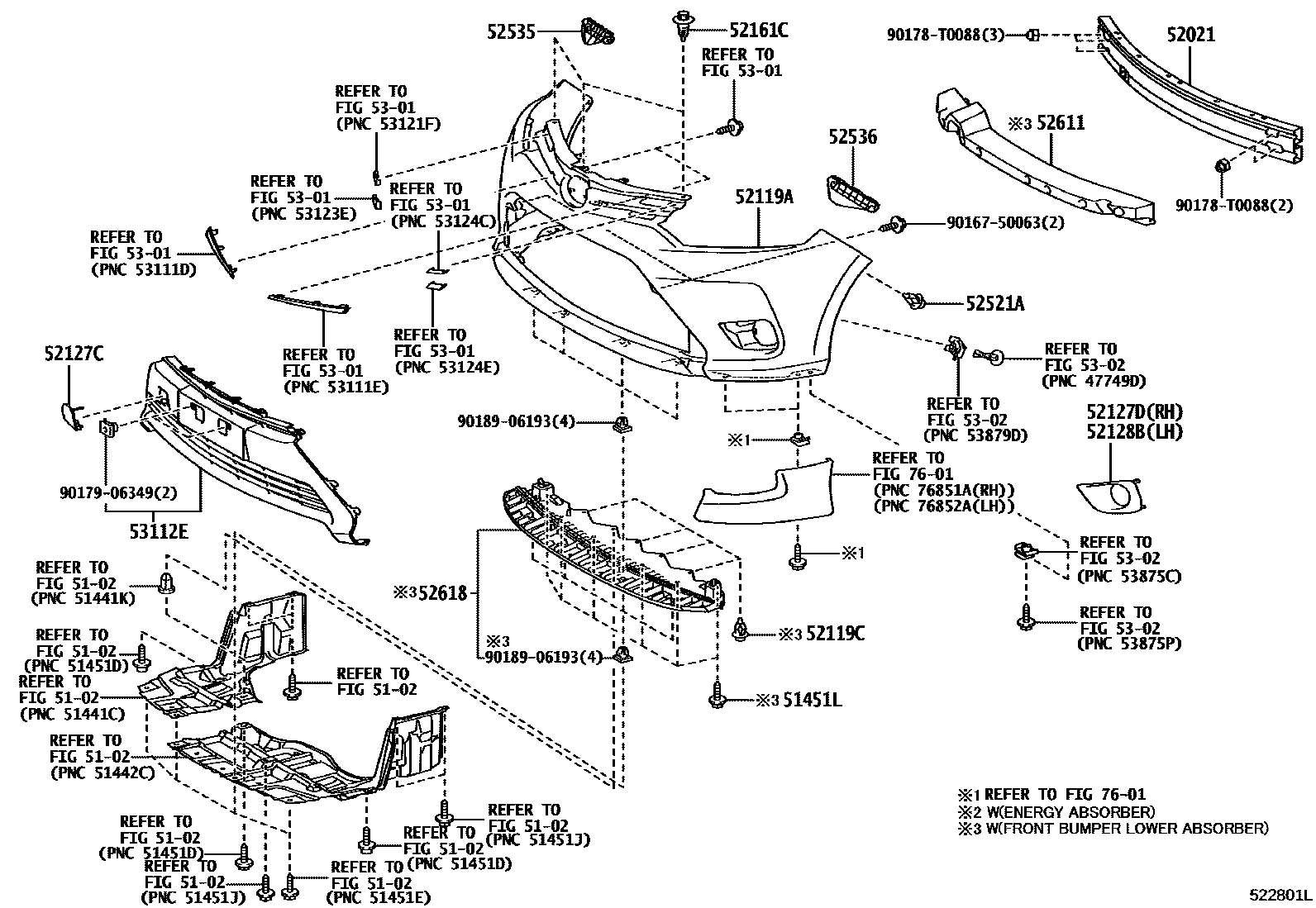

FRONT BUMPER & BUMPER STAY

0001 1 0005 1SPECIAL EDITION 0006 1 0012 1MLM PACKAGE

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

51451LBOLT, NO.1

main90119-06355iNSP151..6F..H201807-201910

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0D140iNCP15#..C201304-202406

main52021-0D140iNCP150..TAIW201404-201802

THAILAND PRODUCT

main52021-0D170iNSP151..F201803-202101

main52021-0D170iNCP150..TAIW201404-201802

TAIWAN PRODUCT

main52021-0D180iNSP151..G201804-201908

main52021-0D190iNSP151..H201807-201910

52119ACOVER, FRONT BUMPER

main52119-0U913iNCP15#,NSP150,151..(GCC,GEN,IDN,TH,VN)..B201304

main52119-0U914iNCP150,NSP151..MA201310-201812

main52119-0U915iNCP15#,NSP150,151..PH201307-201806

main52119-0U916iNCP150,NSP151..TAIW201404-201802

main52119-0U920iNCP15#,NSP150,151..C201312-201712

main52119-0U932iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202108

main52119-0U932iNSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E)201708-202207

PAINT REQ.

main52119-0U933iNSP150..5F..D..C;NSP151..CVT..D..C201801-202207

main52119-0U934iNSP150,151..D201807-201910

main52119-0U935iNSP151..H201807-201910

main52119-0U936iNSP151..F201803-202101

main52119-0U937iNSP151..(D,R)..G201804-201908

main52119-0U938iNSP151..MA..(G,V)201901-202011

main52119-0U939iNSP151..MA..(D,R)201901-202011

main52119-0U940iNSP151..(G,V)..G201804-201908

main52119-0U941iNSP150,151..I202003-202406

PAINT REQ.

52119CCLIP, FRONT BUMPER COVER

main90467-10216iNSP151..6F..H201807-201910

52127CCOVER, FRONT BUMPER HOLE

main52721-0D080iNCP15#,NSP150,151..(GCC,GEN,IDN,PH,TH,VN)..B201304

main52721-0D100iNCP150,NSP151..TAIW201404-201802

main52721-0D120iNCP15#,NSP150,151..C201312-201712

main52721-0D150iNCP150,NSP151..MA201310-201812

main52721-0D210iNSP151..MA..(D,R)201901-202011

main52721-0D220iNSP151..MA..(G,V)201901-202011

main52721-0D230iNSP151..(D,R)..G201804-201908

main52721-0D250iNSP151..(G,V)..G201804-201908

main52721-0D260iNSP151..(D,R)..F201803-202101

main52721-0D290iNSP150..5F..GCC..D..A201708-202207

main52721-0D300iNSP150..5F..G..A201708-202207

main52721-0D310iNSP151..(D,R)..H201807-201910

main52721-0D320iNSP151..(G,V)..H201807-201910

main52721-0D390iNSP150,151..R..C;NSP151..5F..D..C;NSP150..CVT..D..C201801-202207

main52721-0D400iNSP150,151..G..C201801-202207

E-SPORT PACKAGE(GRADE MARK(S))

main52721-0D410iNSP151..V..F201803-202101

main52721-0D470iNSP150,151..I202003-202406

main52721-0D480iNSP152201911-202207

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-0D360iNCP151,NSP150..PH..D..B;NCP150,NSP151..TH..(D,G,R)..B;NCP151,NSP150..(GCC,GEN,VN)..(D,R)..B;NCP150,NSP151..(GCC,GEN,IDN)..(D,R)..B201304

main52127-0D370iNCP150,NSP151..TH..V;NCP15#,NSP150,151..(PH,VN)..R..B;NCP15#,NSP150,151..(GCC,GEN,IDN,PH,VN)..G..B201304

main52127-0D390iNCP150,NSP151..TAIW201404-201802

main52127-0D430iNCP150,NSP151..TH..G..C;NCP15#,NSP150,151..(D,R)..C201312-201712

main52127-0D440iNCP15#,NSP150,151..(GCC,IDN)..G..C201312-201712

main52127-0D470iNCP150,NSP151..MA..(G,R,V)201310-201812

main52127-0D480iNCP150,NSP151..MA..D201310-201812

main52127-0D680iNSP150..5F..GCC..D..A201708-202207

main52127-0D700iNSP151..MA..D201901-202011

main52127-0D710iNSP151..MA..(G,R,V)201901-202011

main52127-0D740iNSP151..F201803-202101

main52127-0D760iNSP150..D..D201807-201910

main52127-0D770iNSP150,151..(G,R)..D201807-201910

main52127-0D800iNSP151..CVT..GEN..R201710-202207

CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52127-0D800iNSP151..CVT..GEN..R201710-202207

ECUADOR SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52127-0D800iNSP151..GEN..R201710-202207

MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52127-0D800iNSP150..5F..G..A201710-202108

main52127-0D800iNSP151..GEN..R201710-202207

LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52127-0D810iNSP151..D..H;NSP151..AGT..R201807-201910

main52127-0D820iNSP151..AGT..G;NSP151..(BZ,GEN)..(G,R,V)..H201807-201910

main52127-0DA10iNSP151..(G,R,V)..G201804-201908

main52127-0DA20iNSP151..D..G201804-201908

main52127-0DA40iNSP150..5F..D..C;NSP151..CVT..D..C201801-202207

main52127-0DA50iNSP151..CVT..IDN..R201801-202207

BRUNEI SPEC

main52127-0DA50iNSP150,151..G..C201801-202207

E-SPORT PACKAGE(GRADE MARK(S))

main52127-0DA50iNSP151..5F..D..C202110-202207

main52127-0DC00iNSP150,151..5F..E201808-201912

main52127-0DC10iNSP151..CVT..E201808-201912

main52127-0DC40iNSP150..D..I202003-202406

main52127-0DC50iNSP150,151..G..I202003-202406

main52127-0DF70iNSP152201911-202207

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-0D180iNCP151,NSP150..PH..D..B;NCP150,NSP151..TH..(D,G,R)..B;NCP151,NSP150..(GCC,GEN,VN)..(D,R)..B;NCP150,NSP151..(GCC,GEN,IDN)..(D,R)..B201304

main52128-0D190iNCP150,NSP151..TH..V;NCP15#,NSP150,151..(PH,VN)..R..B;NCP15#,NSP150,151..(GCC,GEN,IDN,PH,VN)..G..B201304

main52128-0D210iNCP150,NSP151..TAIW201404-201802

main52128-0D250iNCP150,NSP151..TH..G..C;NCP15#,NSP150,151..(D,R)..C201312-201712

main52128-0D260iNCP15#,NSP150,151..(GCC,IDN)..G..C201312-201712

main52128-0D290iNCP150,NSP151..MA..(G,R,V)201310-201812

main52128-0D300iNCP150,NSP151..MA..D201310-201812

main52128-0D430iNSP152..HTWC;NSP151..TH..A;NSP150..CVT..(D,R)..A;NSP151..LHD..(D,R)..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202207

main52128-0D450iNSP151..MA..D201901-202011

main52128-0D460iNSP151..MA..(G,R,V)201901-202011

main52128-0D490iNSP151..F201803-202101

main52128-0D520iNSP150..D..D201807-201910

main52128-0D530iNSP150,151..(G,R)..D201807-201910

main52128-0D550iNSP151..GEN..R201710-202207

ECUADOR SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52128-0D550iNSP150..5F..G..A201710-202108

main52128-0D550iNSP150..CVT..G..A;NSP151..(GCC,GEN)..G..A201710-202207

LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52128-0D550iNSP150..CVT..G..A;NSP151..(GCC,GEN)..G..A201710-202207

CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52128-0D550iNSP150..CVT..G..A;NSP151..(GCC,GEN)..G..A201710-202207

MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52128-0D560iNSP151..D..H;NSP151..AGT..R201807-201910

main52128-0D570iNSP151..AGT..G;NSP151..(BZ,GEN)..(G,R,V)..H201807-201910

main52128-0D650iNSP151..D..G201804-201908

main52128-0D660iNSP151..(G,R,V)..G201804-201908

main52128-0D690iNSP151..5F..D..C201801-202207

main52128-0D700iNSP151..CVT..IDN..R201801-202207

E-SPORT PACKAGE(GRADE MARK(S))

main52128-0D700iNSP150,151..G..C201801-202207

BRUNEI SPEC

main52128-0D700iNSP151..5F..D..C202110-202207

main52128-0D810iNSP150,151..5F..E201808-201912

main52128-0D820iNSP151..CVT..E201808-201912

main52128-0D830iNSP150..D..I202003-202406

main52128-0D840iNSP150,151..G..I202003-202406

main52128-0DF00iNSP152201911-202207

52161CPIECE, FRONT BUMPER

main52161-0K040iNSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)201304-202406

main52161-0K040iNSP151..H201807-201910

(L)

main52161-0K060iNCP150,NSP151..TAIW201404-201802

main52161-16010iNSP151..H201807-201910

(J)

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05170iNSP150..5F..D..C;NSP151..CVT..D..C202102-202207

(J)

main90467-05170iNCP15#,NSP150,151..B,C201304-202104

main90467-T0047iNSP150,151..I202102-202406

(L)

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0D140iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main52535-0D150iNCP150,NSP151..TAIW201404-201802

main52535-0D190iNCP15#,NSP150,151..C201312-201712

main52535-0D230iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202406

main52535-0D250iNSP151..G201804-201908

main52535-0D260iNSP151..F201803-202101

main52535-0D270iNSP151..H201807-201910

main52535-0D290iNSP150..5F..D..C;NSP151..CVT..D..C201801-202207

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0D140iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main52536-0D150iNCP150,NSP151..TAIW201404-201802

main52536-0D190iNCP15#,NSP150,151..C201312-201712

main52536-0D230iNSP151..D,E;NSP152..HTWC;NSP150..D,E,I;NSP151..MA,PKN201708-202406

main52536-0D250iNSP151..G201804-201908

main52536-0D260iNSP151..F201803-202101

main52536-0D270iNSP151..H201807-201910

main52536-0D290iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0D070iNCP15#..GCC..B201308-201712

main52611-0D080iNSP150,151..GCC..C201402-201712

main52611-0D100iNSP150,151..GCC..A201801-202009

main52611-0D101iNSP151..5F..(D,R)..A202009-202207

CHILE SPEC

main52611-0D101iNSP151..5F..A202009-202207

LATIN AMERICA SPEC

main52611-0D101iNSP151..5F..A202009-202207

ECUADOR SPEC

main52611-0D101iNSP151..5F..A202009-202207

PERU SPEC

main52611-0D101iNSP151..5F..A202009-202207

MEXICO SPEC

main52611-0D101iNSP151..5F..A202009-202207

COSTA RICA SPEC

main52611-0D101iNSP150..5F..GCC..D..A202009-202108

main52611-0D110iNSP150,151..GCC..C201801-202009

main52611-0D130iNSP151..6F..H201807-201910

52618ABSORBER, FRONT BUMPER, LOWER

main52618-0D140iNSP151..6F..H201807-201910

5301RADIATOR GRILLE

→ Go to FIG 53-01

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-0D300iNCP15#,NSP150,151..(GCC,GEN,IDN,TH,VN)..B201304

main53112-0D310iNCP150,NSP151..MA201310-201812

main53112-0D320iNCP15#,NSP150,151..PH201307-201806

main53112-0D330iNCP150,NSP151..TAIW201404-201802

main53112-0D360iNCP15#,NSP150,151..C201312-201712

main53112-0D540iNSP151..(D,R)..A;NSP150..5F..GCC..R..A;NSP150..CVT..(D,R)..A;NSP150..LHD..5F..GEN..A201708-202207

main53112-0D550iNSP151..(D,R)..G201804-201908

main53112-0D560iNSP151..MA..(D,R)201901-202011

main53112-0D580iNSP151..(G,V)..G201804-201908

main53112-0D590iNSP151..(D,R)..F201803-202101

main53112-0D600iNSP151..V..F201803-202101

main53112-0D630iNSP150..D201807-201910

main53112-0D640iNSP151..D201807-201910

main53112-0D650iNSP151..G..A;NSP150..CVT..G..A201708-202207

main53112-0D680iNSP151..(D,R)..H201807-201910

main53112-0D690iNSP151..(G,V)..H201807-201910

main53112-0D740iNSP151..MA..G201901-202011

main53112-0D770iNSP150,151..R..C;NSP151..5F..D..C;NSP150..CVT..D..C201801-202207

main53112-0D780iNSP150,151..G..C201801-202207

main53112-0D870iNSP152201708-201910

main53112-0DA30iNSP151..MA..V201901-202011

main53112-0DA90iNSP150,151..(D,R)..E201808-201912

main53112-0DB00iNSP151..G..E201808-201912

main53112-0DB10iNSP150,151..I202003-202406

NO PAINT REQ.

main53112-0DB20iNSP152201911-202207

NO PAINT REQ.

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9016750063

main90167-50063

90178T0088

main90178-T0088

9017906349

main90179-06349

9018906193

main90189-06193

22 parts on this diagram · 4 diagrams in section
