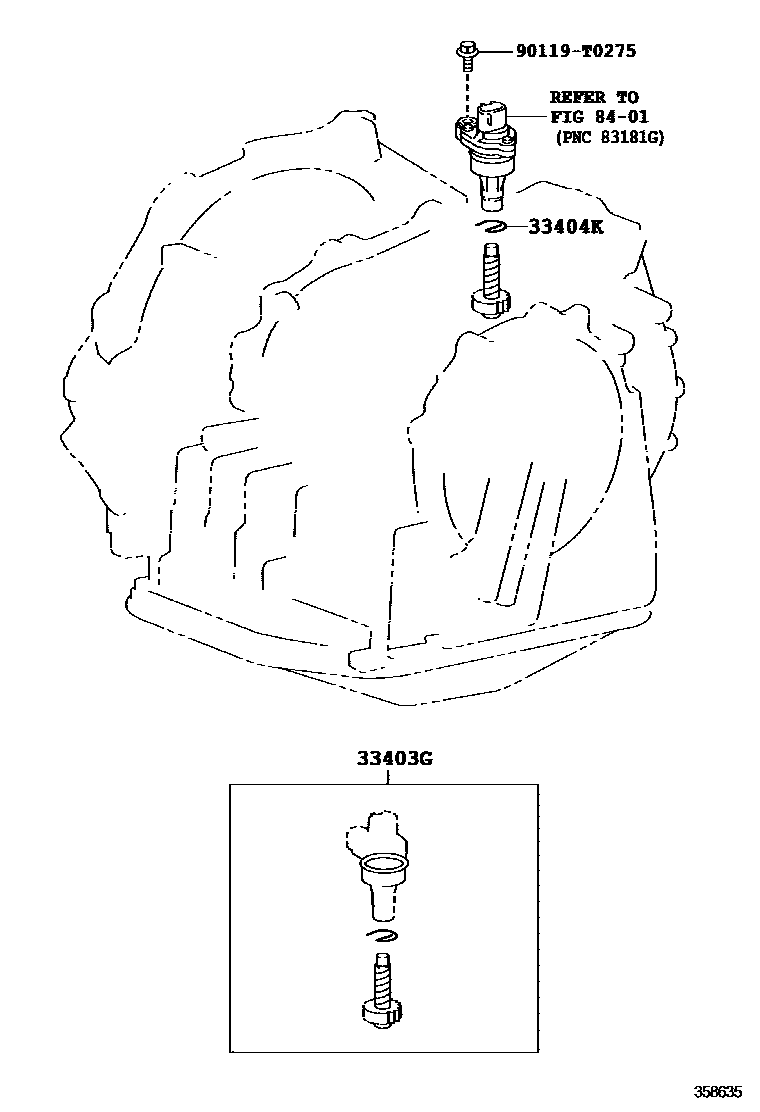

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29525iNCP150..4FC..TH..D201304-201603

N=21,MARK 21:25

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iNCP150..4FC..TH..D201304-201603

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119T0275

main90119-T0275

4 parts on this diagram · 1 diagram in section
