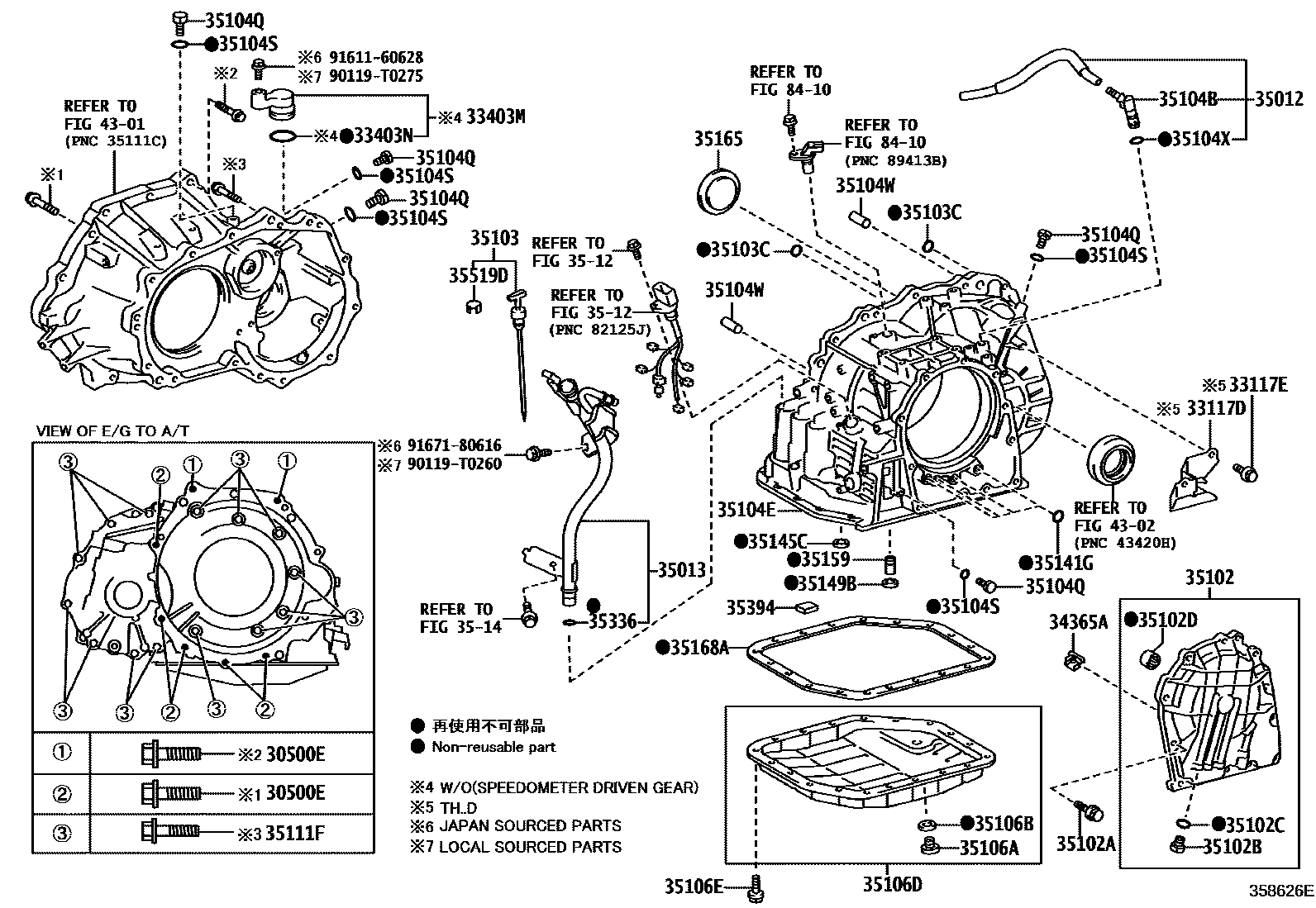

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U340E 0002 1U441E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90119-T0225iNCP151..4FC..B;NCP150..4FC..(GEN,MA)..D;NCP150..4FC..(GCC,GEN,IDN,MA,PH,TH,VN)..(G,R,V)..B201304-201608

*10-1.25PX45-30,(L)

main90119-T0225iNCP15#..4FC..C;NCP150..4FC..TH..D201304-201609

*10-1.25PX45-30

main91612-61045iNCP150..TAIW201404-201604

*10-1.25PX45-30

main91612-61045iNCP151..4FC..B;NCP150..4FC..(GEN,MA)..D;NCP150..4FC..(GCC,GEN,IDN,MA,PH,TH,VN)..(G,R,V)..B201304-201608

*10-1.25PX45-30,(J)

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-0D030iNCP150..4FC..TH..D201304-201603

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90119-T0070iNCP150..4FC..TH..D201304-201603

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-0D010iNCP150..4FC..(GEN,MA)..D;NCP150..4FC..(GCC,GEN,IDN,MA,PH,TH,VN)..(G,R,V)201304-201609

main33403-0D020iNCP151..4FC201307-201609

(L)

main33403-20230iNCP150..TAIW201404-201604

main33403-35230iNCP151..4FC201307-201609

(J)

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main90301-T0044iNCP150..4FC..(GEN,MA)..D;NCP150..4FC..(GCC,GEN,IDN,MA,PH,TH,VN)..(G,R,V)201304-201609

main96711-24018iNCP150..TAIW201404-201604

main96711-24030iNCP151..4FC201307-201609

34365ARETAINER, OUTER RACE

main34365-52012iNCP150..4FC201304-201609

main34365-52020iNCP151..4FC201307-201609

35012HOSE SUB-ASSY, TRANSMISSION BREATHER

main35012-12010iNCP150..4FC201304-201609

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-0D040iNCP150..4FC..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304-201608

main35013-0D050iNCP150..TAIW201404-201604

main35013-0D120iNCP151..4FC..B201307-201606

main35013-0D140iNCP150..4FC..C201312-201609

main35013-0D150iNCP151..4FC..C201402-201609

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-52020iNCP150..4FC201304-201609

main35102-52030iNCP151..4FC201307-201609

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08365iNCP150..4FC201304-201609

*8-1.25PX28-20

main90105-08375iNCP151..4FC201307-201609

*8-1.25PX25-25

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001iNCP15#..4FC201304-201609

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196iNCP15#..4FC201304-201609

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-14007iNCP150..4FC201304-201609

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-0D040iNCP150..4FC..(GCC,GEN,IDN,MA,PH,TH,VN)201304-201609

main35103-0D050iNCP150..TAIW201404-201604

main35103-0D120iNCP151..4FC201307-201609

35103CRING, O

main90301-06008iNCP150..4FC201304-201307

main90301-06024iNCP150..4FC201307-201609

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03156iNCP151..4FC201307-201609

main90930-03166iNCP150..4FC201304-201609

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-52032iNCP150..4FC201304-201609

main35104-52090iNCP151..4FC201307-201609

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iNCP150..4FC201304-201609

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iNCP151..4FC201304-201609

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017iNCP150..4FC201304-201609

main90250-10034iNCP151..4FC201307-201609

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iNCP150..4FC201304-201307

main90301-06021iNCP150..4FC201307-201609

main90301-08015iNCP151..4FC201307-201609

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iNCP151..4FC201307-201609

main90341-18016iNCP150..4FC201304-201506

main90341-18023iNCP150..4FC201507-201609

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iNCP151..4FC201307-201609

main90430-18008iNCP150..4FC201304-201609

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-52020iNCP150..4FC201304-201609

main35106-52030iNCP151..4FC201307-201609

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iNCP150..4FC201304-201609

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08071iNCP151..4FC201304-201609

*8-1.25PX30-25

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

3514OIL COOLER & TUBE (ATM)

→ Go to FIG 35-14

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-10018iNCP150..4FC201307-201609

main90301-10189iNCP150..4FC201304-201307

35145CGASKET, TRANSAXLE CASE

main35145-21010iNCP150..4FC201304-201609

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-12020iNCP151..4FC201307-201609

main35149-21010iNCP150..4FC201304-201609

35159GASKET, BRAKE DRUM

main35159-21010iNCP150..4FC201304-201609

main35159-52010iNCP151..4FC201307-201609

35165PLATE, TRANSMISSION CASE, NO.1

main35165-52010iNCP151..4FC201307-201609

main35165-52030iNCP150..4FC201304-201609

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-52010iNCP151..4FC201307-201609

main35168-52020iNCP150..4FC201304-201609

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iNCP15#..4FC201304-201609

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iNCP150..4FC201304-201609

main35394-48010iNCP151..4FC201307-201609

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iNCP151..4FC201307-201609

main35519-41010iNCP150..4FC201304-201609

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

90119T0260

main90119-T0260

90119T0275

main90119-T0275

9161160628

main91611-60628

9167180616

main91671-80616

44 parts on this diagram · 2 diagrams in section
