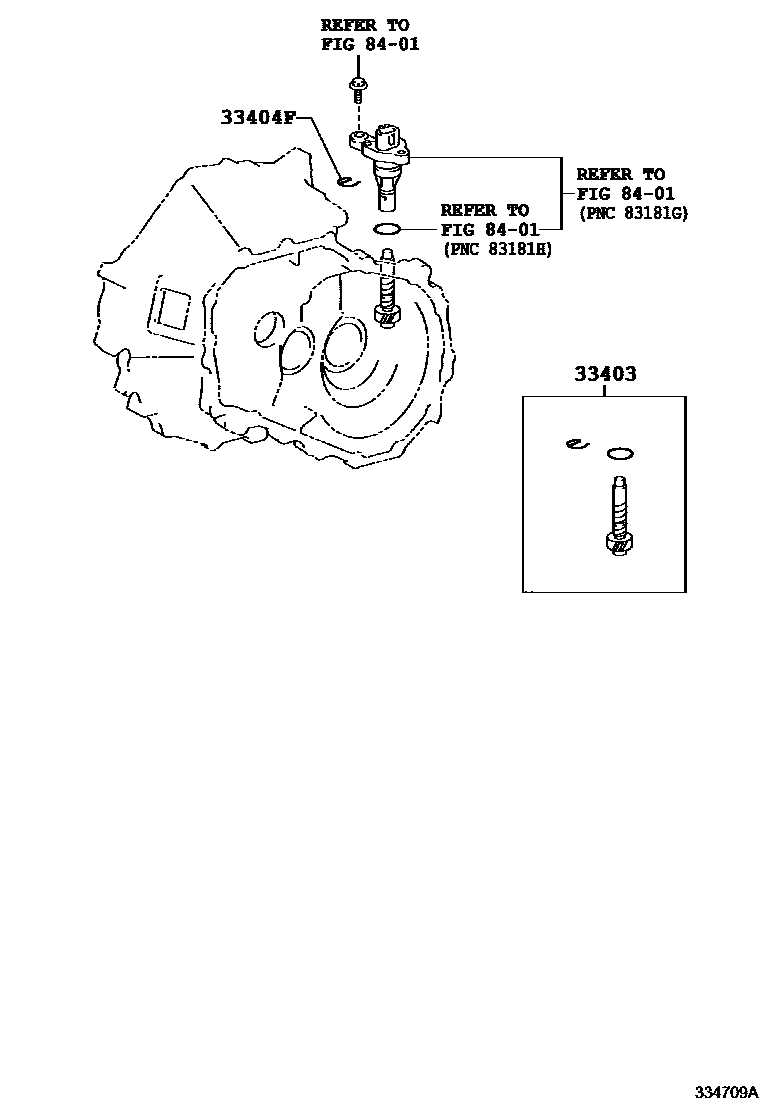

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19455iNCP15#..5F..(TH,VN)..D..B201304-201608

N=30,MARK 30:35

main33403-19465iNSP150..PH..D201304-201807

N=31,MARK 31:35

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iNSP150..PH..D201304-201807

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

3 parts on this diagram · 1 diagram in section
