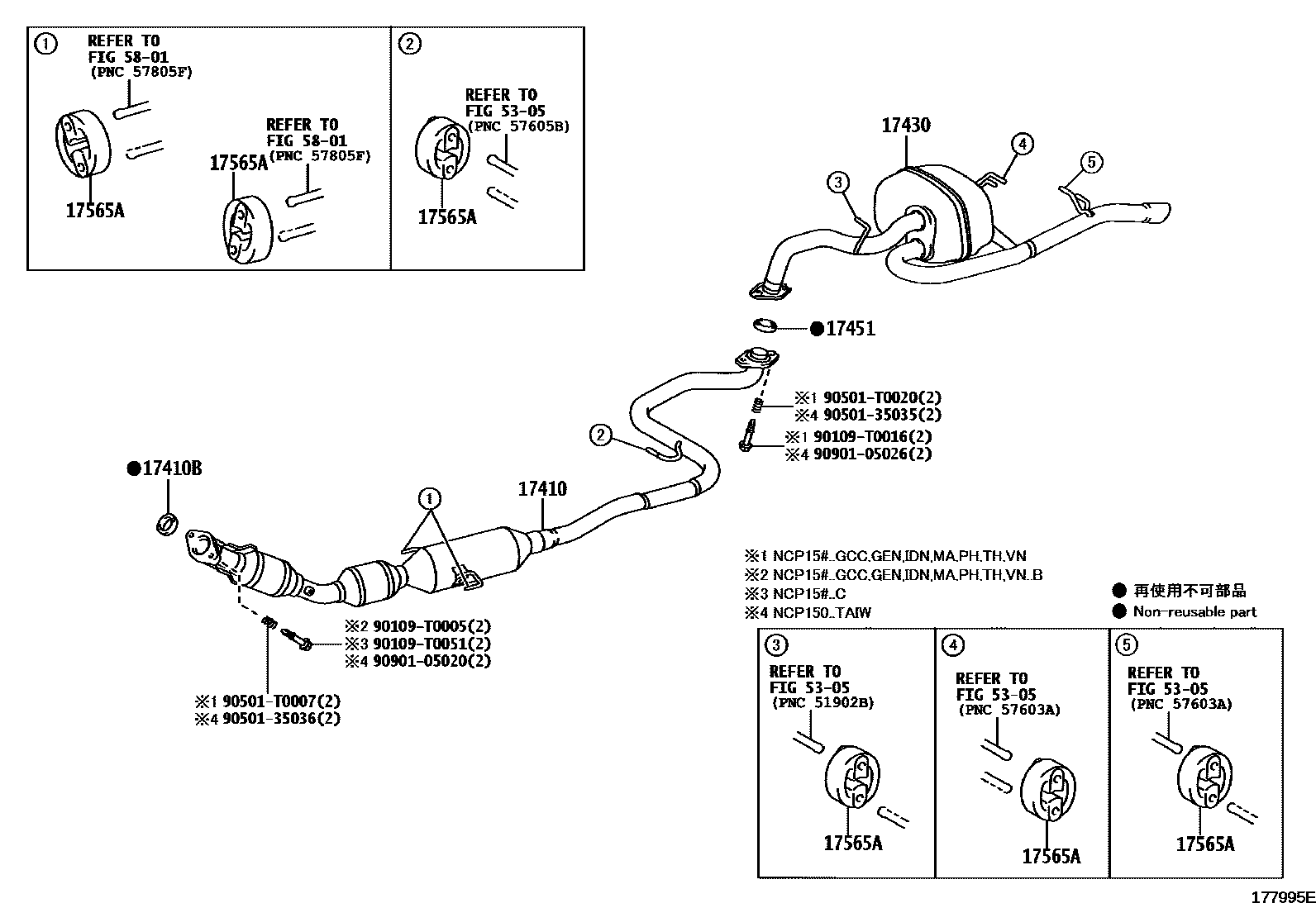

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
main17410-0Y581supersedes 17410-0Y481i1NRFE..NSP150..CVT..GEN;2NRFE..NSP151..LHD..GEN..A;1NRFE..NSP150..LHD..5F..GEN; 2NRFE..NSP151..RHD..GEN201710-202207
ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP)
main17410-0Y591i2NRFE..NSP151..5F..D..C;1NRFE..NSP150..CVT..D..C;1NRFE,2NRFE..NSP150,151..(G,R)..C201801-202207
BRUNEI SPEC
BRUNEI SPEC
CHILE SPEC
LATIN AMERICA SPEC&CHILE SPEC
LATIN AMERICA SPEC&CHILE SPEC
ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL
ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL
17410BGASKET, EXHAUST PIPE
main17451-0M020i2NRFE..NSP151..AGT,MA,PKN;2NRFE..NSP151..(GEN,PH,VN)..(D,E,H);1NRFE,2NRFBE,3NRFE..NSP15#..(BZ,PH,PKN,TH,VN)..(A,D,E,H,I)201708-202406
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17565ASUPPORT, EXHAUST PIPE, NO.4
main17565-0M040×6i2NRFE..NSP151..5F..D..C;1NRFE..NSP150..CVT..D..C;1NRFE,2NRFE..NSP150,151..(G,R)..C201801-202207
5305FLOOR SIDE MEMBER
5801FLOOR PAN & LOWER BACK PANEL
90109T0005
main90109-T0005
90109T0016
main90109-T0016
90109T0051
main90109-T0051
9050135035
main90501-35035
9050135036
main90501-35036
90501T0007
main90501-T0007
90501T0020
main90501-T0020
9090105020
main90901-05020
9090105026
main90901-05026
16 parts on this diagram · 9 diagrams in section
