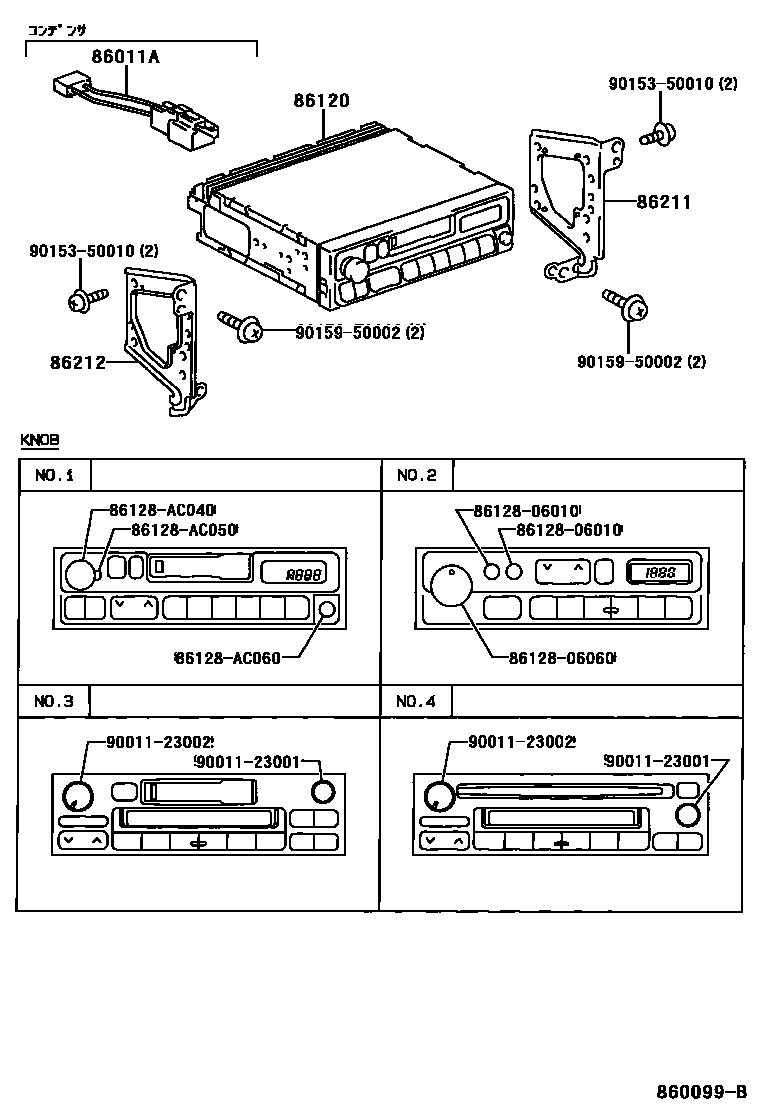

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011ACONDENSER, RADIO SETTING

main90980-04116iEL54..CP199712-199802

86120RECEIVER ASSY, RADIO

main86120-06050iEL54199508-199712

FUJITSU,ID=A11404,AM/FM ETR 4SP,NO.2

main86120-08010iEL54199802

FUJITSU TEN,ID=16408,NO.3

main86120-08020iEL54..CP199712-199802

FUJITSU TEN,ID=11801,NO.4

main86120-0W050iEL54199508-199712

DELCO,AM/FM ETR CST 4SP,NO.1

86211BRACKET, RADIO, NO.1

main86211-16260iEL54199508

86212BRACKET, RADIO, NO.2

main86212-16260iEL54199508

8612806010KNOB, RADIO RECEIVER

main86128-06010

8612806060KNOB, RADIO RECEIVER

main86128-06060

86128AC040KNOB, RADIO RECEIVER

main86128-AC040

86128AC050KNOB, RADIO RECEIVER

main86128-AC050

86128AC060KNOB, RADIO RECEIVER

main86128-AC060

9001123001

main90011-23001

9001123002

main90011-23002

9015350010

main90153-50010

9015950002

main90159-50002

13 parts on this diagram · 1 diagram in section
