WIRING & CLAMP

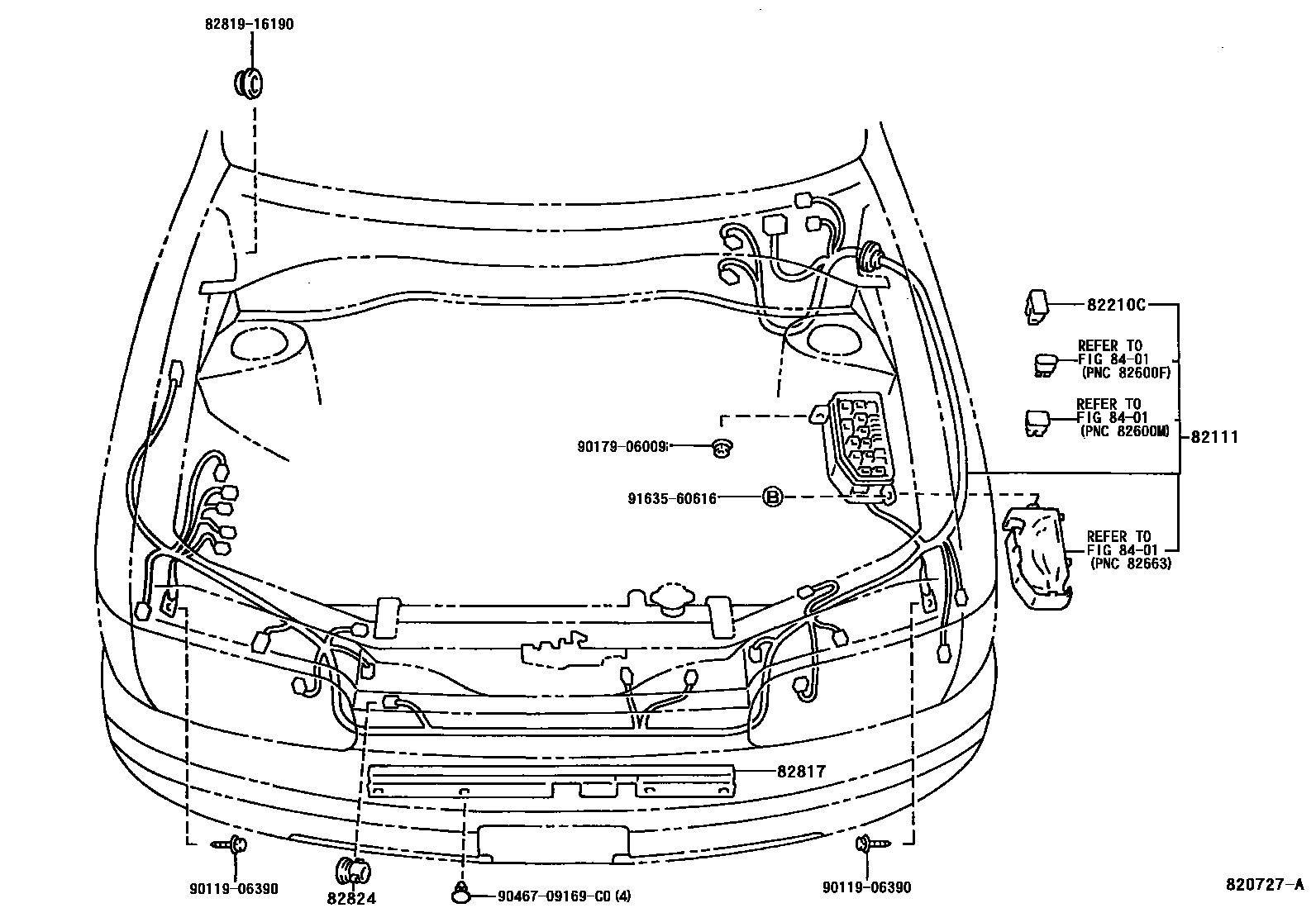

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-1G710i199508-199608
PUERTORICO SPEC
main82111-1G711i199608-199712
PUERTORICO SPEC
main82111-1G712i199712
PUERTORICO SPEC
main82111-1G740i199508-199608
main82111-1G741i199608-199712
main82111-1G742i199712-199802
main82111-1G750i199508-199608
W(ABS)
main82111-1G751i199712-199802
W(ABS)
main82111-1G752i199802
W(ABS)
main82111-1G760i199508-199608
W(CRUISE CONTOROL)
main82111-1G761i199712-199802
W(CRUISE CONTOROL)
main82111-1G762i199802
W(CRUISE CONTOROL)
main82111-1G770i199508-199608
W(ABS)
main82111-1G771i199608-199712
W(ABS)
main82111-1G772i199712
W(ABS)
main82111-1G780i199508-199608
W(CRUISE CONTOROL)
main82111-1G781i199608-199712
W(CRUISE CONTOROL)
main82111-1G782i199712
W(CRUISE CONTOROL)
main82111-1G830i199508-199608
main82111-1G831i199608-199712
main82111-1G832i199712
82210CFUSIBLE LINK
main90982-08189i199609-199712
40A,TERM.:FEMALE,GRN
main90982-08190i199508
60A,TERM.:FEMALE,YEL
main90982-08246i199508
100A,TERM.:MALE,BLUE
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-16480i199508-199802
82824CONNECTOR, WIRING HARNESS
main82824-20050i199508
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
8281916190GROMMET, WIRING HARNESS
main82819-16190
9011906390
main90119-06390
9017906009
main90179-06009
9046709169C0
main90467-09169C0
9163560616
main91635-60616

10 parts on this diagram · 9 diagrams in section
