ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-12010iEL44199402-199508

main85910-16030iEL44199104-199208

main85910-16040iEL44199208-199402

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iEL44199104-199208

main90987-02009iEL44199208-199508

89279COVER, ENGINE CONTROL COMPUTER

main89279-16080iEL44199104-199208

main89279-16100iEL44199208-199508

89420SENSOR ASSY, VACUUM

main89420-16030iEL44199104-199508

main89420-16060iEL44..USA199409-199508

CALIFORNIA SPEC

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iEL44199104-199508

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iEL44199104-199508

89427FSWITCH, TEMPERATURE

main89427-16080iEL44..ATM199104-199208

main89427-16100iEL44..ATM199208-199508

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22090iEL44199104-199508

89661COMPUTER, ENGINE CONTROL

main89661-16140iEL44..MTM..USA199104-199308

CALIFORNIA SPEC

main89661-16141iEL44..MTM..USA199308-199409

CALIFORNIA SPEC

main89661-16150iEL44..MTM199104-199308

main89661-16151iEL44..MTM199308-199508

main89661-16180iEL44..ATM..USA199104-199308

CALIFORNIA SPEC

main89661-16181iEL44..ATM..USA199308-199409

CALIFORNIA SPEC

main89661-16190iEL44..ATM199104-199308

main89661-16260iEL44..ATM199308-199508

main89661-16380iEL44..MTM..USA199409-199508

CALIFORNIA SPEC

main89661-16390iEL44..ATM..USA199409-199508

CALIFORNIA SPEC

9009080510

main90090-80510

9015960200

main90159-60200

9043012005

main90430-12005

9165140612

main91651-40612

91656A0616

main91656-A0616

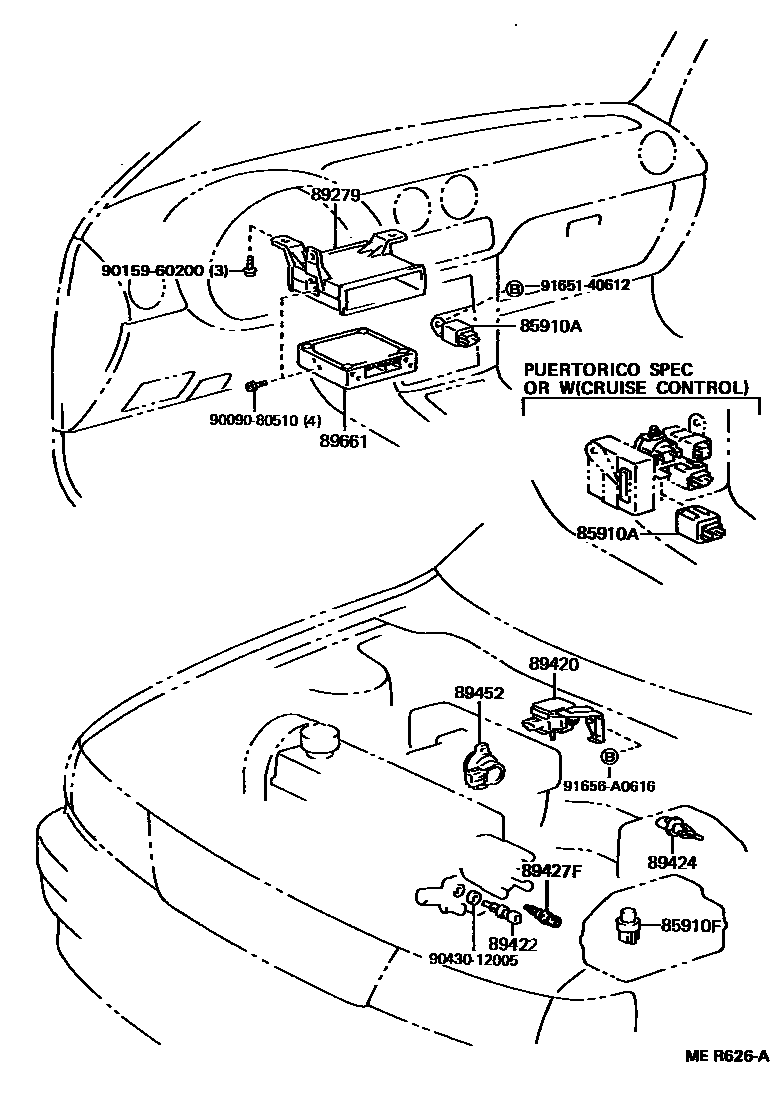

14 parts on this diagram · 1 diagram in section
